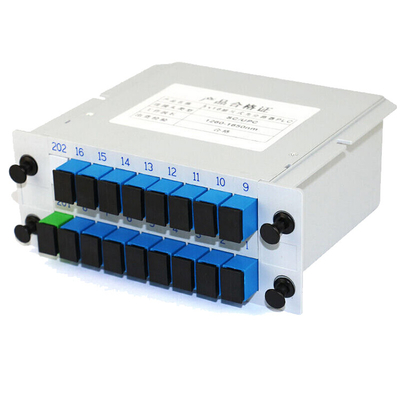

LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector

LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector
LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector
LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector

Large Image :  LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector

Product Details:
Place of Origin: China
Brand Name: DAMU
Certification: CE ROSH ISO9001
Model Number: DM-LGX
Payment & Shipping Terms:
Minimum Order Quantity: 50
Packaging Details: NORMAL PACKING
Delivery Time: 3-7
Payment Terms: T/T
Supply Ability: 50000/month

LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector

Description
Fiber Type: G.657A With 0.9mm Loose Tube,G657 Application: FTTH FTTB FTTX Network,CATV,Splitter,LAN,FTTH FTTB FTTX PON CATV
Product Name: 1x16 Lgx Cassette Type Fiber Optic Splitter Operating Temperature: -40℃ To 85℃
Connector: SC/APC Type: 1x16,APC,PLC Splitter
Material: ABS+PC Warranty: 3 Years
Color: White Fiber Length: 1m Or Customized
Return Loss: ≥50 DB Splitter: Splitter,1x8 Splitter As Well As 2x4,2x8,1x2 1x32 1x64,available 1x4
High Light:

LGX Plc Splitter Abs Box

,

Plc Splitter Abs Box 1x16

,

UPC fibre splitter box

Product Description

LGX Cassette Type Optical Fiber PLC Splitter Box 1*16 with SC/UPC Connector





1. Description:



Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating
wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector 0

2. Specification:



1x8 PLC Splitter Casette type,SM fiber, with SC/APC connector





Features

FTTH

Monitoring

CATV System

Network Protection

Access/PON Distribution



Insertion Loss



- Test Wavelength: 1310-1550 nm



- Required Value:P Grade



- Test can be performed on any channel



Return Loss

- Test Wavelength: 1310-1550 nm



- Required Value:>55dB



- Test can be performed on any channel





Directivity

- Test wavelength: 1310-1550 nm



- Required Value:>55 dB



On Dependent Loss-PDL

- Test Wavelength:1310-1550 nm



- Required Value:< 0.2 dB

ITEM 1X2 1X4 1X8 1X16 1X32 1X64 2X2 2X4 2X8 2X16 2X32
Operating Wavelength(nm) 1260~1650
Insertion Loss (dB) Max. ≤4.6 ≤7.5 ≤11.0 ≤14.0 ≤17.0 ≤21.0 ≤4.5 ≤8.0 ≤11.7 ≤14.7 17.9
Loss Uniformity (dB) Max. 0.6 ≤0.6 ≤0.8 ≤1.2 ≤1.5 ≤1.8 ≤0.8 ≤1.0 ≤1.0 ≤1.5 2.0
PDL (dB) Max. ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss (dB) UPC50dB;APC55dB
Directivity (dB) ≥55
Fiber Length (m) 1.2±0.1 , (Other Requirements Can Be Provide)
Fiber Type Corning SMF-28e, (Other Requirements Can Be Provide)
Operation Temperature -40~+85




































LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector 1LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector 2LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector 3
