Product Details:
|
| Fiber Type: | DX MM | Application: | FTTH FTTB FTTX Network,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments |
|---|---|---|---|
| Connector Type: | PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,ST SC LC FC,SC/Apc & SC/Upc,SC-SC LC-LC FC-FC ST-ST Or Hybrid | Length: | 1m 2m 3m Or Customized |
| Insertion Loss: | ≤0.3dB | Connector: | LC,SC,SC LC FC ST MU,anything,SC/APC |
| Material: | PVC,LSZH,PVC/LSZH | Product Name: | Fiber Optic Patch Cord |
| Item: | Optical Fiber Patch Cord | Quality Control: | 100% Test Before Shipping |
| Polish: | PC/UPC/APC | Real Factory: | Yes |
| High Light: | MTP Mpo Fiber Cable,LSZH Mpo Patch Cord,Fast Ethernet Mpo Patch Cord |
||
| Name | OM3 MPO / MTP Fiber Optic Loopback | Frruel End-face | UPC / APC |
|---|---|---|---|
| Fiber Type | SM / MM | Cable OD | 3.0MM |
| Material | PVC LSZH OFNR OFNP | ||
| High Light |
OM3 MPO MTP Fiber,LSZH MTP MPO Fiber,OM3 Fiber Optic Loopback |
||

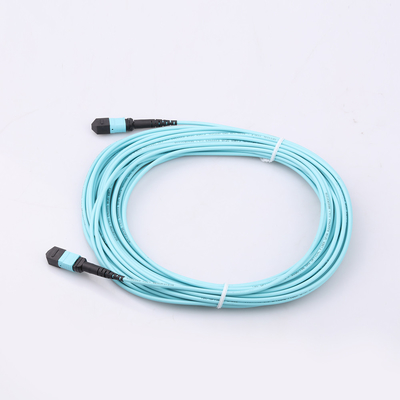

PVC LSZH OM3 MPO MTP Fiber Optic Loopback With Low Insertion Loss
Description:
MTP/ MPO Fiber Loopbacks is designed to provide a media of return patch for a fiber optic signal.
Typically it is used for fiber optic testing applications or network restorations.
For the testing applications, the loopback signal is used for diagnosing a problem.
Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.
Feature:
Compact design
Compatible with Fast Ethernet, Fiber Channel, ATM, and Gigabit Ethernet
Short wavelength devices
Application
Equipment interconnection
Device pig-tailling
Premise networks
Patch panel applications
Communications connections
LoopBack for network components testing
Specification:
| Insertion loss | Singlemode | PC≤ 0.3dB | UPC≤ 0.2dB | APC ≤ 0.3dB |
| Multimode | PC≤ 0.5dB | UPC≤ 0.3dB | APC ≤ 0.3dB | |
| Return loss | Singlemode | PC≥ 50dB | UPC≥ 50dB | APC ≥ 60dB |
| Multimode | PC≥ 25dB | UPC≥ 45dB | APC ≥ 50dB | |
| Repeatability | ≤ 0.1db | |||
| Changeability | ≤ 0.2dB | |||
| Working temperature | -40 to +8o Celsius | |||
| Durability | 1000 times | |||
| Sustain tension | ≥ 100N | |||
| Fiber | 9/125um , 50/125um, 62.5/125um, OM3 etc. | |||
| Diameter | 0.9mm 2.0mm 3.0mm, etc. | |||
| Cable material | PVC | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores, etc. | |||
