OM3 Patch Cord Lc Lc Multimode 8 Core Multi Mode Simplex Jumper 3.0mm

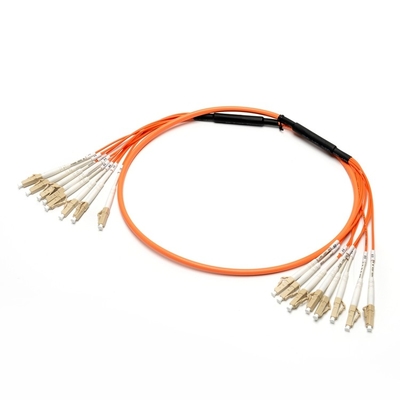

Large Image : OM3 Patch Cord Lc Lc Multimode 8 Core Multi Mode Simplex Jumper 3.0mm

Product Details:

Place of Origin:	China
Brand Name:	DAMU
Certification:	CE ROSH ISO9001
Model Number:	DM-PC-LC

Payment & Shipping Terms:

Minimum Order Quantity:	50
Packaging Details:	NORMAL PACKING
Delivery Time:	5-8
Payment Terms:	T/T
Supply Ability:	500000/month

Contact Now

OM3 Patch Cord Lc Lc Multimode 8 Core Multi Mode Simplex Jumper 3.0mm

Description

Fiber Type:	Multi Mode	Application:	FTTH FTTB FTTX Network,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments
Connector Type:	PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,ST SC LC FC,SC/Apc & SC/Upc,SC-SC LC-LC FC-FC ST-ST Or Hybrid	Length:	1m 2m 3m Or Customized
Insertion Loss:	≤0.3dB	Connector:	LC,SC,SC LC FC ST MU,anything,SC/APC
Material:	PVC,LSZH,PVC/LSZH	Product Name:	Fiber Optic Patch Cord
Item:	Optical Fiber Patch Cord	Quality Control:	100% Test Before Shipping
Polish:	PC/UPC/APC	Real Factory:	Yes
High Light:	Patch Cord Lc Lc Multimode 8 Core , Simplex Patch Cord Lc Lc Multimode , lc lc om3 patch cord 3.0mm

Product Description

Fiber Optic Patch Cord LC-LC OM3 8 Core Multi Mode Simplex Optica Fiber Jumper 3.0mm

Product Parameters

Origin Country:	China	Brand:	DAMU or OEM
Type:	LC-LC (SC FC LC ST)	Core:	8
Mode:	Multi mode	Outer Diameter:	0.9mm / 2.0mm / 3.0mm
Opreation Temperaturte:	-40℃ ~+75℃	Wavelength:	850nm / 1310nm
Insertion Loss:	PC≤0.20dB UPC≤0.20dB APC≤0.30dB / PC≤0.30dB	Return Loss:	PC≥40dB UPC≥50dB APC≥60dB / NA
Application	Telecom;CATV;LAN;FTTX	Length:	Customized

LC patch cord / pigtail series
Cable outer diameter	φ 0.9mm / φ 2.0mm / φ 3.0mm
Operating environment	-40℃ ~+75℃
Optic fiber mode	Single mode	Multimode
Insertion loss	PC≤0.2dB UPC≤0.2dB APC≤0.3dB	PC≤0.3dB
Return loss	PC≥40dB UPC≥50dB APC≥60dB	NA
Surface parameters	Radius of curvaturte: 10-25mm(PC/UPC) / 5-12mm(APC) Vertex offset: 0-50μm Fiber height: -100~-100nm The angle of APC: 7.7°-8.3°	NA
Features	Precision lock mechanical structure,high alignment accuracy Tensile structure design Using UL94V-0 plastic matreials Products all to RoHS Standard

Applications

Long Distance Optical Communication.

Optical Testing System.

LAN and WAN.

CATV System.

Digital Communication System.

Features

Low insertion loss and high return loss

Various cable diameters available: Φ0.9, Φ2.0, Φ3.0mm

PC, UPC, APC polishing available

High quality ferrule

High temperature stability.

Excellent mechanical capability

Patch cords accord with ISO9001, ROHS

Emergency lock mechanical structure, High alignment accuracy

Tensile strength structure design

Using UL94V-0 plastic material

OM3 Patch Cord Lc Lc Multimode 8 Core Multi Mode Simplex Jumper 3.0mm 0

OM3 Patch Cord Lc Lc Multimode 8 Core Multi Mode Simplex Jumper 3.0mm 4
