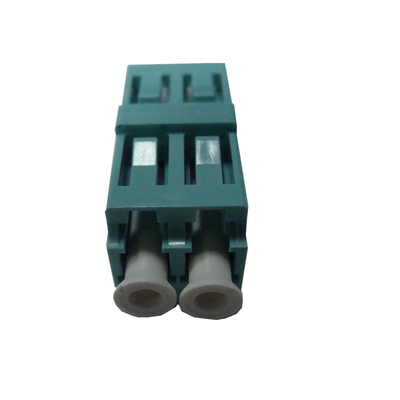

Product Details:
|
| Product Name: | Fiber Optic Adapter | Type: | Simplex |
|---|---|---|---|
| Material: | PVC/metal | Connector Type: | LC OM3 Adapter |
| Warranty: | 3 Years | Application: | FTTH FTTB FTTX Network,indoor/outdoor,Network,Telecommunication/Fiber Optic CATV/Multimedia |
| Housing Material: | Metal Or Plastic Housing | ||
| High Light: | OM3 Fiber Optic Cable Adapter,LC Fiber Optic Cable Adapter,Ceramic Sleeve fiber optic adapter |
||
Fiber Adapter (also known as flange, coupling) is a fiber optic connector for connection components, the product is very variety, including FC, SC, ST, LC, MTRJ, as well as carry out the transfer between each other such as: ST-SC, FC-ST, it's widely used in optical distribution frame (ODF), fiber-optic communications equipment, instrumentation, the feature is stable and reliable.
Single mode adapters are with Ceramic sleeve while multimode fiber adapters are with bronze sleeve.
Application:
Local area networks
Wide area networks
Data processing networks
CATV
Telecom networks
Optical test equipments
Parts &Material:
| Parts | Material | Remarks |
| Sleeve | Zirconia, PB | |
| Housing | PC | Flammability UL94 V-0 |
| Dust cap | PVC | Flammability UL94 V-0 |
| Clip | stailess steel |
Optical Performance:
| Item | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical:
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
Order Information:
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
