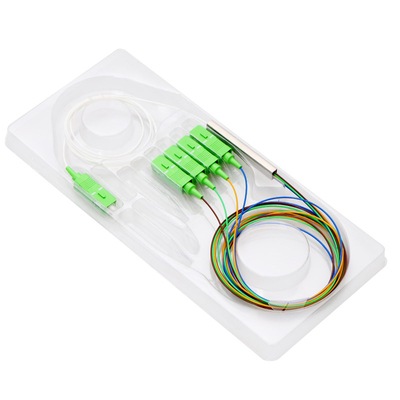

4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box

4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box
4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box
4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box 4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box 4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box 4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box

Large Image :  4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box

Product Details:
Place of Origin: China
Brand Name: DAMU
Certification: CE ROSH ISO9001
Model Number: DM-PS-1*4SCAPC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: NORMAL PACKING
Delivery Time: 10-15Days
Payment Terms: T/T
Supply Ability: 500000pcs/month

4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box

Description
Place Of Origin: CHINA Brand Name: DAMU
Certification: ISO9001,CE,FCC,ROHS Fiber Type: G652D/G657A
Application: FTTH FTTB FTTX Network Operating Temperature: -40℃ To 85℃
Connector: SC/APC/UPC Warranty: 3 Years
Fiber Length: 1m Or Customized Return Loss: APC≥60dB
Cable Diameter: 0.9mm
High Light:

96 Count Fiber Optic Cable

,

GCYFY Fiber Optic Cable

,

DAMU Outdoor Fiber Patch Cable

Product Details
Connector Type SC,FC,LC,ST Ferrule End-face PC, UPC,APC
Fiber Type G652D G657A Fiber Mode SM MM
Package Steel Tube, ABS Black Box Structure 1*2/1*4/1*8/1*16/1*32/1*64
High Light

fiber optic coupler

,

fiber optic plc splitter

Specification:


Table 1 – 1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS



Table 2 – 2×N PLC Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS

Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector
  3. Product Description





    4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 Cable 0.9mm Steel TubeFor Terminal Box



    Description:



    Fiber Splitter is one of the most important passive devices in the optical fiber link.

    PLC Splitter is optical fiber tandem device with many input terminals and many output terminals, Especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.



    Feature:



    Good high temperature low temperature performance

    Convenient engineering applications

    Fine polarization

    Wide scope wavelength

    Tight and fine structure
    Excellent parameters on IL & RL

    High reliability and directivity

    Non-sensitive wavelength



    Application:



    CATV network
    LAN, WAN and MAN
    Testing equipments

    Fiber optic communication system
    FTTX access network based on PON structure
    Local loop and passive optical network (PON)

Product Picture:

4 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box 04 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box 14 Way Fiber Optic Splitter 1*4 Sc Apc Plc Splitter G657A1 0.9mm Cable Steel TubeFor Terminal Box 2
