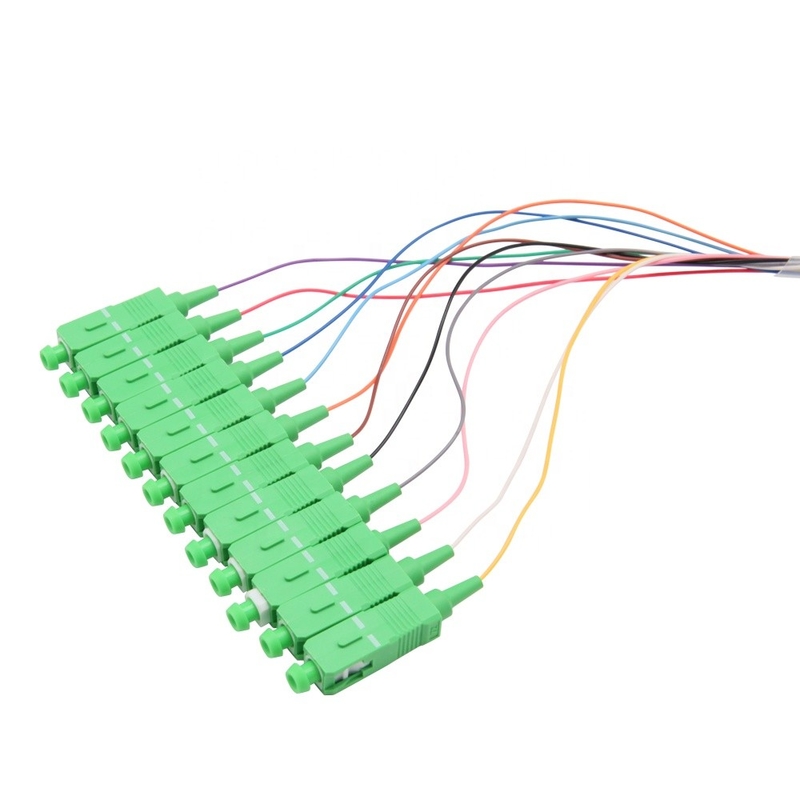

1m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc

1m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc
1m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc 1m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc 1m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc 1m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc

Large Image :  1m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc

Product Details:
Place of Origin: China
Brand Name: DAMU
Certification: CE ROSH ISO9001
Model Number: DM-SCAPC-pigtail
Payment & Shipping Terms:
Minimum Order Quantity: 50
Packaging Details: NORMAL PACKING
Delivery Time: 5-8
Payment Terms: T/T
Supply Ability: 500000/month

1m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc

Description
Fiber Type: G652D/G657A1/G657A2 (SM) Application: FTTH FTTB FTTX Network
Fibre Mode: OS2 OM1 OM2 OM3 OM4 Polish Type: UPC APC
Fiber Diameter: 9/125um 50/125um 62.5/125um Cable Jacket: PVC/LSZH/Plenum
Connector Type: SC FC ST LC MU MTRJ Cable Length: 1/1.5/2/3/5/10 Or Customized
High Light:

1m Fiber Optic Pigtails

,

Fiber Optic Pigtails Simplex

,

lc fiber pigtail Multimode



12 core 1m simplex duplex singlemode multimode mm sm om3 om4 optical patch cord pigtails st fc lc sc apc upc optic fiber
Our optical fiber patch cord (fiber jumper) is a length of fiber cabling fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end. Fiber jumpers also come in hybrid varieties with one type of connector on one end and another type of connector on the other. Jumpers are used in the same manner as patch cords, to connect end devices or network hardware to the structured cabling system.



Features

High dense spaces
Ceramic ferrules connectors
Half the size of standard connector
Low insertion loss,high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
100% Insertion,Return Loss, End face and Interference inspection



Product Description



Product Name

ftth fiber optic pigtail

Connector

SC FC LC ST MU E2000 MT-RJ

Polishing

SM/UPC

MM/PC

SM/APC

Insertion Loss(max)

≤0.30dB

≤0.25dB

≤0.30dB

Return Loss(min)

≥50 dB

≥35 dB

≥60 dB

Tensile Strength

>6N

Durability

<0.20 dB typical change 1000 matings

Repeatability

≤0.1dB

Storage , Operating Temperature [°C]

-40~+85

Geometric Specification (For special request)



PC End-face

APC End-face

Radius of Curvature

SC/FC/ST

10~25 mm

5~12 mm

LC/MU

7~25 mm

5~15 mm

Apex Offset

≤50 um

Fiber Spherical Height

+/- 50 nm

Angular Offset

——

8°± 0.2°

1m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc 01m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc 11m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc 21m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc 31m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc 41m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc 5
