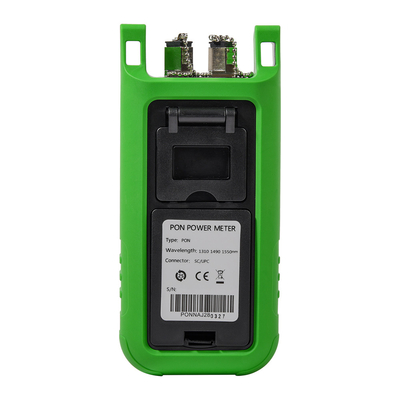

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter

Large Image :  FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter

Product Details:
Place of Origin: China
Brand Name: DAMU
Model Number: PON METER
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $70-90/PCS
Delivery Time: 3-5days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS per day
Contact Now

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter

Description
Material: ABS Shell Protect Product Name: Opn Power Meter
Application: FTTH FTTB FTTX Network Weight: 300g
Color: Green Wavelength: 1310 1490 1550nm
Connector: Sc/APC
High Light:

Fiber Optic Tools OPM

,

PON OPM Fiber Optic Tools

,

Compact PON Power Meter

Suitable FTTH PON OPM Network 3 wavelengths 1310 1490 1550nm compact Pon Power Meter

PON Optical Power Meter





Optical Pon Power Meter Fiber Test Tools
* Themeter test threshold can be set through the management software
* Automaticshutdown (can be cancelled)
* Userscan test 1490 in the PON network at the same time nm, 1550nm, 1310nm three wavelengths
* Simultaneouslymeasure and display different PON architectures, data and video signals
* Theinstrument provides five sets of thresholds to choose from, with pass, warning, and fail modes
* Manualcalibration

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter 0

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter 1FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter 2FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter 3

Model
PON
Measuring wavelength
1310nm
1490nm
1550nm
Sensor Type
InGaAS
Linearity
±0.2dB@1550nm≥-40dBm
Isolation
With filtering function
1490nm Wavelength＞40dB
1310nm Wavelength＞40dB
1310nm Wavelength＞40dB
1550nm Wavelength＞40dB
1550nm Wavelength＞30dB
1490nm Wavelength＞30dB
Testing range
-40dBm～+16dBm
-50dBm～+16dBm
-50dBm～+23dBm
Insertion loss in penetration mode (dB)
Less than 1.5dB
Measurable optical frequency broadband
1260～1360
1480～1500
1539～1565
Inherent uncertainty
0.5dB±1nW@1550nm
Display resolution
0.01dB
Threshold setting
5 groups are set by the host computer
Calibration wavelength
1310nm/1490nm/1550nm
Data storage
900 groups
Operating temperature
-10℃～+50℃
Relative humidity
0%～95%RH
Interface type
SC/UPC(Other types can be customized)
Power supply
3 AA batteries

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter 4FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter 5

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter 6FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter 7FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter 8
