Product Details:
|
| Fiber: | G675A OR G625D | Length: | 1.0m (±0.1) Or Customer Specified |
|---|---|---|---|
| Packing: | Plastic Bag | Fiber Dia: | 0.9mm Or 250um |
| Port: | 1in 8 Out | CONNECTOR: | SCUPC |
| High Light: | SCUPC 1X8 Fiber Optical Splitter,PLC Fiber Optical Splitter,250um Fiber Optic Splitter |
||

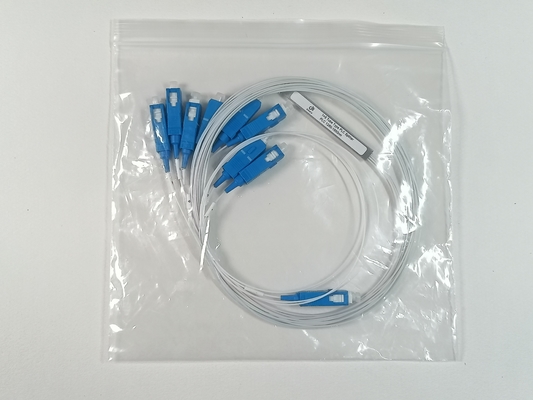

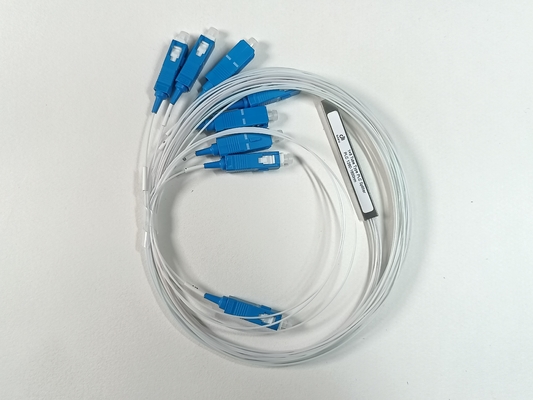

SA connector steel tube gpon 1x16 1*16 mini plc splitter
PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. Wolon provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features
Technical Data:
Split Ratio:1XN
Connector: SC,FC,LC,ST
There are more choice of Split Ratio
| Technical Test Data | ||||||||||
| Split Ratio | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 |
| Wavelength | 1260~1650 (nm) | |||||||||
| Insertion Loss(dB) | ≤3.6 | ≤7.2 | ≤10.2 | ≤13.5 | ≤16.2 | ≤3.8 | ≤7.5 | ≤10.7 | ≤14 | ≤17 |
| Uniformity(dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.2 | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
| Directivity(dB) | ≥55 | |||||||||
| Operating temperature | -40~+85 | |||||||||
