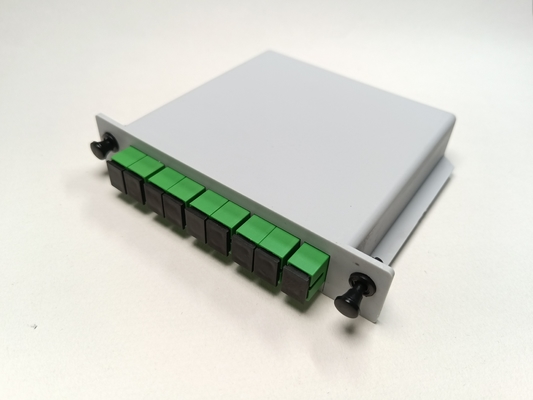

Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter

Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter
Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter

Large Image :  Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter

Product Details:
Place of Origin: CHINA
Brand Name: DAMU
Model Number: LGX SCAPC 1X8
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Packaging Details: blister packing,outside carton
Supply Ability: 20000pcs/day
Contact Now

Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter

Description
Fiber: G675A OR G625D Length: 1.0m (±0.1) Or Customer Specified
Packing: Plastic Bag Cable Dia: 0.9/2.0/3.0mm
Port: 8 CONNECTOR: SCAPC
High Light:

DAMU Optical PLC Splitter

,

SCAPC Optic Fiber Splitter

,

3.0mm Optic Fiber Splitter

SCAPC optic fiber splitter 1X8 Cassette Card Insertion optical PLC Splitter 1:8 Port




Product Description



SA connector steel tube gpon 1x16 1*16 mini plc splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.


Specification
item
value
Model Number
1x8 SCAPC
Type
FTTx Solutions
Place of Origin
China

SHENZHEN
Brand Name
DAMU
Port
1x8
Input Pigtall Style
0.9MM
Input Connector
SC,LC,FC,ST
Output Pigtll Style
0.9MM
Fiber Length
0.5m,1m,1.5m,2m,3m,4m
Output Connctor
SC,LC,FC,ST
Application
FTTX Systems
No. of Fiber
8
Use
FTTH





MAIN SPECIFICATION
Parameter
1x2
1x4
1x8
1x16
1x32
Operating Wavelength (nm)
1260~1650
Fiber Type
G657A, G652D or Customer Specified
Insertion Loss (dB)(S/P Grade)
4.2/4.0
7.5/7.2
10.7/10.4
13.9/13.7
17.1/16.7
Return Loss (dB)(S/P Grade)
50/55
50/55
50/55
50/55
50/55
Wavelength Dependent Loss (dB)
0.3
0.3
0.3
0.5
0.5
Operating Temperature (°C)
-40~85
Storage Temperature (°C)
-40~85
Packaging Dimension (mm)
40*4*4
40*4*4
40*4*4
40*4*4
50*7*4
Note: The above parameter is for PLC splitter with connectors. If w/o connector, insertion loss will reduce by 0.2dB.











Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter 0Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter 1Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter 2Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter 3Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter 4Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter 5Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter 6Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter 7

Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter 8

Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter 9
