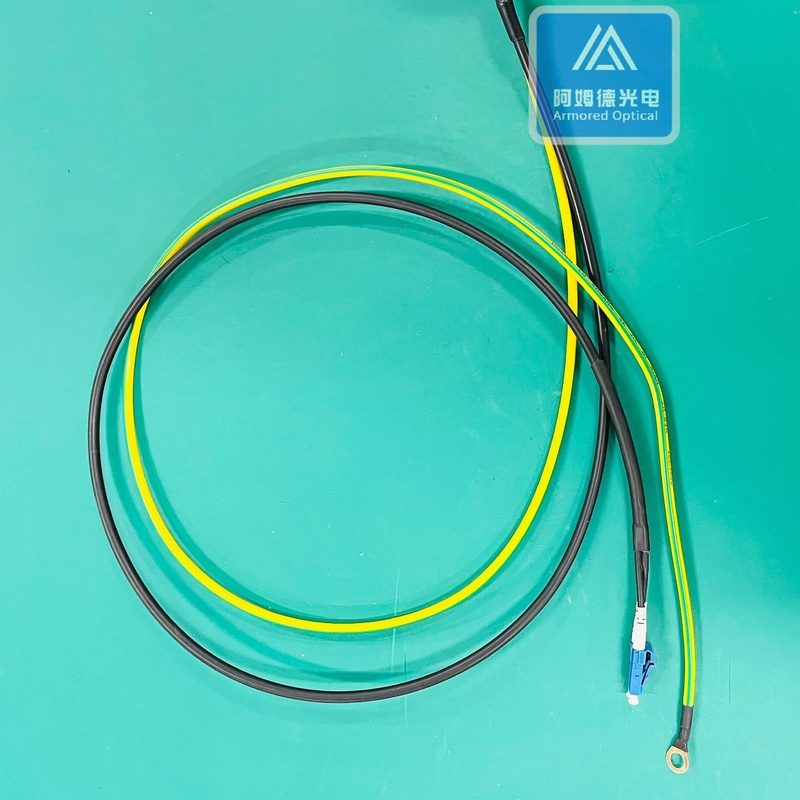

Duplex Armored Fiber Optical Cable Lead with Grounding Wire 5.0 Black LSZH
-
Name2 Cores Armored Patch Cord
-
Fiber ModeSM G657A2
-
Jacket MaterialLSZH
-
ColorBlack
-
Cable Length50m, ( 70m, 100m, Etc. It Can Be Customized)
-
ApplicationOutdoor
-
FeatureRodent Resisitant
-
Flame RatingIEC60332-1-2
-
Grounding WireYes
-
Place of OriginCHINA
-
Brand NameJIANGSU ARMORED
-
CertificationROHS
-
Model Number2F-B6A2-5.0-LSZH-SC-LC-50M
-
Minimum Order Quantity1000M Cable
-
PriceTo Be Advised
-
Packaging DetailsCarton and Pallet. By Sea or Air shipment
-
Delivery Time3 Working Weeks
-
Supply Ability1000pcs Connector Per Day

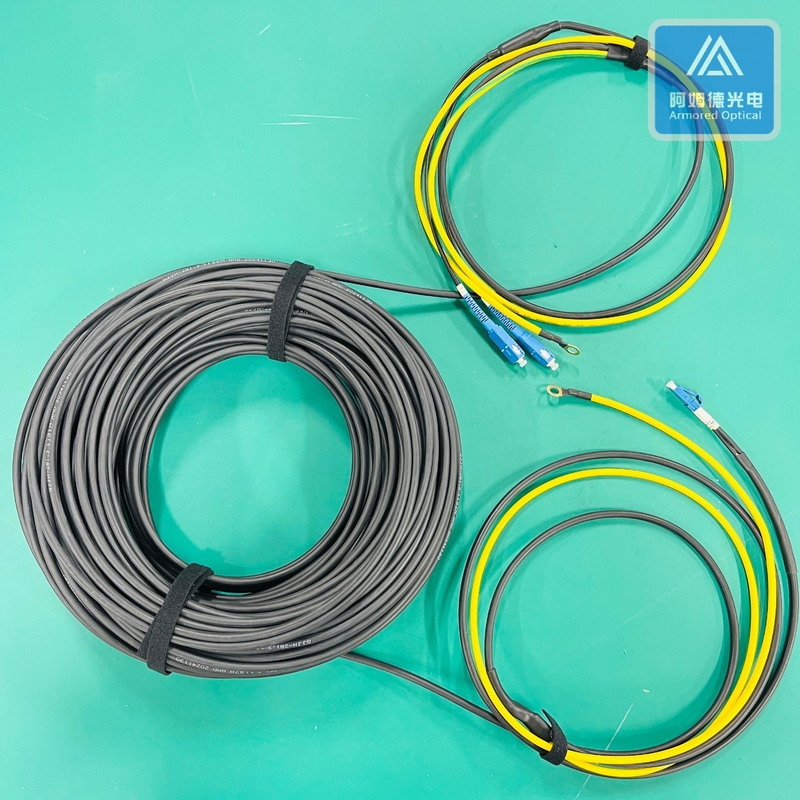

Duplex Armored Fiber Optical Cable Lead with Grounding Wire 5.0 Black LSZH
Duplex SM Armored Fiber Optical Cable Lead with Grounding Wire 5.0 Black LSZH with SC and LC connector
Patch Jumper, Armored Fiber Cable Assembly, Fiber Assembly.
Parameter
| Item | 2 Cores Armored Patch Cord |
| Fiber | G657A2 |
| Cable Diameter | 5.0 mm (7.0mm or 5.0mm are available) |
| Cable Jacket | Black LSZH |
| Length | 10M, 30M, 50M, 70M,.etc. |
| Insert Loss | ＜ 0.30dB |
| Return Loss | ≥50dB (UPC) |
| Temperature | -40℃~80℃ |
| Fan-out Cable | Customized |
|
Cable Grade
|
IEC60332-1-2, Comply with ROHS |
Compare with common patch cord, armored patch cords have several advantages as following,
Physical durability
With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites. Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious.
Versatility
Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC), making them adaptable to different networking and communications equipment.
Flexibility
Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.
Our products are sold all over the world, you can rest assured.
