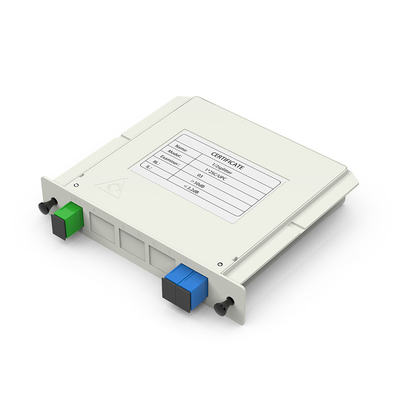

SC APC UPC Fiber Optic Splitter , Cassette Type LGX Box PLC Splitter

Description

Fiber Type:	G.657A With 0.9mm Loose Tube,G657	Application:	FTTH FTTB FTTX Network,CATV,Splitter,LAN,FTTH FTTB FTTX PON CATV
Product Name:	1x2 Lgx Cassette Type Fiber Optic Splitter	Operating Temperature:	-40℃ To 85℃
Connector:	SC/APC/UPC	Type:	1x2
Material:	ABS+PC	Warranty:	3 Years
Color:	White	Fiber Length:	1m Or Customized
Return Loss:	≥50 DB	Splitter:	Splitter,1x8 Splitter As Well As 2x4,2x8,1x2 1x32 1x64,available 1x4
High Light:	UPC Fiber Optic Splitter , APC LGX Box PLC Splitter , Cassette Type LGX Box PLC Splitter

Product Description

LGX Cassette Type Optical Fiber PLC Splitter Box SC APC UPC 1*2 1*4 1*8 1*16 1*32 1*64

1. Description:

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating
wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

2. Specification:

Parameter	Specification
Operating Wavelength (nm)	1260 ~ 1650
Type	1x4	1x8	1x16	2x4	2x8	2x16	1x32	2x32	1x64
Insertion Loss (dB) Max. *	<7.3	<10.5	<13.5	<7.6	<11.2	<14.5	<16.2	<18.2	<20.5
Uniformity (dB) Max.*	<0.8	<1.0	<1.5	<1.0	<1.5	<2.0	<2.0	<2.5	<2.5
PDL(dB)Max.*	<0.2	<0.2	<0.3	<0.3	<0.3	<0.4	<0.3	<0.4	<0.3
Directivity (dB)	≥55
Return Loss (dB)	UPC ≥55 APC ≥60
Operating Temperature (°C)	-5~ +75
Storage Temperature (°C)	-40 ~ +85
Fiber length	1m or custom length
Fiber Type	Corning SMF-28e fiber
Connector Type	Custom specified
Power Handling (mW)	300

Table 1 – 1×N PLC Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(Min/Max)	3.8/4.0	7.2/7.4	10.5/10.7	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.6	0.6	0.8	1.2	1.5	2.5
Return Loss (dB)	55	55	55	55	55	55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Operating Temperature (℃)	-40～+85
Storage Temperature (℃))	-40～+85
Operating Humidity	5% ~ 85% RH
Storage Humidity	5% ~ 85% RH
Device Dimension (mm) (L×W×H)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Mini-Module Dimension (mm) (L×W×H)	50×7×4	50×7×4	60×7×4	60×12×4	80×20×6	N/A

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(Min/Max)	3.9/4.2	7.5/7.8	11.2/11.5	14.2/14.5	17.2/17.7	21.0/21.5
Loss Uniformity (dB)	0.8	1.5	1.5	1.8	2.0	2.5
Return Loss (dB)	55	55	55	55	55	55
Polarization Dependent Loss(dB)	0.2	0.2	0.4	0.4	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Operating Temperature(℃))	-40～+85
Storage Temperature (℃))	-40～+85
Operating Humidity	5% ~ 85% RH
Storage Humidity	5% ~ 85% RH
Device Dimension (mm) (L×W×H)	40×4×4	50×4×4	50×4×4	50×7×4	60×7×4	60×12×4
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Mini-Module Dimension (mm) (L×W×H)	60×7×4	60×7×4	60×7×4	60×12×4	80×20×6	N/A

3. Feature:

* Low Insertion loss

* Low PDL

* Compact Design

* Good channel-to-channel uniformity

* Wide Operating Wavelength: From 1260nm to 1650nm

* Wide Operating Temperature: From -40℃to 85℃

*High Reliability and Stability

4. Application:

* Low Insertion Loss.

* Fiber to home(FTTH)

* Passive Optical Networks(PON)

* Local Areal Networks(LAN)

* Fiber communication systems
