Product Details:
|
| Fiber Type: | MM | Application: | FTTH FTTB FTTX Network,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments |
|---|---|---|---|
| Connector Type: | PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,ST SC LC FC,SC/Apc & SC/Upc,SC-SC LC-LC FC-FC ST-ST Or Hybrid | Length: | 1m 2m 3m Or Customized |
| Insertion Loss: | ≤0.3dB | Connector: | LC,SC,SC LC FC ST MU,anything,SC/APC |
| Material: | PVC,LSZH,PVC/LSZH | Product Name: | Fiber Optic Patch Cord |
| Item: | Optical Fiber Patch Cord | Quality Control: | 100% Test Before Shipping |
| Polish: | PC/UPC/APC | Real Factory: | Yes |
| High Light: | Simplex Single Mode Patch Cord,Lc Lc Single Mode Patch Cord,4 Core Lc Lc Fiber Patch Cable |
||

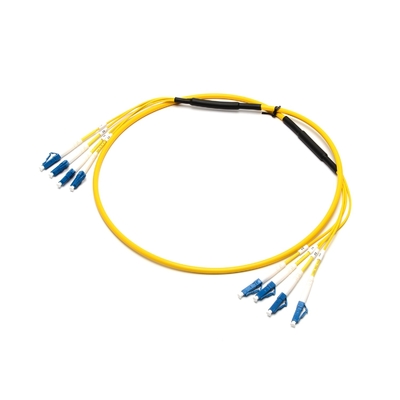

LC UPC-LC UPC Single Mode Customized Length Simplex 4 CORE Fiber Optic Patch Cord LC-LC Fiber Jumper Cable
Quick details:
Features:
Low insertion loss High return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Applications:
Optical access network
Data processing networks
Premise installations
Local Area Networks(LANs)
Wide Area Networks(WANs)
Specification:
| Connector Type | FC, SC, LC, ST, MU, MTRJ, MPO | |||
| Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3/OM4) | ||
| Ferrule End-face | PC | UPC | APC | PC |
| Insertion Loss | ≤0.3dB | ≤0.2dB | ≤0.3dB | ≤0.2bB |
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB |
| Exchangeability | ≤0.2dB | |||
| Repeatability | ≤ 0.1dB(1000 times) | |||
| Durability | > 1000 times | |||
| Operating Temperature | -40°C ~ +85°C | |||
| Fiber type | Min. Bandwidth | Distance | attenuation |
| 62.5/125 |
850/1300nm 200/500 MHz/Km |
@100Mbps 2km @1Gig 220m |
850/1300nm 3.0/1.0dB/km |
| 50/125 |
850/1300nm 500/500 MHz/Km |
@100Mbps 2km @1Gig 500m |
850/1300nm 3.0/1.0dB/km |
|
50/125 10Gig Optimized |
850/1300nm 2000/500 MHz/Km |
@100Gig Varies by VCSEL typical 300m 2850nm |
850/1300nm 3.0/1.0dB/km |
| 9/125 |
1310/1550nm Approx 100 Terahertz |
Up to 100km Varies by transceiver |
1310/1550nm 0.4/0.3dB/km |
Ordering Information
|
Boot (cable size) |
Boot Color | Fiber Type | Cable number | Ferrule | Length |
|
0.9mm 2.0mm 3.0mm |
Black Beige Blue Gray White Yellow |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
UPC APC |
Customized |
