LGX Cassette Type 14 18 1* 16 1*32 SC UPC FTTH Epon Gpon Fiber Optic Box Plc Splitter

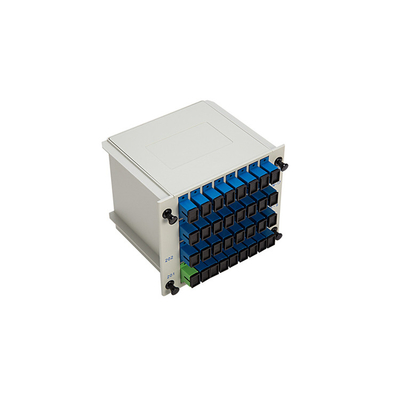

Large Image : LGX Cassette Type 1*4 1*8 1* 16 1*32 SC UPC FTTH Epon Gpon Fiber Optic Box Plc Splitter

Product Details:

Place of Origin:	China
Brand Name:	DAMU
Certification:	CE ROSH ISO9001
Model Number:	DM-LGX-1*32SCUPC

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Packaging Details:	1KM-5KM/Wooden Drum, Weight: 120KG/KM, Drum Size: 787868cm
Delivery Time:	5-8
Payment Terms:	T/T
Supply Ability:	50000pcs/month

Contact Now

LGX Cassette Type 14 18 1* 16 1*32 SC UPC FTTH Epon Gpon Fiber Optic Box Plc Splitter

Description

Application:	FTTH FTTB FTTX Network	Product Name:	1x32 Lgx Cassette Type Fiber Optic Splitter
Connector:	SC/APC/UPC	Type:	1x32
Warranty:	1 Years	Return Loss:	≥50 DB
High Light:	GYTA53 Direct Burial Multimode Fiber Optic Cable , GYTY53 Direct Burial Multimode Fiber Optic Cable

Product Details

Fiber Type	G657A1	Application	GPON/EPON
Connector Type	SC/Apc & SC/Upc	Material	PVC/LSZH
Product Name	Fiber Splitter Box	Fiber Type	Single Mode
Wavelength	1310nm Or 1550nm	Color	White
High Light	Optical Fiber PLC Splitter Box , 164 PLC Splitter Box , 164 PLC Splitter

Product Description

LGX Cassette Type Optical Fiber PLC Splitter Box 1*32 with SC/UPC Connector

1. Description:

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating
wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

2. Specification:

Parameter	Specification
Operating Wavelength (nm)	1260 ~ 1650
Type	1x4	1x8	1x16	2x4	2x8	2x16	1x32	2x32	1x64
Insertion Loss (dB) Max. *	<7.3	<10.5	<13.5	<7.6	<11.2	<14.5	<16.2	<18.2	<20.5
Uniformity (dB) Max.*	<0.8	<1.0	<1.5	<1.0	<1.5	<2.0	<2.0	<2.5	<2.5
PDL(dB)Max.*	<0.2	<0.2	<0.3	<0.3	<0.3	<0.4	<0.3	<0.4	<0.3
Directivity (dB)	≥55
Return Loss (dB)	UPC ≥55 APC ≥60
Operating Temperature (°C)	-5~ +75
Storage Temperature (°C)	-40 ~ +85
Fiber length	1m or custom length
Fiber Type	Corning SMF-28e fiber
Connector Type	Custom specified
Power Handling (mW)	300

Table 1 – 1×N PLC Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(Min/Max)	3.8/4.0	7.2/7.4	10.5/10.7	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.6	0.6	0.8	1.2	1.5	2.5
Return Loss (dB)	55	55	55	55	55	55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Operating Temperature (℃)	-40～+85
Storage Temperature (℃))	-40～+85
Operating Humidity	5% ~ 85% RH
Storage Humidity	5% ~ 85% RH
Device Dimension (mm) (L×W×H)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Mini-Module Dimension (mm) (L×W×H)	50×7×4	50×7×4	60×7×4	60×12×4	80×20×6	N/A

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(Min/Max)	3.9/4.2	7.5/7.8	11.2/11.5	14.2/14.5	17.2/17.7	21.0/21.5
Loss Uniformity (dB)	0.8	1.5	1.5	1.8	2.0	2.5
Return Loss (dB)	55	55	55	55	55	55
Polarization Dependent Loss(dB)	0.2	0.2	0.4	0.4	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Operating Temperature(℃))	-40～+85
Storage Temperature (℃))	-40～+85
Operating Humidity	5% ~ 85% RH
Storage Humidity	5% ~ 85% RH
Device Dimension (mm) (L×W×H)	40×4×4	50×4×4	50×4×4	50×7×4	60×7×4	60×12×4
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Mini-Module Dimension (mm) (L×W×H)	60×7×4	60×7×4	60×7×4	60×12×4	80×20×6	N/A

3. Feature:

* Low Insertion loss

* Low PDL

* Compact Design

* Good channel-to-channel uniformity

* Wide Operating Wavelength: From 1260nm to 1650nm

* Wide Operating Temperature: From -40℃to 85℃

*High Reliability and Stability

4. Application:

* Low Insertion Loss.

* Fiber to home(FTTH)

* Passive Optical Networks(PON)

* Local Areal Networks(LAN)

* Fiber communication systems

5. Product Picture:
