Product Details:
|
| Name: | Plc Splitter | Material: | Steel Tube+fiber |
|---|---|---|---|
| Connector: | SCUPC | Fiber: | G675A OR G625D |
| Length: | 1.0m (±0.1) Or Customer Specified | Packing: | Blister Or Plastic Bag |
| Color: | Colorful Leg Or Transparency Or White | Fiber Dia: | 0.9mm |
| Tube Size: | 60 X 7 X 4mm | Operating Temperature: | -40℃ To 85℃ |
| High Light: | GCYFY 48 Core Fiber Cable,48 Core Fiber Cable 2km,loose tube fiber optic cable 2km |
||
| Connector Type | SC,FC,LC,ST | Ferrule End-face | PC, UPC,APC |
|---|---|---|---|
| Fiber Type | G652D G657A | Fiber Mode | SM MM |
| Package | Steel Tube, ABS Black Box | Structure | 1*2/1*4/1*8/1*16/1*32/1*64 |
| High Light |
fiber optic coupler,fiber optic plc splitter |
||
Specification:
Table 1 – 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Table 2 – 2×N PLC Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Notes:
8 Way Optical Splitter Fiber Optic 1*8 Sc Upc Plc Splitter 0.9mm G657A1 Cable For Terminal Box
Description:
Fiber Splitter is one of the most important passive devices in the optical fiber link.
PLC Splitter is optical fiber tandem device with many input terminals and many output terminals, Especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.
Feature:
Good high temperature low temperature performance
Convenient engineering applications
Fine polarization
Wide scope wavelength
Tight and fine structure
Excellent parameters on IL & RL
High reliability and directivity
Non-sensitive wavelength
Application:
CATV network
LAN, WAN and MAN
Testing equipments
Fiber optic communication system
FTTX access network based on PON structure
Local loop and passive optical network (PON)

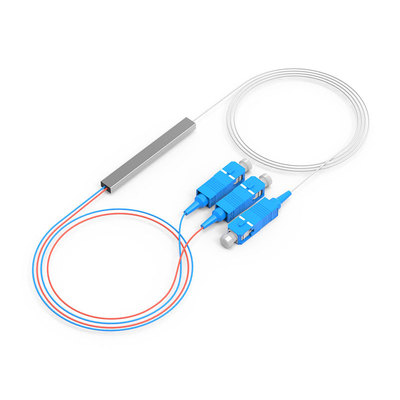

Product Picture:
