Singlemode GYTC8S Fiber Optic Cables , Ftth Optical Fiber Cable 48 Core

Certification
China Shenzhen damu technology co. LTD certification
China Shenzhen damu technology co. LTD certification
I'm Online Chat Now

Singlemode GYTC8S Fiber Optic Cables , Ftth Optical Fiber Cable 48 Core

Singlemode GYTC8S Fiber Optic Cables , Ftth Optical Fiber Cable 48 Core
Singlemode GYTC8S Fiber Optic Cables , Ftth Optical Fiber Cable 48 Core Singlemode GYTC8S Fiber Optic Cables , Ftth Optical Fiber Cable 48 Core Singlemode GYTC8S Fiber Optic Cables , Ftth Optical Fiber Cable 48 Core

Large Image :  Singlemode GYTC8S Fiber Optic Cables , Ftth Optical Fiber Cable 48 Core

Product Details:
Place of Origin: China
Brand Name: DAMU
Certification: CE ROSH ISO9001
Model Number: DM-GYTC8S-36
Payment & Shipping Terms:
Minimum Order Quantity: 3km
Packaging Details: 2KM per wooden drums, Weight:130KG, Drum Size:75*75*60CM
Delivery Time: 5-8
Payment Terms: T/T
Supply Ability: 5000km/month

Singlemode GYTC8S Fiber Optic Cables , Ftth Optical Fiber Cable 48 Core

Description
Certification: ISO9001 Fiber Type: Singlemode
Number Of Conductors: 36cores Jacket Material: HDPE
High Light:

GYTC8S Fiber Optic Cables

,

Singlemode Fiber Optic Cables

,

Ftth Optical Fiber Cable 48 Core

Product Description

Overhead Self Supporting Ftth Optical Cable Singlemode GYTC8S 24 Or 48 Core



Overhead Self Supporting 24 Or 48 Core Ftth Fibra Optica Cable Singlemode Outdoor Cables GYTC8S​

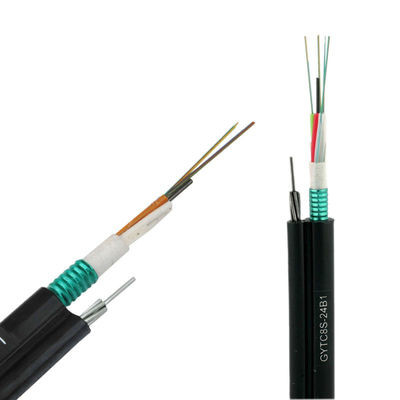

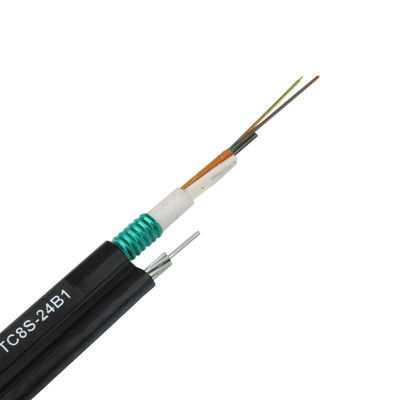

GYTC8S cable, singlemode/multimode fibers are positioned in the loose tubes, while

the loose tubestrand together around metallic central strength member into a compact

and circular cable core,and the water blocking materials are distributed into interstices

of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a

figure-8 structure.



Specification:

Item Name:Fiber optical cable GYTC8S.

Optical Mode:Singlemode/Multimode.

Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm.

Total Fiber Count:2-144.

Bend Radius(Static/Dynamic):10D/20D.

Working Life:More than 25 years.

Application:Aerial self-supporting,Local network,Local network,Long distance network communication.



Construction

  1. Colored fiber

Coated outside diameter:125.0±0.1um

Optical diber diameter:242±7um

UV color fiber:standard chromatogram

Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua

  1. Tube filling compound(Gel)
  2. PBT loose tube
  3. Steel wire strengthen core
  4. Core filler
  5. Steel wire strand wire
  6. Steel tape
  7. Black PE out jacket outside diameter:9.5*18.3mm



Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate:CE ROHS ISO9001



Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility



Fiber count 36 core
Fiber Type: G652D/G657A1/G657A2
Crush Resistance Long term: 300 (N/100MM)
Crush Resistance Short term: 1000(N/100MM)
Overall Diameter 9.5*18.3mm
Sheath PE
Strand Steel wire 7*0.8mm
Sample Status In stock

Product Details


Singlemode GYTC8S Fiber Optic Cables , Ftth Optical Fiber Cable 48 Core 4
