Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket

Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket
Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket

Large Image :  Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket

Product Details:
Place of Origin: China
Brand Name: DAMU
Certification: CE ROSH ISO9001
Model Number: DM-GYFXTY-8
Payment & Shipping Terms:
Minimum Order Quantity: 3KM
Packaging Details: 3000M/Wood Roll,Size of Wood Roll:103*103*66cm, Weight:240KG
Delivery Time: 10-15DAYS
Payment Terms: T/T
Supply Ability: 5000km/month

Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket

Description
Product Name: GYFXTY Cable Fiber Type: G652d
Cable Structure: Central Loose Tube Number Of Fiber: 8
Outer Jacket Materail: PE Application: Overhead
High Light:

PE Fiber Optic Cables

,

Waterproof Fiber Optic Cables

,

PE central loose tube fiber cable

Product Details
Product Name GYFXTY Cable Fiber Type G652d
Number Of Fiber 8 Cable Diameter 7.2±0.5mm
Outer Jacket Materail PE Package 3000M/Wood Roll
Application Overhead Construction Central Loose Tube
High Light

GYFXTY Fiber Optic Cables

,

G652d Overhead Fiber Optic Cables

,

G652d Overhead Optical Cables

Product Description

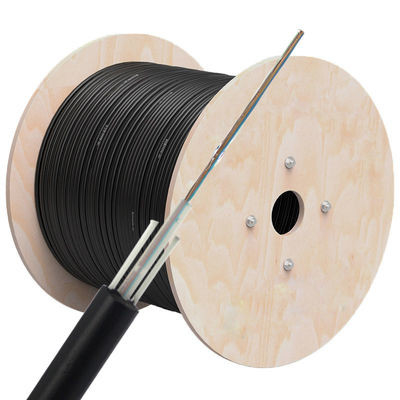

GYFXTY All-Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member



The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound. Two Fiber Reinforced Plastic (FRP)

locates in the side of core as a non-metallic strength member. The tubes (and fillers) are

stranded around the strength member into a compact and circular core. After the cable core

is filled with the filling compound to protect it from water ingress, the cable is completed

with a PE sheath.



Features

  • Low dispersion and attenuation
  • PE sheath protects cable from ultraviolet radiation
  • Small diameter, light weight, and friendly installation
  • Excellent mechanical and temperature resistant performance
  • Special tube filling compound ensures a critical protection for fiber
  • High strength loose tube itself has good hydrolysis resistant performance
  • Two parallel non-metal strength has an excellent anti-electromagnet ability
  • Aerial application
  • Trunk power transmission system
  • Access network and local network
  • Electromagnetic interfering places
  • Adopted to outdoor distribution, lightning protection
  • Long-distance comunication and bureau communication



Optical Characteristics

Technical parameters:
cable count out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum allowable Crush load(N/100mm) Min bending radius(MM) Suitable temperature
  (MM) (KG) short term long term short term long term short term long term (℃)
2 7.2 45.00 1200 500 1000 300 20D 10D -40+60
4 7.2 45.00 1200 500 1000 300 20D 10D -40+60
6 7.2 45.00 1200 500 1000 300 20D 10D -40+60
8 7.2 45.00 1200 500 1000 300 20D 10D -40+60
12 7.2 45.00 1200 500 1000 300 20D 10D -40+60
24 7.2 45.00 1200 500 1000 300 20D 10D -40+60



Fiber standard control

Fiber Type
Multi-mode G.651 A1a:50/125 Gradient-type refractive index
A1b:62.5/125
Single-mode G.652(A,B,C,D) B1.1routines
G.653 B2 Zero dispersion-shifted
G.654 B1.2 Cutoff wavelength shift
G.655 B4 Non-zero dispersion-shifted



GYFXTY All Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member 0

GYFXTY All Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member 1

GYFXTY All Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member 2

GYFXTY All Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member 3

GYFXTY All Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member 4

Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket 5
