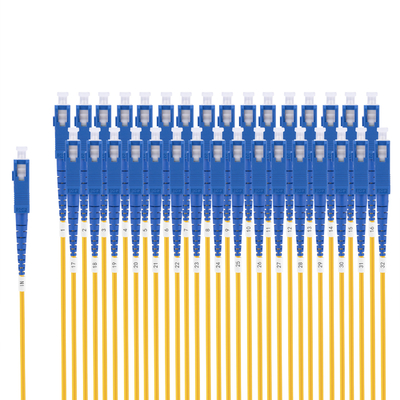

ABS Box Type Singlemode 9 / 125 OS2 1x32 PLC Fiber Splitter Mini Module SC / UPC

Large Image : ABS Box Type Singlemode 9 / 125 OS2 1x32 PLC Fiber Splitter Mini Module SC / UPC

Product Details:

Place of Origin:	CHINA
Brand Name:	DAMU
Certification:	CE
Model Number:	ABS 1*32U

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Packaging Details:	blister packing,outside carton
Supply Ability:	20000pcs/day

Contact Now

ABS Box Type Singlemode 9 / 125 OS2 1x32 PLC Fiber Splitter Mini Module SC / UPC

Description

Material:	ABS BOX	Connector:	SCUPC
Fiber:	G675A OR G625D	Length:	1.0m (±0.1) Or Customer Specified
CAPACITY:	1*32	Fiber Dia:	2.0mm OR 3.0mm
High Light:	ABS Box PLC Fiber Splitter , Singlemode PLC Fiber Splitter , 1x32 PLC Fiber Optic Splitter

ABS Box Type Module 1x32 PLC Fiber Optic Splitter in ABS Box SCUPC connector mini box

Product details

Product Name	PLC Splitter ABS Module 1X32
Fiber Type	LC,FC,SC,ST
Type	ABS Box Type
Ferrule Polish End-face	PC,UPC,APC
Application	gepon,ftth ,fttx
Insertion Loss	4-22dB
Fiber Length	1m ,1.5m, 2m or customized
Sleeve Diameter	2.0mm,3.0mm,0.9mm
Package	bare, module, rack mount,ABS case
Wavelength	1310/1490/1550nm
Product Keywords	PLC Fiber Optic Splitter ABS Box Type 1:32

 Product Description:Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features:
1) Low Insertion loss

2) Low PDL

3) Compact Design

4) Good channel-to-channel uniformity

5) Wide Operating Wavelength:From 1260nm to 1650nm

6) Wide Operating Temperature: From -40℃ to 85℃

7) High Reliability and Stability

Applications:
1) FTTX Systems

2) PON Networks

3) CATV Links

4) Optical Signal Distribution

Compliance:
1) Telcordia GR-1209-CORE-2001

2) Telcordia GR-1221-CORE-1999

3) RoHS

			Parameters

			1×2

			1x4

			1x8

			1x16

			1x32

			1x64

			1x128

			Operating Wavelength(nm)

1260～1650

			Insertion Loss (dB)(P/S rade)

			3.8/4.0

			7.1/7.3

			10.2/10.5

			13.5/13.7

			16.5/ 16.9

			20.5/ 21.0

			24.2/ 24.5

			Loss Uniformity(dB)

			0.4

			0.6

			0.8

			1.2

			1.5

			2.0

			2.5

			Return Loss (dB)(P/S Grade)

55/50

			Polarization Dependent

			0.2

			0.2

			0.2

			0.25

			0.3

			0.35

			0.5

			Directivity (dB)

			55

			Wavelength Dependent

			0.3

			0.3

			0.3

			0.5

			0.5

			0.5

			0.5

			Temperature Stability(-40～8℃)

			0.4

			0.4

			0.4

			0.5

			0.5

			0.5

			0.5

			Operating Temperature(℃)

-40～85

			Storage Temperature(℃)

-40～85

			Module Dimension (mm)(L×W×H)

			100×80×10

			120×80×18

			140×115×18

Ordering Information:PLC-A-B/C-D/E-F/G-H

			A
			B/C
			D/E
			F/G
			H

			PLC
			Port
			Input/Output Pigtail Type
			Input/Output
Fiber Length

			Input/Output Connector
			Package
Type

			PLC
			102=1 x 2
104=1 x 4
108=1 x 8
116=1 x 16
132=1 x 32
164=1 x 64
202=2 x 2
204=2 x 4
208=2 x 8
216=2 x 16
232=2 x 32

			1=900um loose tube

			2=2.0mm loose tube
3=3.0mm loose tube

			05=0.5M
……
10=1.0M
…….
15=1.5M
……

			0=None
FU=FC/UPC
FA=FC/APC
SU=SC/UPC
SA=SC/APC
LU=LC/UPC
LA=LC/APC
ST=ST

X=Others

			P2=100 x 80 x 10.5
mm
P3=120 x 80 x 18
mm
P4=140 x 115 x 18
mm
XL=1,2,3,4U LGX Module

X=Others

Product Highlights

Premium Fiber Splitter Guarantees Stable Transmission

With compact structure and bending insensitive cables, the ABS Module Splitter takes less
distortion during use, which ensures reliable optical transmission.
 Bend Insensitive Fiber
G.657A1 cables with 10mm min.bend radius allow tighter or bending cable routing.

 Nano-zirconia Ceramic Ferrules
Nano-zirconia Ceramic Ferrules
Nano-zirconia ceramic ferrules provide 10.5dB max.IL and 55dB min.RL.

 SC/UPC Connectors
The fibers contain SC/UPC connectors for plug and play, no need to splice.

Tag:

1x32 Fiber Optic Splitter,

plc optical splitter 1x32,

G657 Optical Plc Splitter
