4 Core 5.0mm Spiral Armored Fiber Cable SM Single Mode Black TPU jacket Tactical Military

4 Core 5.0mm Spiral Armored Fiber Cable SM Single Mode Black TPU jacket Tactical Military

  • Name
    Armored Tactical Fiber Cable
  • Outer Jacket
    TPU
  • Color
    Black
  • Application
    Tactical, Military, Broadcasting
  • Fiber Mode
    Single Mode
  • Fiber Buffer
    LSZH
  • Feature 1
    Rodent Resistant
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    4F-TACTICAL-5.0
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    metallic reel , plywood box and pallet
  • Delivery Time
    According to the quantity
  • Payment Terms
    T/T
  • Supply Ability
    30km per day

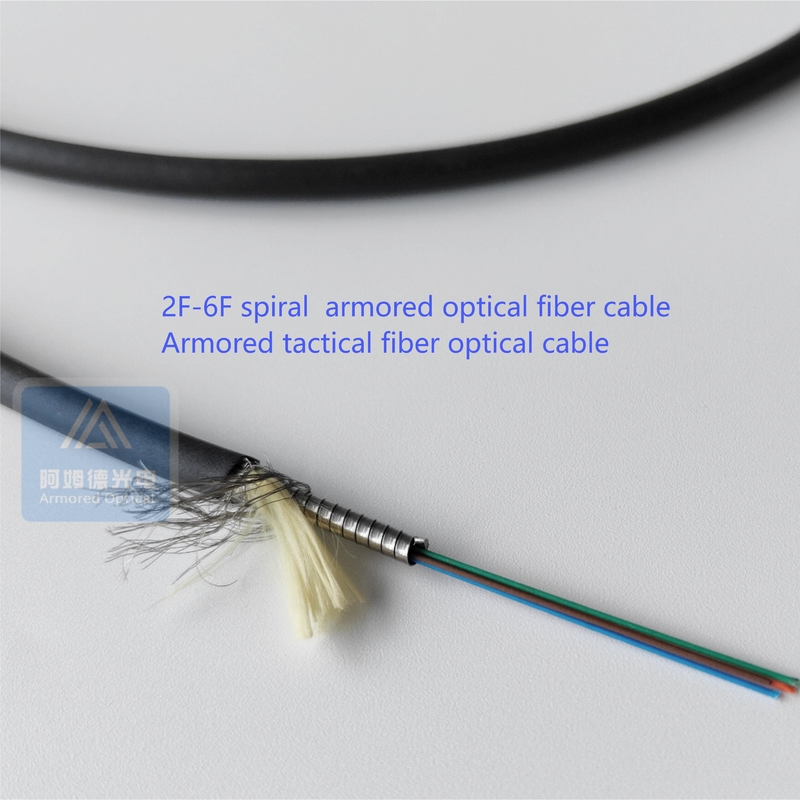

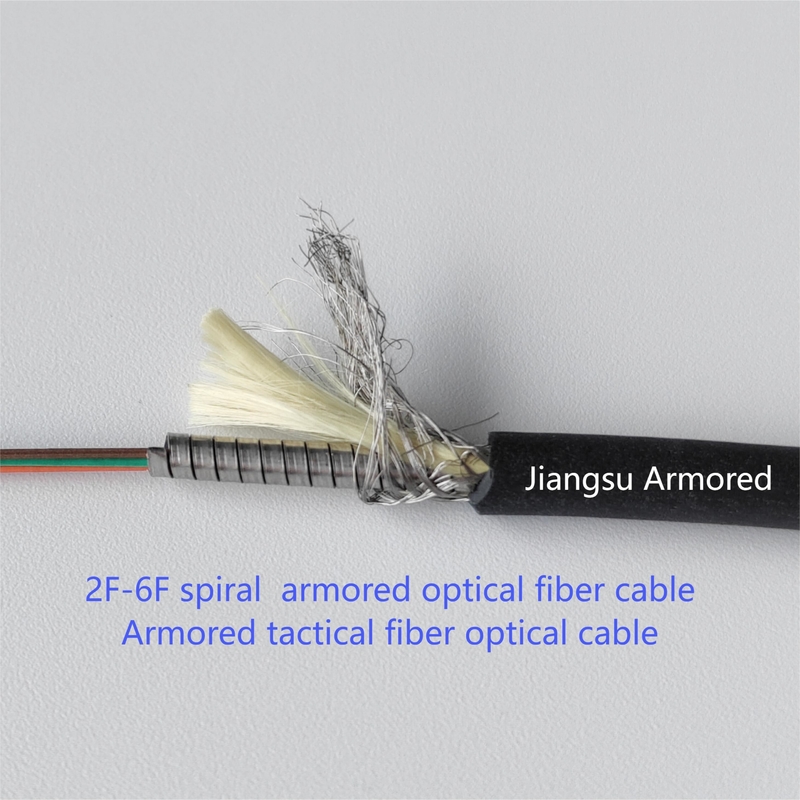

4 Core 5.0mm Spiral Armored Fiber Cable SM Single Mode Black TPU jacket Tactical Military

4 Core 5.0mm Spiral Armored Fiber Cable, SM Single Mode Black TPU jacket, Tactical Military Fiber Cable, Apply for Defense.



Spiral armored fiber cables have good reliability and can resistant to bad conditions. So the armored fiber cable and patch cord can provide good communication and data transmission in harsh environments. so Military and Defense system use armored fiber cable to transimiss data.



Cabe Parameter

Item Unit Dimension Remark
Optic Fiber mm

 0.60±0.05

4pcs SM Fiber
Spiral Armored Tube OD mm 2.80±0.10 Stainless Steel
Aramid Yarn decitex 1100
Metal Braiding mm 6B Stainless Steel
Outer Jacket OD mm 5.0 ±0.2 Material: black TPU
Attenuation Max. dB/km 0.4dB/km@1310nm, 0.3dB/km@1550nm
Temperature -40℃~+90℃
Bend Radius mm Dynamic 20D, Static 10D
Tensile N Long-term 200, short-term 400
Crush N/10cm Long-term 1000, short-term 3000




4 Core 5.0mm Spiral Armored Fiber Cable SM Single Mode Black TPU jacket Tactical Military 0



Service

  • We have nearly 200 sets armored tube equipment, can provide products in time.
  • We’re factory, reasonable prices can be supplied.
  • Our production team has more than 10 years producing experience, we can provide suggestion or solution when customers facing problem about cabling.
  • We can provide suggestion for micro armored fiber optic cable choosing.
  •

The Armored Fiber Optical Cables are used for tactical patch cord assembly4 Core 5.0mm Spiral Armored Fiber Cable SM Single Mode Black TPU jacket Tactical Military 14 Core 5.0mm Spiral Armored Fiber Cable SM Single Mode Black TPU jacket Tactical Military 2
