4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant

  • Name
    4F-12F Micro Armored Fiber Cable
  • Outer Jacket
    LSZH
  • Color
    Black
  • Inner Jacket
    Orange LSZH
  • Application
    FTTH, FTTB,
  • Armored Tube Material
    Stainless Steel
  • Diameter
    5mm
  • Fiber Mode
    Single Mode And Multi Mode
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    4F-12F-LSZH-5.0
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    1000m or 2000m per drum, with or without carton
  • Delivery Time
    According to the quantity
  • Payment Terms
    T/T
  • Supply Ability
    30km per day

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant

4F-12F 5.0mm Spiral Micro Armored Fiber Cable, Black LSZH Jacket FTTH Rodent Resistant



Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks,

like FTTA, FTTH, FTTB, FTTR, etc.



Spiral armored fiber cables are widely used in the industrial environment of cables exposed to high temperature, heavy machinery.

Spiral armored fiber cables provide protection of mechanical damage, like wear,crush, and impact.



Item

Parameter

Fiber count

4 cores -12 cores

Inner jacket material

 LSZH

Armored tube

 SUS material

Cable diameter

5.0±0.2mm

Cable jacket

black LSZH

Temperature

-40℃~80℃

Crush (N/10cm)

Long-term 1000, short-term 3000

Bend radius (mm)

Dynamic 20D, Static 10D

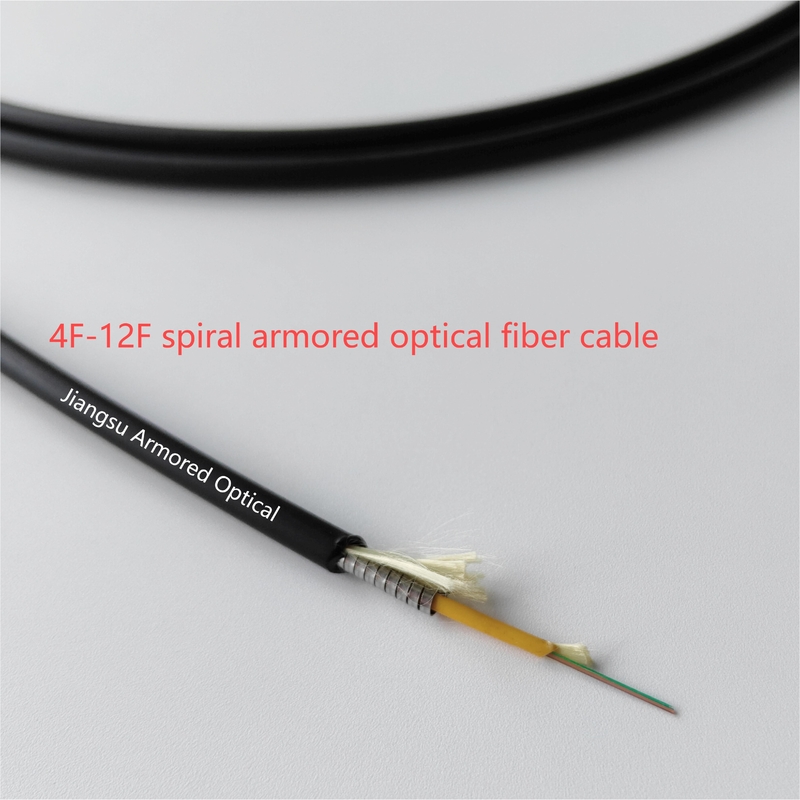

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant 0

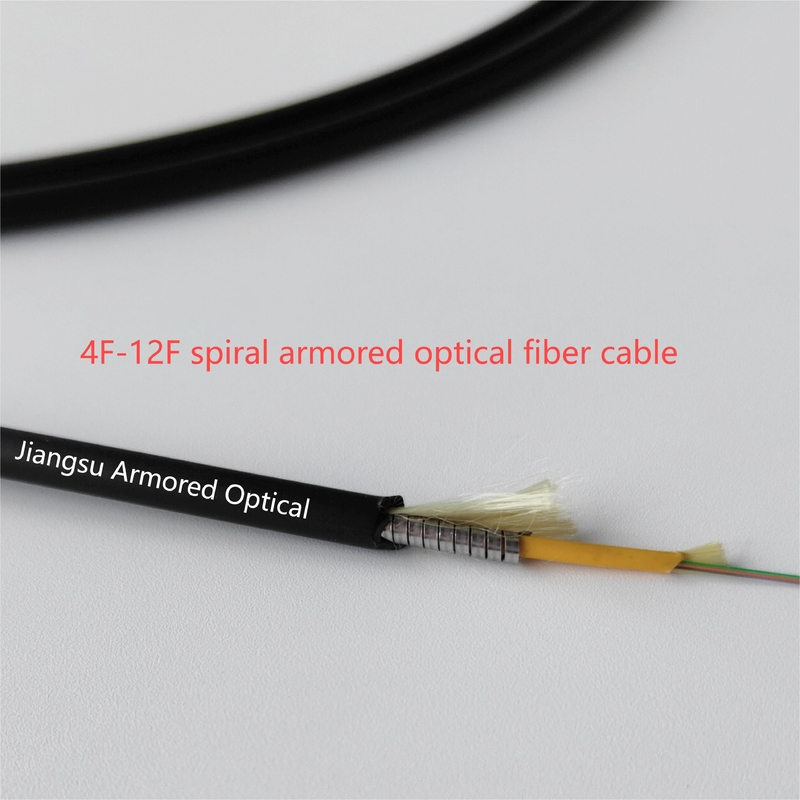

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant 1



For Patch Cord Assembly

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant 2

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant 3



Feature

  • Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.
  • Cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Cable using spiral metal armored layer with best crush property, and cable is very flexible and easy bend.
  • Different jacket material fit for different environments.
  • UV-resistant



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.



Service

  • We have nearly 200 sets armored tube equipment, can provide products in time.
  • We’re factory, reasonable prices can be supplied.
  • Our production team has more than 10 years producing experience, we can provide suggestion or solution when customers facing problem about cabling.
  • We can provide suggestion for micro armored fiber optic cable choosing.
