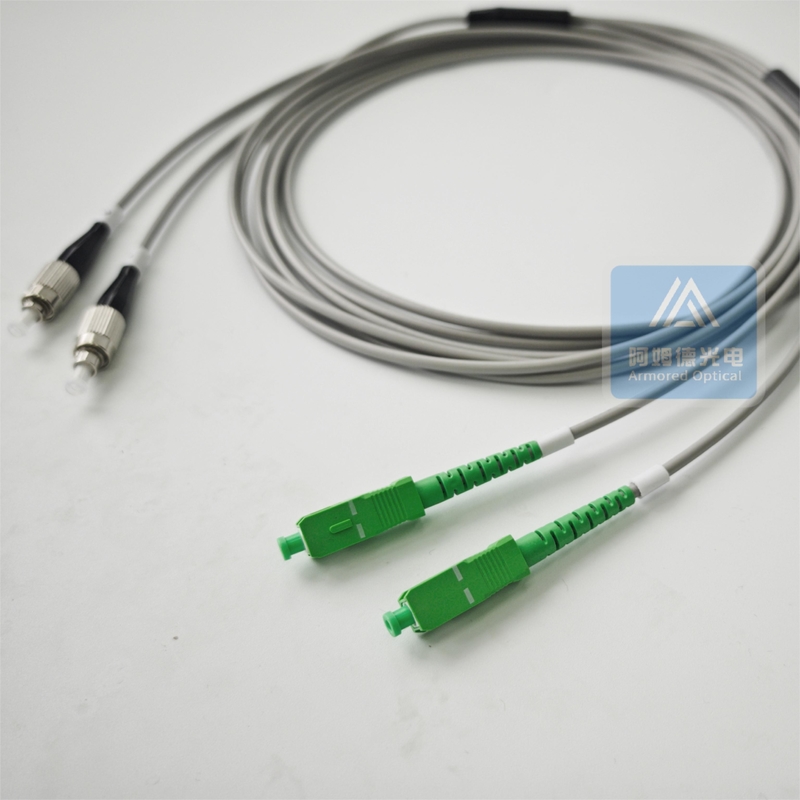

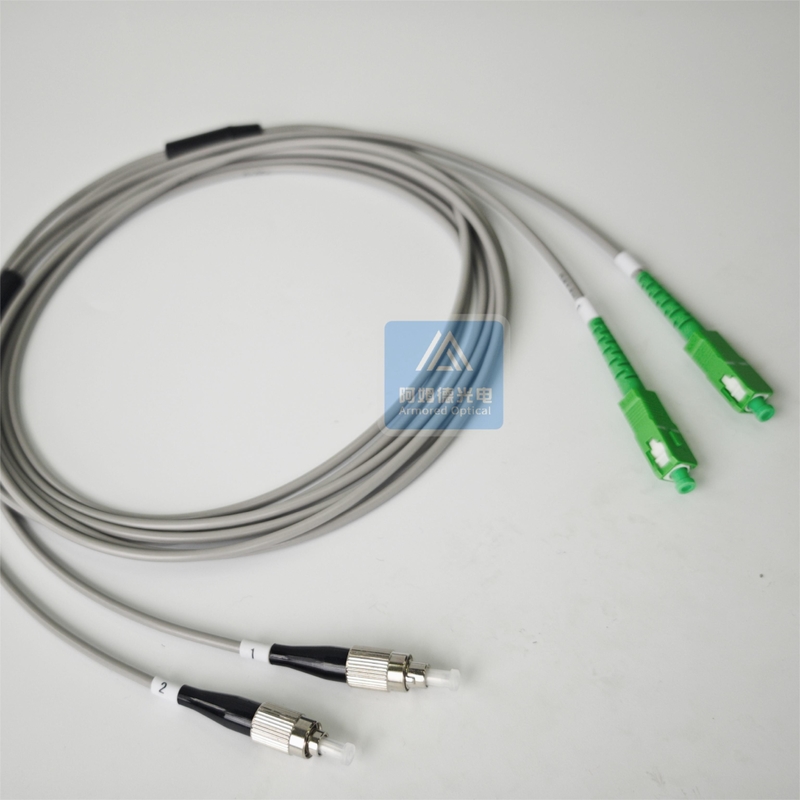

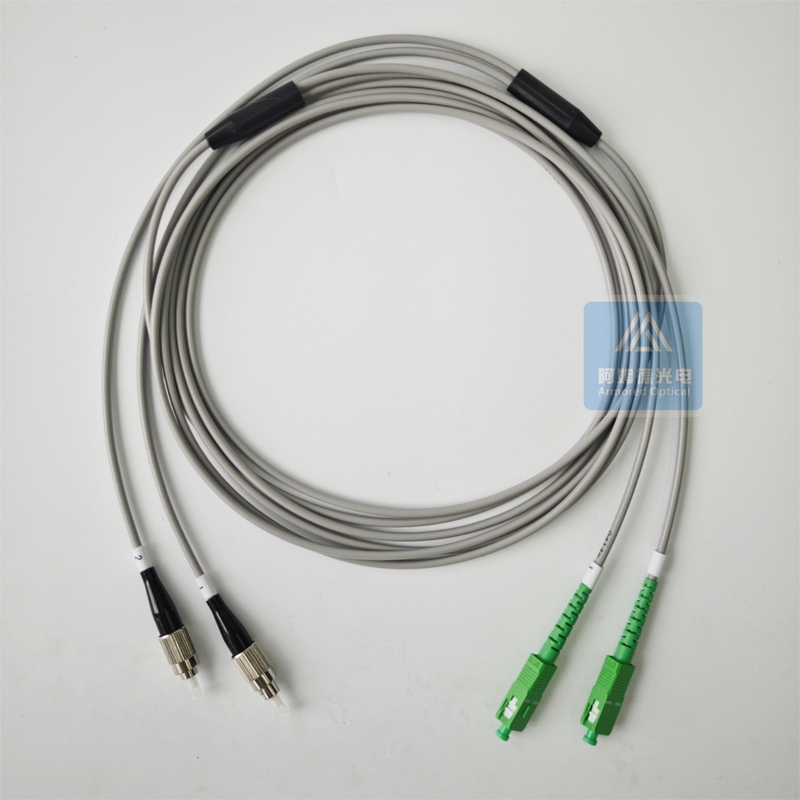

2F Armored Patch Cord 2m SC/APC and FC/UPC Connector 3.0mm Grey PVC Jacket Flame Resistant
2F Armored Patch Cord 2m SC/APC and FC/UPC Connector 3.0mm Grey PVC Jacket Flame Resistant
ODN use, FTTH, FTTR.
Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks,
like FTTA, FTTH, FTTB, FTTR, etc..
With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites.
Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, the advantage are particularly obvious.
Item | Armored patch cord |
Fiber | G657A |
Cable diameter | 3.0MM |
Cable jacket | PVC |
Length | 2M |
Insert loss | < 0.30dB |
Return loss | ≥50dB (UPC), ≥60dB (APC), |
Temperature | PVC: -20℃~70℃, LSZH: -40℃~80℃ |
Fan-out cable | Legnth: 0.3m-0.5m,OD3.0mm diameter |
Cable Grade
|
IEC60332-1-2, OFCR, OFCP, etc. Comply with ROHS |
