8F Armored FTTA Patch Cord CPRI Black Lszh Fiber Patch CordUniboot With Housing

8F Armored FTTA Patch Cord CPRI Black Lszh Fiber Patch CordUniboot With Housing

  • Highlight

    8F Armored FTTA Patch Cord

    ,

    FTTA Patch Cord CPRI

    ,

    lszh fiber patch cord

  • Name
    8 Cores FTTA Armored Patch Cord
  • Fiber Mode
    SM G657A2
  • Jacket Material
    LSZH
  • Color
    Black
  • Cable Length
    30M
  • Fan-out Length
    1M And 3M
  • Armored Tube Material
    Stainless Steel
  • Application
    Outdoor, DDU And RRU, FTTA
  • Feature
    Rodent Resistant
  • Flame Rating
    IEC60332-1-2
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    8F-A2-6.5-LSZH-Uniboot-30M-DT
  • Minimum Order Quantity
    1000M Cable
  • Price
    To Be Advised
  • Packaging Details
    plastic bags , carton, and pallet
  • Delivery Time
    2 Working Weeks
  • Supply Ability
    1000pcs Connector Per Day

8F Armored FTTA Patch Cord CPRI Black Lszh Fiber Patch CordUniboot With Housing

8F Armored FTTA Patch Cord CPRI Patch Cord Black LSZH BBU RRU Uniboot with Housing



8F Armored FTTA Patch Cord CPRI Patch Cord Black LSZH BBU RRU Uniboot with Housing

Base Station, Spiral Armoured Patch Jumper, Micro Armored Patch Cable Assembly



The new mobile network topology (5G) provides telecommunications operators with more deployment options.

Especially in areas where installing new infrastructure is difficult or costly.

Connecting the BBU to RRH through fiber optics allows them to separate at larger distances.

FTTA links make fiber optic an important part of deploying the next generation of mobile networks.



We offer a wide range of patch cord assembly for CPRI and FTTA projects, like Huawei, ZTE, Ericsson, and Nokia.



Item Armored CPRI Patch Cord
Fiber G657A
Cable diameter 6.5mm
Cable jacket LSZH
Length 30M
Insert loss < 0.30dB
Return loss ≥50dB (UPC)
Temperature  -30℃~80℃
Fan-out cable Legnth: 1m and 3m, OD 3.0mm spiral armored tube

Cable Grade



IEC60332-1-2  Comply with ROHS

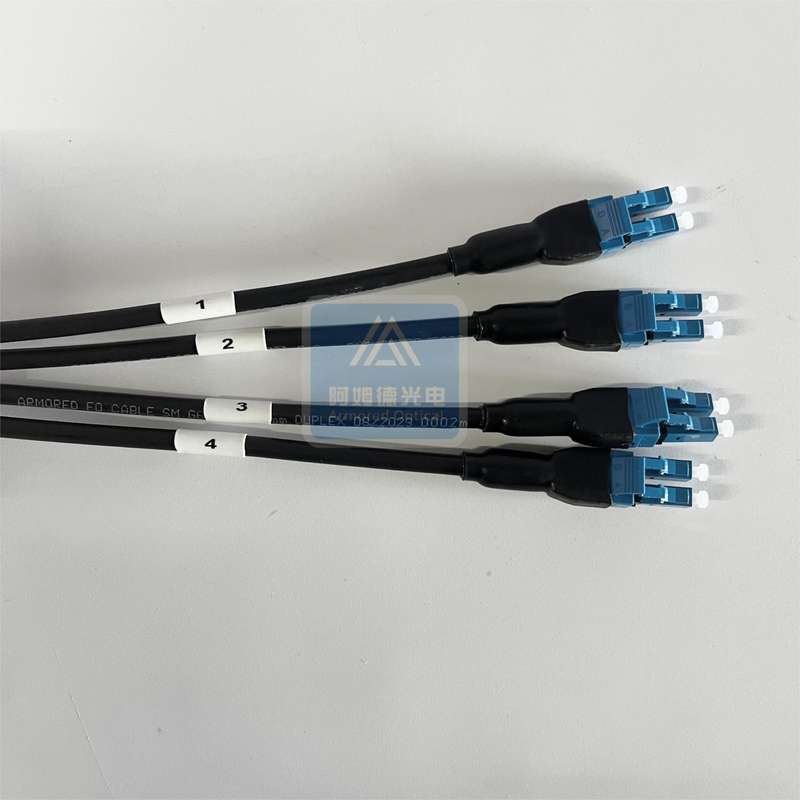

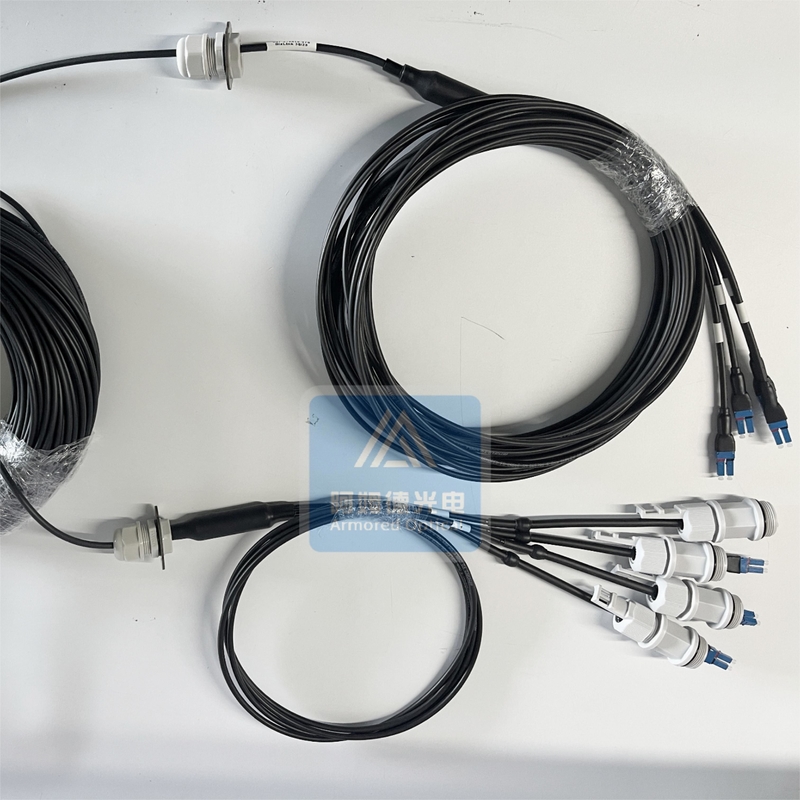

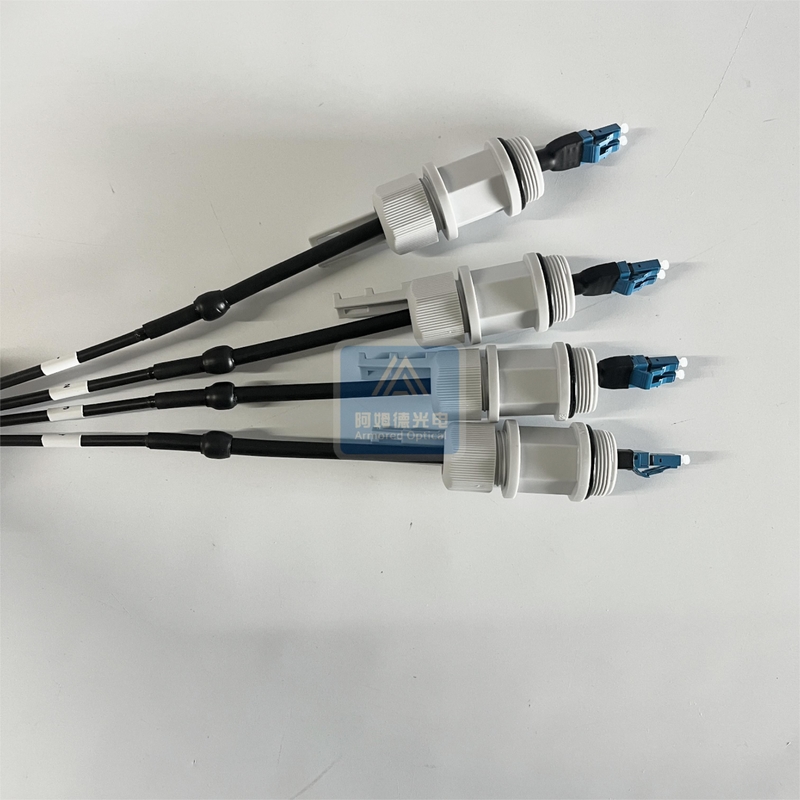

8F Armored FTTA Patch Cord CPRI Black Lszh Fiber Patch CordUniboot With Housing 0

8F Armored FTTA Patch Cord CPRI Black Lszh Fiber Patch CordUniboot With Housing 1

8F Armored FTTA Patch Cord CPRI Black Lszh Fiber Patch CordUniboot With Housing 2







8F Armored FTTA Patch Cord CPRI Black Lszh Fiber Patch CordUniboot With Housing 3

8F Armored FTTA Patch Cord CPRI Black Lszh Fiber Patch CordUniboot With Housing 4





Spiral armored fiber cables are suitable for outdoor use, because Spiral armored fiber cables are UV- resistance,

and can take temperature fluctuations, then are often used for outdoor communication networks, industrial and infrastructure projects.
