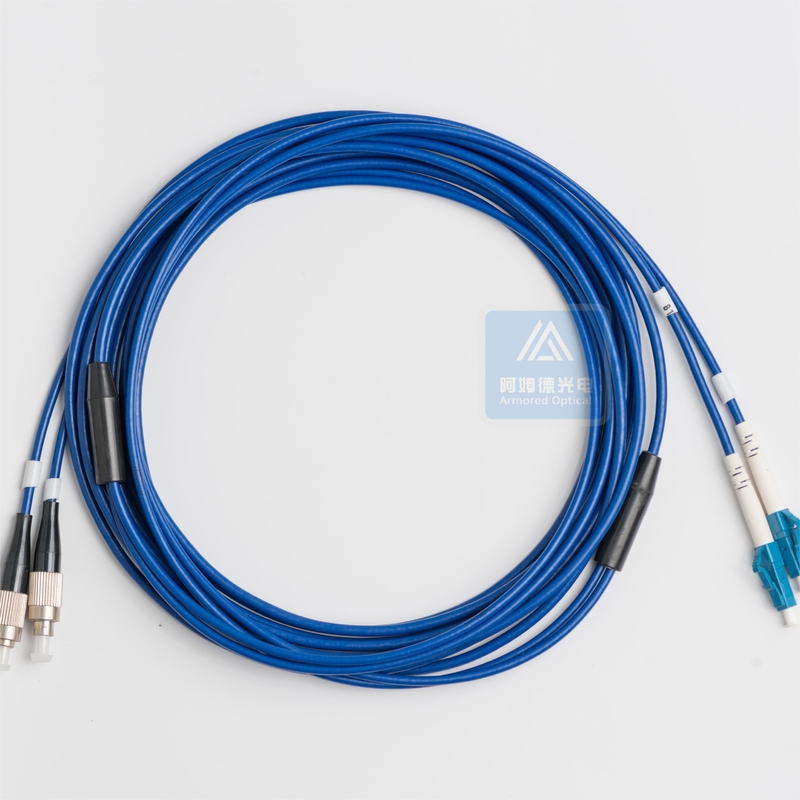

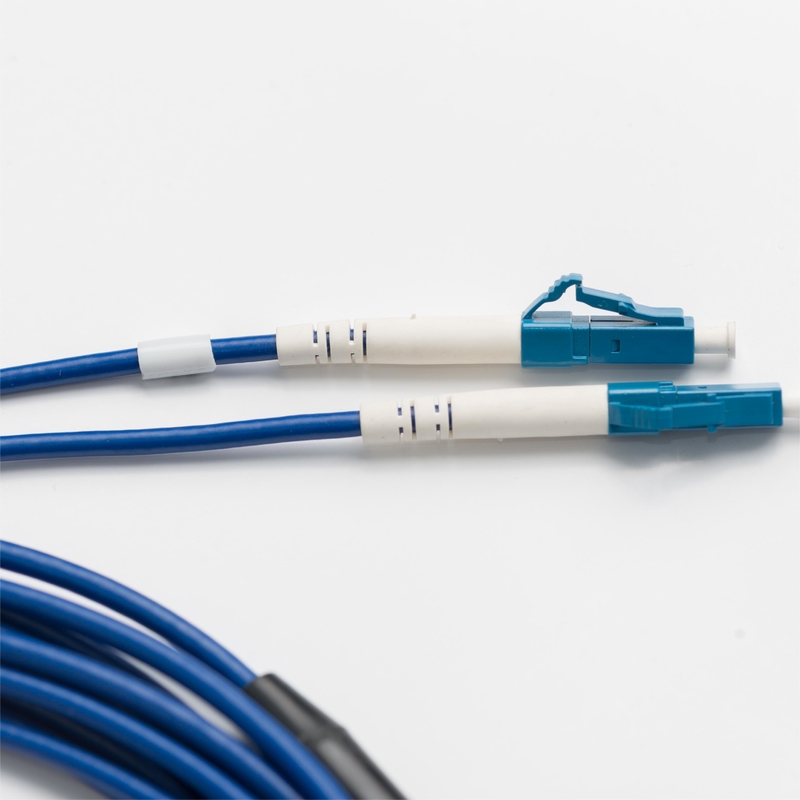

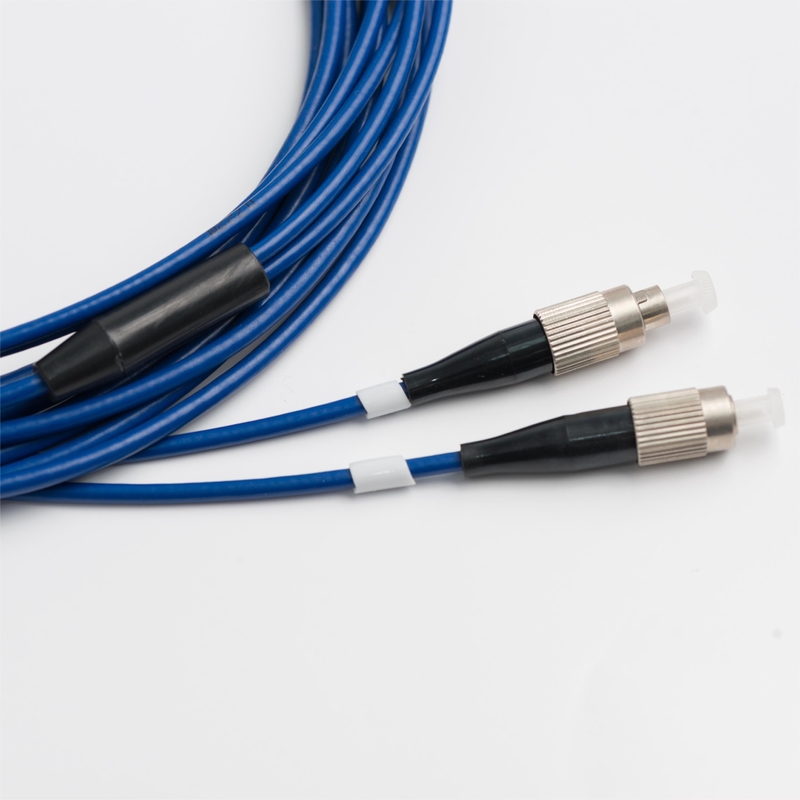

Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH

Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH

  • Highlight

    lc fc fiber patch cord

    ,

    lc fc patch cord

    ,

    lc to fc fiber cable

  • Name
    Armored Patch Cord
  • Color
    Blue
  • Jacket
    PVC
  • Fan-out Length
    30cm
  • Application
    FTTH
  • Fiber
    2 Cores
  • Fiber Mode
    Single Mode
  • Feature
    Rodent Resistant
  • Flame Rating
    OFCR
  • Diameter
    3.0mm
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    2F-A2-3.3-PVC-FC-LC-10M
  • Minimum Order Quantity
    1000m cable
  • Price
    To Be Advised
  • Packaging Details
    Plastic bags , Carton, and Pallet. By Sea or Air shipment
  • Delivery Time
    2 Working Weeks
  • Supply Ability
    4000pcs connector per day

Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH

Duplex Armored Patch Cord 10m LC-FC Connector 3.3mm Blue PVC Jacket Rodent Resistant Flame Resistant FTTH

Duplex Armored Patch Cord 10m LC-FC Connector 3.3mm Blue PVC Jacket Rodent Resistant Flame Resistant FTTH

Armored Patch Jumper, Armored Patch Cable Assembly



Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks,

like FTTA, FTTH, FTTB, FTTR, etc..

Spiral armored fiber cables are suitable for outdoor use, because Spiral armored fiber cables are UV- resistance,

and can take temperature fluctuations, then are often used for outdoor communication networks, industrial and infrastructure projects.



Item Armored patch cord
Fiber G657A, OM1, OM2, OM3, OM4
Cable diameter 3.0 or 3.3 MM, etc.
Cable jacket PVC (LSZH and PU are optional)
Length 1M, 2M, 10M,......1000M
Insert loss < 0.30dB
Return loss ≥50dB (UPC), ≥60dB (APC), ≥25dB (MM)
Temperature PVC: -20℃~70℃, LSZH: -40℃~80℃
Fan-out cable length 10-50cm, length can be customized.

Cable Grade



The following standard can be choosen,

IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, OFCP, etc.

Comply with ROHS



Feature

  • Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • It has greater durability in resisting pulls, strains and impacts from cabling installation.
  • Different jacket material fit for different environments.
  • UV-resistant



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, such as
  • Used in communications in data center
  • Used in the open field, connections between optical equipment.
  • Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH 0



Advantage

  • The cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • The maintain cost will be saved.
  • The cable with good tension and pressure performance.
  • We’re factory. The products can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • We’re factory, good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.



Production line show

Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH 1





Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH 2

Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH 3

Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH 4



Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH 5



Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH 6







Lc To Fc Duplex Armored Lc Fc Fiber Patch Cord 10m 3.3mm Blue PVC Jacket FTTH 7
