24F Sc Lc Armored Fiber Patch Cord LSZH 7.0MM Rodent Resistant FTTX Datacenter

24F Sc Lc Armored Fiber Patch Cord LSZH 7.0MM Rodent Resistant FTTX Datacenter

  • Highlight

    sc lc fiber patch cord

    ,

    armored fiber patch cord

    ,

    24F armored patch cord

  • Name
    24 Cores Armored Patch Cord
  • Fiber Mode
    SM G652D
  • Color
    Yellow
  • Material
    LSZH
  • Cable Length
    0.7 M
  • Fan-out Length
    30cm
  • Armored Tube
    Stainless Steel
  • Application
    FTTH, Datacenter
  • Feature
    Rodent Resistant
  • Flame Rating
    IEC60332-1-2, IEC60332-3-24, Dca,OFCR
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    24F-B1.3-7.0-LSZH-Y
  • Minimum Order Quantity
    1000M Cable
  • Price
    To Be Advised
  • Packaging Details
    Plastic bags , Carton, and Pallet. By Sea or Air shipment
  • Delivery Time
    3 Working Weeks
  • Supply Ability
    1000pcs Connector Per Day

24F Sc Lc Armored Fiber Patch Cord LSZH 7.0MM Rodent Resistant FTTX Datacenter

24F Armored Patch Cord with SC and LC connector Yellow LSZH 7.0MM Rodent Resistant FTTX datacenter

24F Armored Patch Cord with SC and LC connector Yellow LSZH 7.0MM Rodent Resistant

Spiral Armored Patch Jumper, Spiral Armored Cable Assembly.

Application FTTH, Datacenter. etc.





Physical durability

With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites.

Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious

Durability

Because with metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Parameter

Item 24 Cores Armored patch cord
Fiber SM or MM
Cable Diameter 7.0mm, etc.
Cable Jacket LSZH
Length 1M, 2M, 10M******50M
Insert Loss < 0.30dB
Return Loss ≥50dB (UPC), ≥60dB (APC), ≥25dB (MM)
Temperature  -40℃~80℃
Fan-out Cable Length 30cm, length can be customized.

Cable Grade



The following standard can be choosen,

IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, etc.

Comply with ROHS



Product show

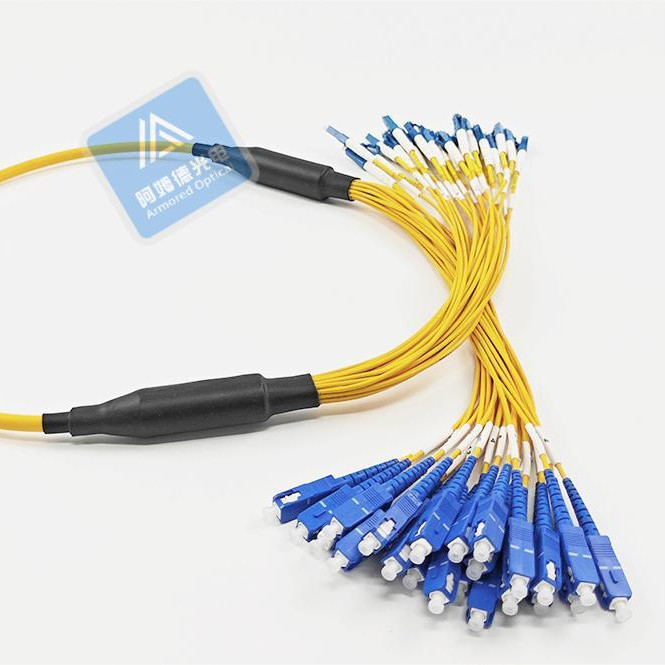

24F Sc Lc Armored Fiber Patch Cord LSZH 7.0MM Rodent Resistant FTTX Datacenter 0

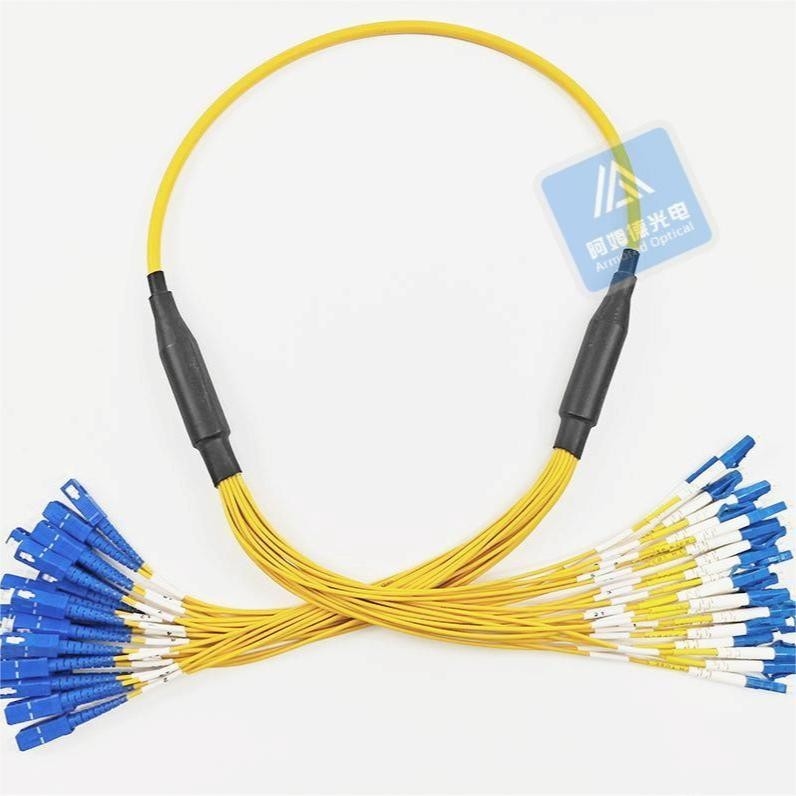

24F Sc Lc Armored Fiber Patch Cord LSZH 7.0MM Rodent Resistant FTTX Datacenter 1





Cable construction example

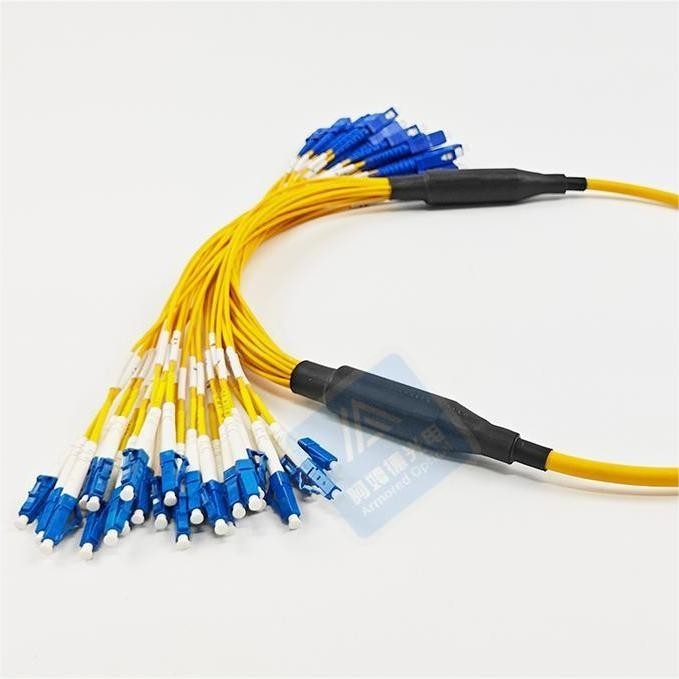

24F Sc Lc Armored Fiber Patch Cord LSZH 7.0MM Rodent Resistant FTTX Datacenter 2

24F Sc Lc Armored Fiber Patch Cord LSZH 7.0MM Rodent Resistant FTTX Datacenter 3



Feature

  • Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • Spiral armored fiber cable has greater durability in resisting pulls, strains and impacts from cabling installation.
  • Different jacket material fit for different environments.



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical
  • Used in communications in data center
  • Used in the open field, connections between optical equipment.
