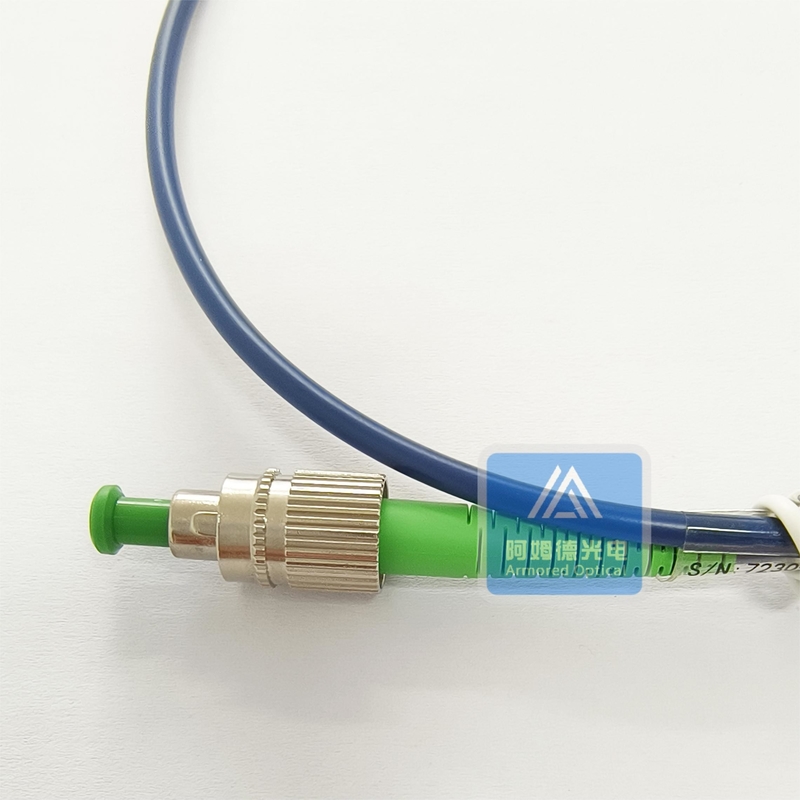

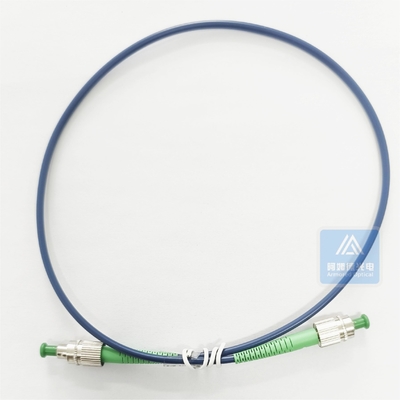

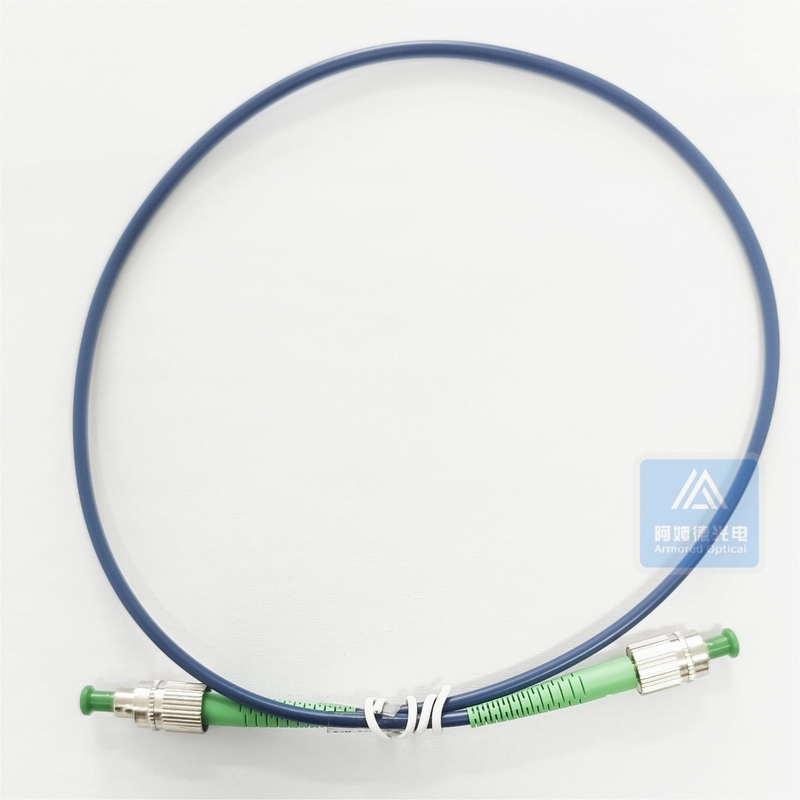

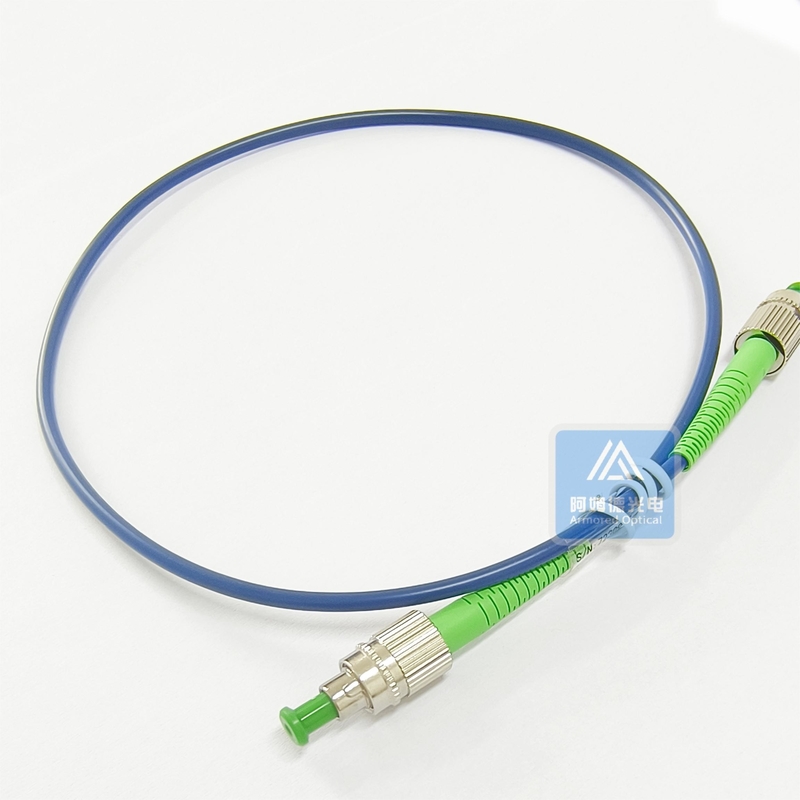

Simplex Armored Patch Cord 0.5m FC/UPC Connector 3.0mm Blue LSZH Flame Resistant FTTH
Rodent Resistant, FTTB, Termination Box Pigtail and Patch Cord
| Item |
Armored patch cord |
| Fiber |
G657A, OM1, OM2, OM3, OM4 |
| Cable diameter |
2.0 or 3.0 MM, |
| Cable jacket |
LSZH ( PVC and PU are optional) |
| Cable Length |
0.5M, 1M, 2M, 10M,......10000M |
| Insert loss |
＜ 0.30dB |
| Return loss |
≥50dB (UPC), ≥60dB (APC), ≥25dB (MM) |
| Temperature |
-40℃~80℃ |
| Fan-out cable |
N/A |
|
Cable Grade
|
The following standard can be choosen,
IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, OFCP, etc.
Comply with ROHS
|
Feature
- Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
- It has greater durability in resisting pulls, strains and impacts from cabling installation.
- Different jacket material fit for different environments.
- UV-resistant
Applications
- Used in FTTX, from residence to data center and cabling level and vertical, such as
- Used in communications in data center
- Used in the open field, connections between optical equipment.
Advantage
- The cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
- The maintain cost will be saved.
- The cable with good tension and pressure performance.
- The products can be customized, eg. construct, size, color, material, printing, length, packing and so on, to meet different customers’ different requirement.
Service
- 100% testing before shipment.
- We’re factory, good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
Production line show:
