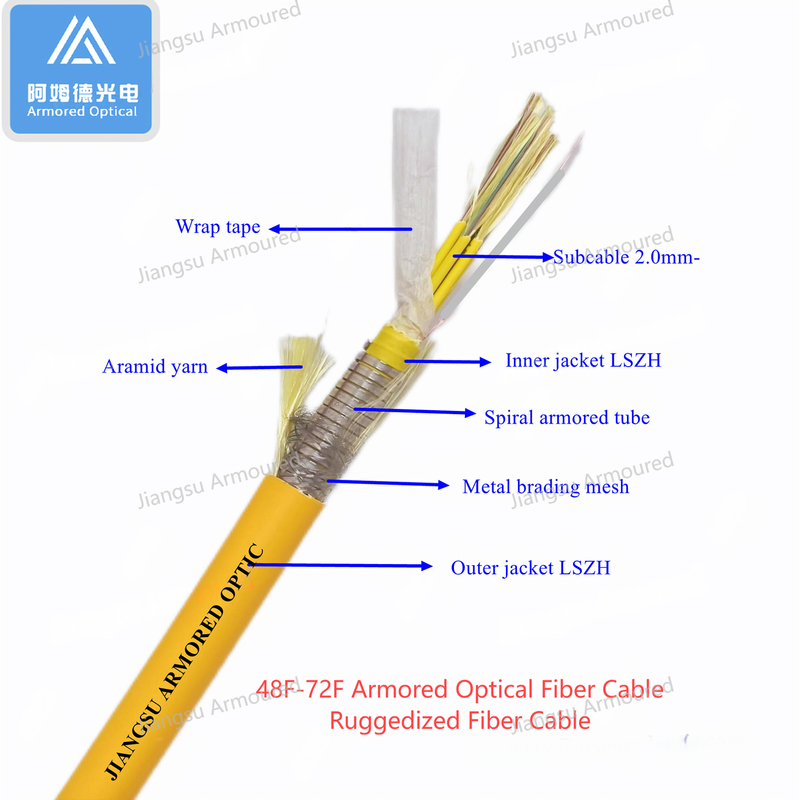

72 Cores 13.0mm Spiral Steel Armored Fiber Cable Yellow LSZH FTTH Double Jacket Double Armored

72 Cores 13.0mm Spiral Steel Armored Fiber Cable Yellow LSZH FTTH Double Jacket Double Armored

  • Name
    Spiral Armored Fiber Cable
  • Color
    Yellow
  • Application
    FTTH, Datacenter,
  • Armored Tube
    Stainless Steel Tube
  • Cable Core
    72
  • Fiber Mode
    Single-mode
  • Out Sheath
    LSZH
  • Diameter
    13mm
  • Feature 1
    Double Jacket Double Armoured
  • Feature 2
    Rodent Resistant
  • Place of Origin
    CHINA
  • Brand Name
    ARMORED
  • Certification
    ROHS,
  • Model Number
    72F-13.0-LSZH
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    500m per drum
  • Delivery Time
    According to the quantity
  • Payment Terms
    T/T
  • Supply Ability
    20km per day

72 Cores 13.0mm Spiral Steel Armored Fiber Cable Yellow LSZH FTTH Double Jacket Double Armored

72 Cores 13.0mm Spiral Steel Armored Fiber Cable Yellow LSZH FTTH Double Jacket Double Armored Ruggedized Fiber Cable



Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC), making them adaptable to different networking and communications equipment.

Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.



Cable parameter



Item

Description

Fiber count

72F

Inner jacket

 LSZH

Armored tube

 SUS material

Cable diameter

13.0±0.5mm

Cable jacket

Yellow LSZH

Temperature

-40℃~80℃

Crush (N/10cm)

Long-term 1000, short-term 3000

Bend radius (mm)

Dynamic 20D, Static 10D



72 Cores 13.0mm Spiral Steel Armored Fiber Cable Yellow LSZH FTTH Double Jacket Double Armored 0



Data Center Application



Compare with common breakout cable, Spiral armored fiber cables with small diameter and weight.

It's friendly to workers to install and maintain.
