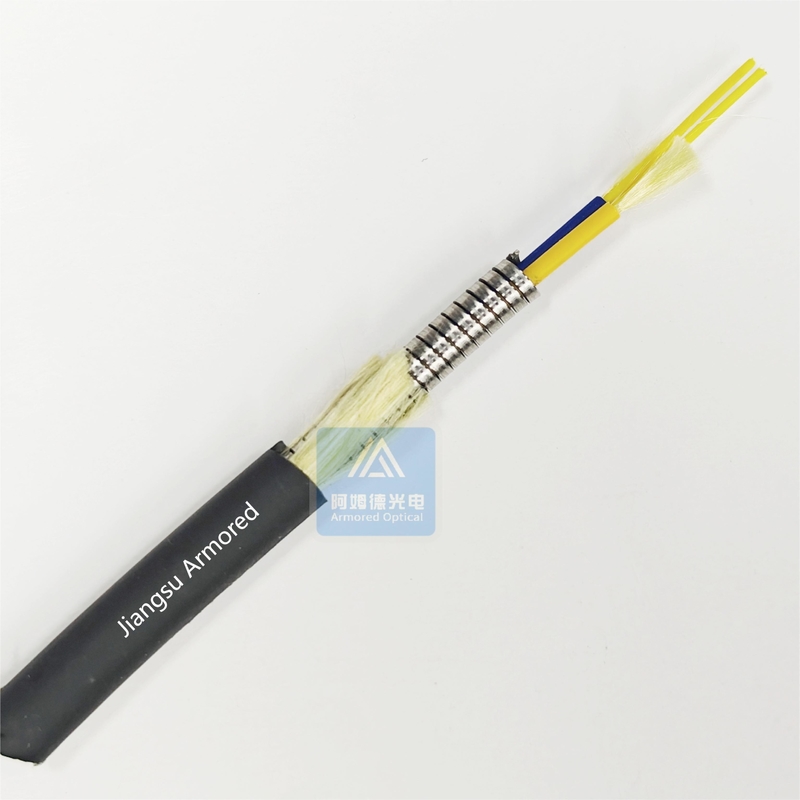

Duplex 7.0mm Spiral Steel Armored  Fiber Cable Black LSZH  FTTA Patch Jumper  CPRI Fiber Cable

Duplex 7.0mm Spiral Steel Armored Fiber Cable Black LSZH FTTA Patch Jumper CPRI Fiber Cable

  • Name
    Duplex Spiral Armored Fiber Cable
  • Outer Jacket
    LSZH
  • Color
    Black
  • Diameter
    7.0mm
  • Application
    FTTA Patch Cord For Base Station
  • Feature
    Rodent-resisitant
  • Spiral Tube Material
    Stainess Steel
  • Flame Retardant
    IEC60332-1-2, Or IEC60332-3-24
  • Mode
    SingldeMode, MultiMode
  • Length
    As Required
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    2F-FTTA-7.0/2.0
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    1000m or 2000m per drum,
  • Delivery Time
    According to the quantity
  • Payment Terms
    T/T
  • Supply Ability
    50km per day

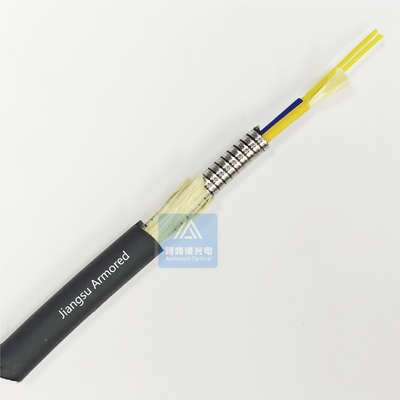

Duplex 7.0mm Spiral Steel Armored Fiber Cable Black LSZH FTTA Patch Jumper CPRI Fiber Cable

Duplex 7.0mm Spiral Steel Armored Fiber Cable Black LSZH FTTA Patch Jumper CPRI Fiber Cable FTTA Patch Cord

Patch Cord for Base Station



Compare with common patch cord, spiral armored fiber cable have several advantages as following,

Physical durability

With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites. Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious.

Durability

Because with metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.





Item Unit Parameter
Optical fiber mm 0.9±0.05 2 pcs
Tight buffer material   PVC
Strength member decitex 1100D Aramid yarn
Inner jacket OD mm 1.9 ±0.2
Spiral armored tube OD mm 4.70±0.10 ID: 3.9±0.10
Strength member decitex 1100D Aramid yarn
Outer jacket mm 6.80±0.20 Material: black LSZH
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

MM: 3.5dB/km@850nm, 1.5dB/km@1300nm

Temperature -40℃ ~ +80℃
Bend radius mm Dynamic 20D, Static 10D
Tensile max. N 600
Crush N/10cm Long-term 1000, short-term 3000


Duplex 7.0mm Spiral Steel Armored  Fiber Cable Black LSZH  FTTA Patch Jumper  CPRI Fiber Cable 0



Applications



Outdoor equipment

Spiral armored fiber cables are suitable for outdoor use, because Spiral armored fiber cables are UV- resistance, and can take temperature fluctuations, then are often used for outdoor communication networks, industrial and infrastructure projects.



The following armored FTTA patch  cord are used to base station equipment. fyi.

Duplex 7.0mm Spiral Steel Armored  Fiber Cable Black LSZH  FTTA Patch Jumper  CPRI Fiber Cable 1



Duplex 7.0mm Spiral Steel Armored  Fiber Cable Black LSZH  FTTA Patch Jumper  CPRI Fiber Cable 2





Duplex 7.0mm Spiral Steel Armored  Fiber Cable Black LSZH  FTTA Patch Jumper  CPRI Fiber Cable 3





Duplex 7.0mm Spiral Steel Armored  Fiber Cable Black LSZH  FTTA Patch Jumper  CPRI Fiber Cable 4
