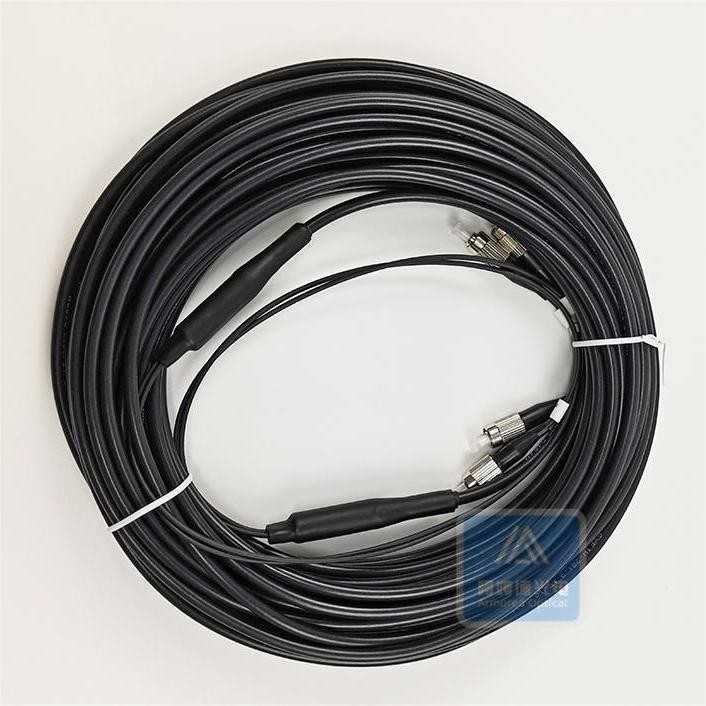

Duplex Armored Patch Cord 50m FC-FC 5.0mm Black LSZH Rodent Resistant FTTH Patch Jumper
Duplex Armored Patch Cord 50m FC-FC 5.0mm Black LSZH Rodent Resistant FTTH Patch Jumper ODN
Micro Armoured Patch Jumper
Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks,
like FTTA, FTTH, FTTB, FTTR, etc..
Parameter
| Item |
Armored patch cord |
| Fiber |
OM2 |
| Cable diameter |
5.0 mm |
| Cable jacket |
LSZH |
| Length |
50M |
| Insert loss |
＜ 0.30dB |
| Return loss |
≥25dB (MM) |
| Temperature |
-40℃~80℃ |
| Fan-out cable length |
50cm, length can be customized. |
|
Cable Grade
|
The following standard can be choosen,
IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, etc.
Comply with ROHS
|
Cable construction example for reference, customers can choose one which they would like.
Production line show
Feature
- Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
- It has greater durability in resisting pulls, strains and impacts from cabling installation.
- Different jacket material fit for different environments.
- UV-resistant
Applications
- Used in FTTX, from residence to data center and cabling level and vertical, such as
- Used in communications in data center
- Used in the open field, connections between optical equipment.
Advantage
- The cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
- The maintain cost will be saved.
- The cable with good tension and pressure performance.
- We’re factory. The products can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
Service
- 100% testing before shipment.
- We’re factory, good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
