48 Core Armored Fiber Optical Cable Single Mode 10.5mm  Black TPU Rodent Resistant

48 Core Armored Fiber Optical Cable Single Mode 10.5mm Black TPU Rodent Resistant

  • Name
    Spiral Armored Fiber Cable
  • Outer Jacket
    TPU
  • Color
    Black, Other Colors Can Be Custmized
  • Fiber Quantity
    48 Cores
  • Armored Tube Material
    Stainless Steel
  • Diameter
    10.5mm
  • Fiber Mode
    Single Mode
  • Feature
    Rodent Resistant
  • Application
    FTTH, Datacenter
  • Flame Rating
    OFCR
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    48F-B1.3-10.5-PU-B
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    1000m, 500m per drum, without carton
  • Delivery Time
    According to the quantity
  • Payment Terms
    T/T
  • Supply Ability
    100km per day

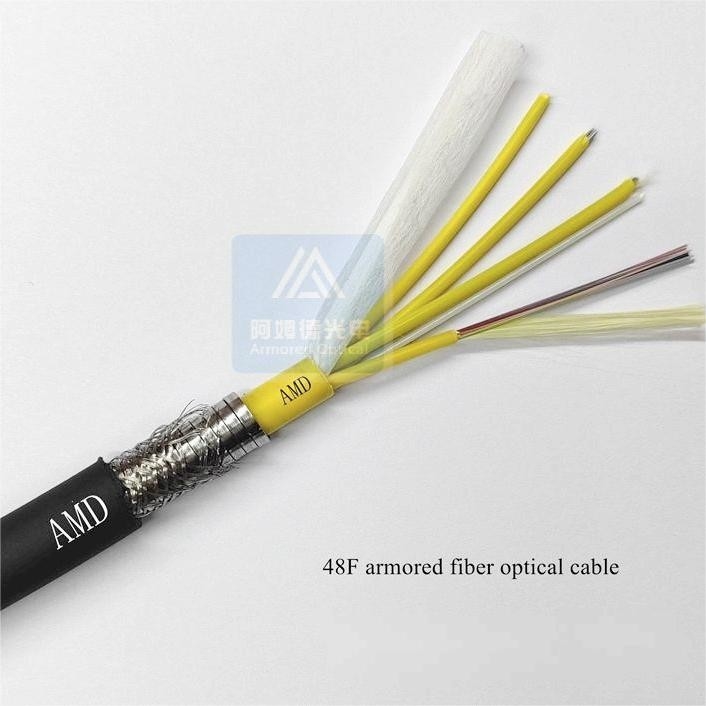

48 Core Armored Fiber Optical Cable Single Mode 10.5mm Black TPU Rodent Resistant

48 Core 10.5mm Spiral Armored Fiber Optical Cable, SM Single Mode, Black TPU Jacket, Double Jacket, FTTH, Rodent Resistant



Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks, like FTTH, FTTB, FTTR, etc.

TPU is wear resistant and soft. Then armoured fiber cable is very soft and flixible to twist

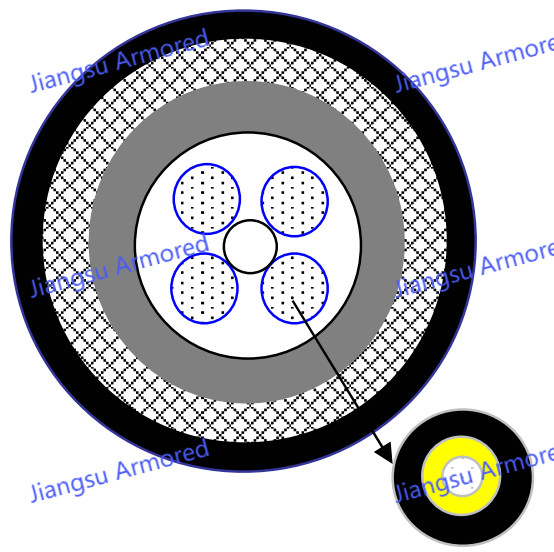

Cable Parameter





48 Core Armored Fiber Optical Cable Single Mode 10.5mm  Black TPU Rodent Resistant 0

Item Unit Description Remark
Bare fiber mm 0.25±0.05 12 pcs
Aramid yarn decitex 1100
Sub-cable OD mm 1.9 ± 0.1 Total 4pcs
Inner jacket mm 6.5±0.2 LSZH
Spiral armored tube mm 7.9±0.2
Braiding mesh mm 8.2±0.2
Outer jacket OD mm 10.5±0.5 TPU
Attenuation (Max.) dB/km SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm
Temperature

 -40℃ ~ +90℃

Tensile N Long-term 300, short-term 600
Crush N/10cm Long-term 2000, short-term 3000


Application show



With the same fiber quantity and diameter, spiral armored fiber cable is soft than corrugated steel armored cable.

and can be tied with small diameter.

And spiral armored fiber cable can be recovery without tie.



48 Core Armored Fiber Optical Cable Single Mode 10.5mm  Black TPU Rodent Resistant 1



48 Core Armored Fiber Optical Cable Single Mode 10.5mm  Black TPU Rodent Resistant 2



Feature

  • Cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Cable using spiral metal armored layer with best crush property, and cable is very flexible and easy bend.
  • Different jacket material fit for different environments.
  • UV-resistant



Advantage

  • The cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • The maintain cost will be saved.
  • The cable with good tension and pressure
  • The cables can be customized, eg. construct, size, color, material, printing, packing and so on., to meet different customers’ different requirement.



Service

  • We have nearly 200 sets armored tube equipment, can provide products in time.
  • We’re factory, reasonable prices can be supplied.
  • Our production team has more than 10 years producing experience, we can provide suggestion or solution when customers facing problem about cabling.
  • We can provide suggestion for micro armored fiber optic cable choosing.
