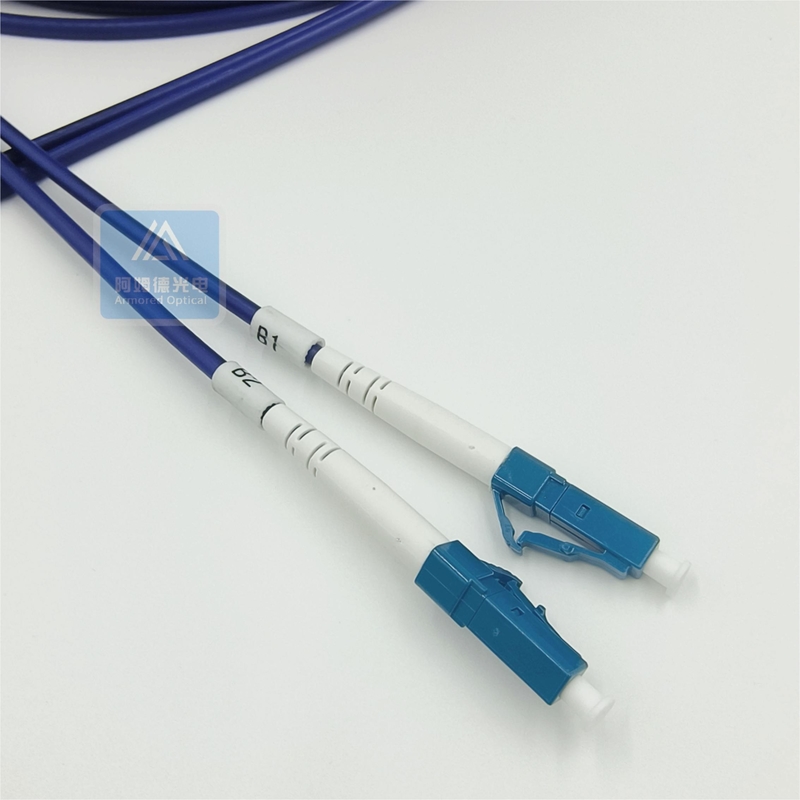

LSZH FTTX FC LC Duplex Armored Fiber Optic Patch Cord 50m 3.3mm Blue

LSZH FTTX FC LC Duplex Armored Fiber Optic Patch Cord 50m 3.3mm Blue

  • Highlight

    armored fiber optic patch cord 3.3mm

    ,

    armored fiber patch cord

    ,

    duplex fiber patch cord

  • Name
    Duplex Armored Patch Cord
  • Color
    Blue
  • Cable Length
    50M
  • Fan-out Length
    50cm
  • Application
    FTTH
  • Jacket
    Blue
  • Fiber Mode
    Single Mode
  • Feature
    Rodent Resisitant
  • Flame Rating
    IEC60332-1-2, IEC60332-3-24, Dca,OFCR
  • Connectors
    FC/UPC AND LC/UPC
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    2F-B1.3-3.3-PVC-FC-LC-50M
  • Minimum Order Quantity
    1000m cable
  • Price
    To be advised
  • Packaging Details
    Plastic bags , Carton, and Pallet. By Sea or Air shipment
  • Delivery Time
    2 working weeks
  • Supply Ability
    4000pcs connector per day

LSZH FTTX FC LC Duplex Armored Fiber Optic Patch Cord 50m 3.3mm Blue

Duplex Armored Patch Cord 50m 3.3mm Blue LSZH FTTX Flame Resistant Rodent Resistant FC-LC Connector



Duplex Armored Patch Cord 50m 3.3mm Blue LSZH FTTX Flame Resistant Rodent Resistant FC-LC Connector



Spiral armored fiber cables are widely used in the industrial environment of cables exposed to high temperature, heavy machinery.

Spiral armored fiber cables provide protection of mechanical damage, like wear,crush, and impact.

Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks,

like FTTA, FTTH, FTTB, FTTR, etc..



Parameter



Item Armored patch cord
Fiber G657A, OM1, OM2, OM3, OM4
Cable diameter 3.0 or 3.3 MM, etc.
Cable jacket LSZH   (PVC and PU are optional)
Length 1M, 2M, 10M,......1000M
Insert loss < 0.30dB
Return loss ≥50dB (UPC), ≥60dB (APC), ≥25dB (MM)
Temperature PVC: -20℃~70℃, LSZH: -40℃~80℃
Fan-out cable length 10-50cm, length can be customized.

Cable Grade



The following standard can be choosen,

IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, OFCP, etc.

Comply with ROHS



Cable show:

LSZH FTTX FC LC Duplex Armored Fiber Optic Patch Cord 50m 3.3mm Blue 0





Feature

  • Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • It has greater durability in resisting pulls, strains and impacts from cabling installation.
  • Different jacket material fit for different environments.
  • UV-resistant



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, such as
  • Used in communications in data center
  • Used in the open field, connections between optical equipment.
  • LSZH FTTX FC LC Duplex Armored Fiber Optic Patch Cord 50m 3.3mm Blue 1



Production line show

LSZH FTTX FC LC Duplex Armored Fiber Optic Patch Cord 50m 3.3mm Blue 2



LSZH FTTX FC LC Duplex Armored Fiber Optic Patch Cord 50m 3.3mm Blue 3



LSZH FTTX FC LC Duplex Armored Fiber Optic Patch Cord 50m 3.3mm Blue 4





Advantage

  • The cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • The maintain cost will be saved.
  • The cable with good tension and pressure performance.
  • We’re factory. The products can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • We’re factory, good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
