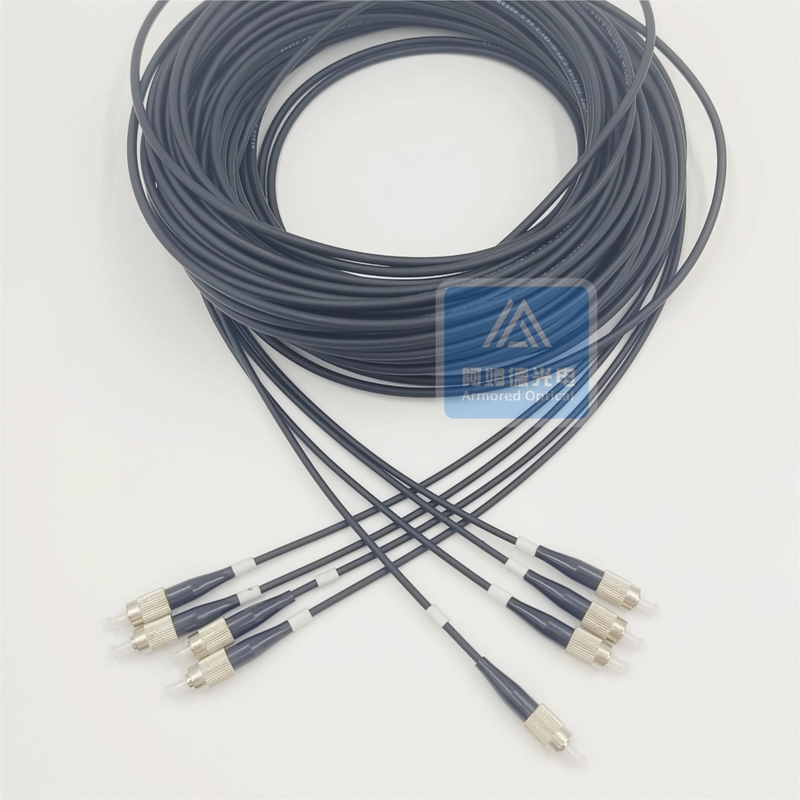

4F Single Mode Armored Patch Cord 50m 5mm Black LSZH FTTH Rodent Resistant FC Connector
4 Cores Armored Patch Cord 50m 5mm Black LSZH FTTH Rodent Resistant Flame Resistant
4F Armored Patch Jumper FC connector
l Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.
l Micro armored fiber cable using high property aramid yarn, increasing tension property, and fit for long distance application.
l Micro armored fiber cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
l Different jacket material fit for different environments.
l UV-resistant
Parameter
| Item | Armored patch cord |
| Fiber | G657A |
| Cable diameter | 5.0MM |
| Cable jacket | LSZH |
| Length | 50M |
| Insert loss | ＜ 0.30dB |
| Return loss | ≥50dB |
| Temperature | -40℃~80℃ |
| Fan-out cable length | 50cm |
|
Cable Grade
|
The following standard can be choosen, IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, etc. Comply with ROHS |
Cable show
Armored Patch Cord show:
l The spiral armored fiber cable is rodent-resistant, which couldn’t be destroyed by rodent animals.
So armoured fiber cable and patch cord products has long product life.
l The maintain cost for spiral armored fiber cable will be saved.
l The spiral armored fiber cable with good tension and pressure
l The cables can be customized, eg. construct, size, color, material, printing, packing and so on.,
to meet different customers’ different requirement.
Our products are sold all over the world, you can rest assured.
