12 Cores MM Spiral Armored Fiber Cable Aque LSZH  Micro Armored Cable FTTH Rodent Resistant

12 Cores MM Spiral Armored Fiber Cable Aque LSZH Micro Armored Cable FTTH Rodent Resistant

  • Name
    12 Cores Armored Fiber Cable
  • Fiber Mode
    OM3-300
  • Armored Tube Material
    Stainless Steel
  • Diameter
    8.5mm
  • Outer Jacket
    LSZH
  • Color
    Aque, Other Colors Can Be Custmized
  • Inner Jacket
    2.0mm LSZH
  • Flame Rating
    IEC60332-1-2
  • Feature
    Rodent Resistant
  • Application
    Network Cabling,Patch Cord Assemby
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    12F-OM3-8.5-LSZH
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    1000m Per Drum, With or Without Carton, By Sea or Air
  • Delivery Time
    3 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    300km per Day

12 Cores MM Spiral Armored Fiber Cable Aque LSZH Micro Armored Cable FTTH Rodent Resistant

12 Cores MM Spiral Armored Fiber Cable Aque LSZH Micro Armored Cable FTTH Rodent Resistant​, Ruggedized Fiber Cable

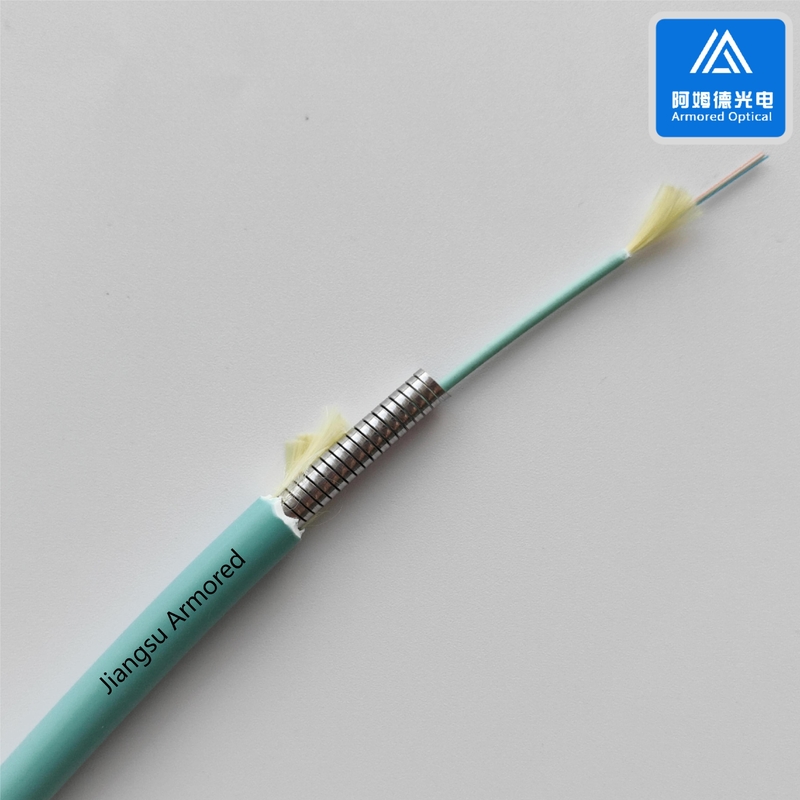

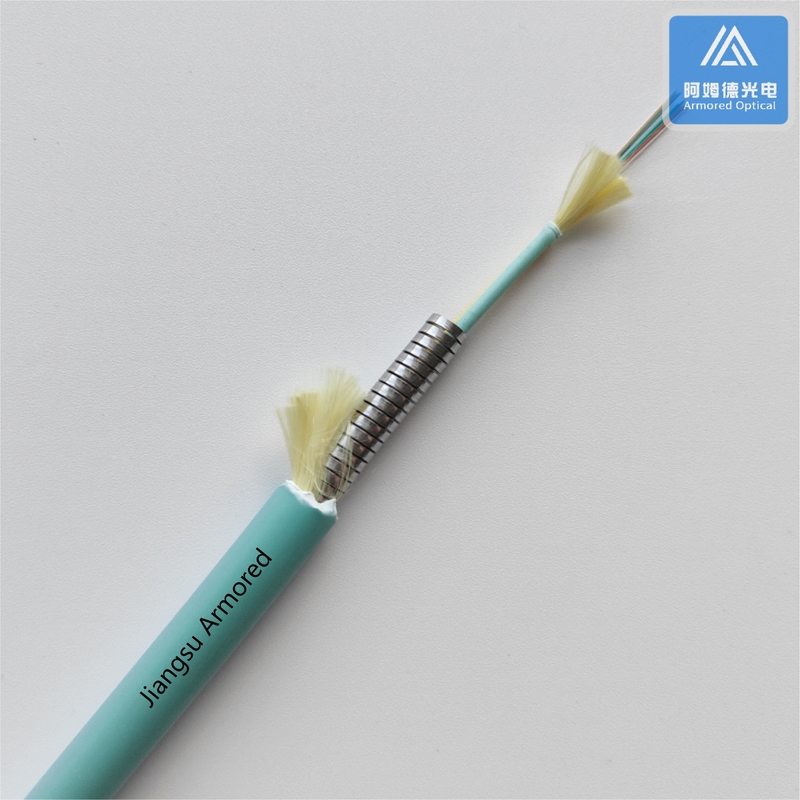

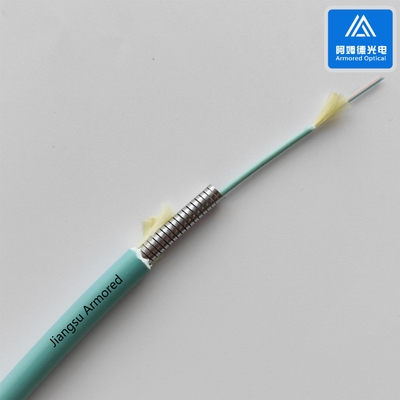

Micro Armored Fiber Cable



With spiral metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.

And armored patch cables are flexible enough and can be twist any direction.



Item

Parameter

Fiber Count

12 Cores

Inner Jacket

Aque 2.0mm

Armored Tube

5.8±0.2mm

Cable diameter

8.5±0.3mm

Cable jacket

LSZH     (TPU or PVC  also can be provided)

Temperature

-40℃~80℃

Crush (N/10cm)

Long-term 1000, short-term 2000

Bend radius (mm)

Dynamic 20D, Static 10D





12 Cores MM Spiral Armored Fiber Cable Aque LSZH  Micro Armored Cable FTTH Rodent Resistant 0



Feature

  • Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • Spiral armored fiber cable has greater durability in resisting pulls, strains and impacts from cabling installation.
  • Different jacket material fit for different environments.
  • UV-resistant
  • It's designed for harsh environments where regular fiber optical cables couldn't work well.



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical
  • Used in communications in data center
  • Used in the open field, connections between optical equipment.



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
