24 Cores SM Spiral Armored Fiber Cable Yellow LSZH  Micro Armored Cable Rodent Resistant FTTH

24 Cores SM Spiral Armored Fiber Cable Yellow LSZH Micro Armored Cable Rodent Resistant FTTH

  • Name
    24 Cores Armored Fiber Cable
  • Fiber Mode
    G652D
  • Armored Tube Material
    Stainless Steel
  • Diameter
    8.5mm
  • Outer Jacket
    LSZH
  • Color
    Yellow, Other Colors Can Be Custmized
  • Inner Jacket
    2.0mm LSZH
  • Flame Rating
    IEC60332-1-2
  • Feature
    Rodent Resistant
  • Application
    Patch Cord Assemby, FTTH
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    24F-B1.3-8.5-LSZH
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    1000m Per Drum, With or Without Carton, By Sea or Air
  • Delivery Time
    3 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    300km per Day

24 Cores SM Spiral Armored Fiber Cable Yellow LSZH Micro Armored Cable Rodent Resistant FTTH

24 Cores SM Spiral Armored Fiber Cable Aque LSZH Micro Armored Cable FTTH Rodent Resistant​,

Micro Armored Fiber Cable, Ruggedized Fiber Cable, FTTH, FTTB



With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites.

Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious



Because with metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Item

Parameter

Fiber Count

24 Cores

Inner Jacket

Yellow 2.0mm

Armored Tube

5.8±0.2mm

Cable diameter

8.5±0.3mm

Cable jacket

Yellow LSZH     (TPU or PVC  also can be provided)

Temperature

-40℃~80℃

Crush (N/10cm)

Long-term 1000, short-term 2000

Bend radius (mm)

Dynamic 20D, Static 10D

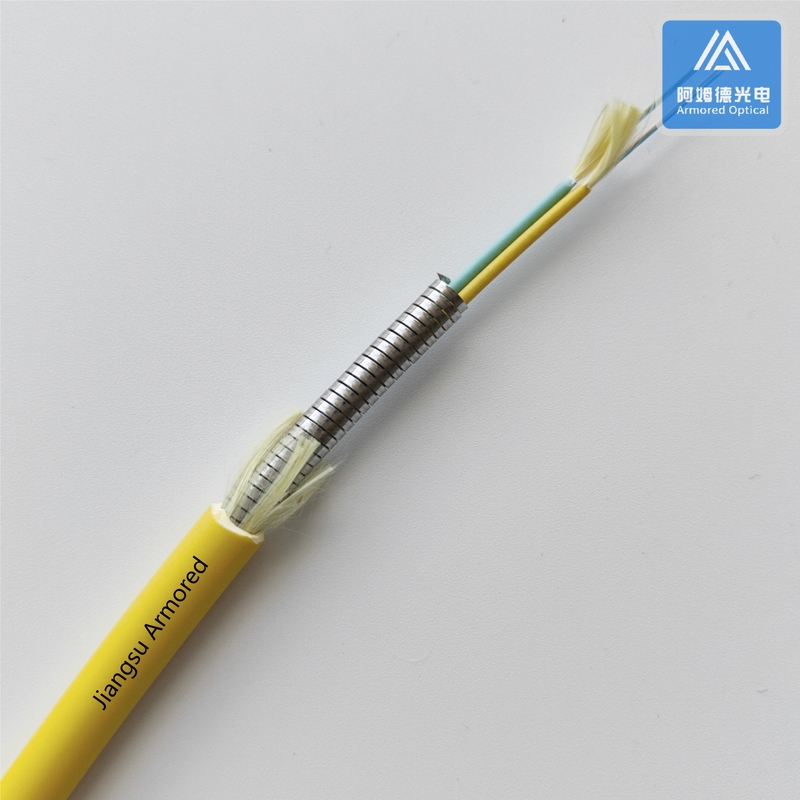

24 Cores SM Spiral Armored Fiber Cable Yellow LSZH  Micro Armored Cable Rodent Resistant FTTH 0

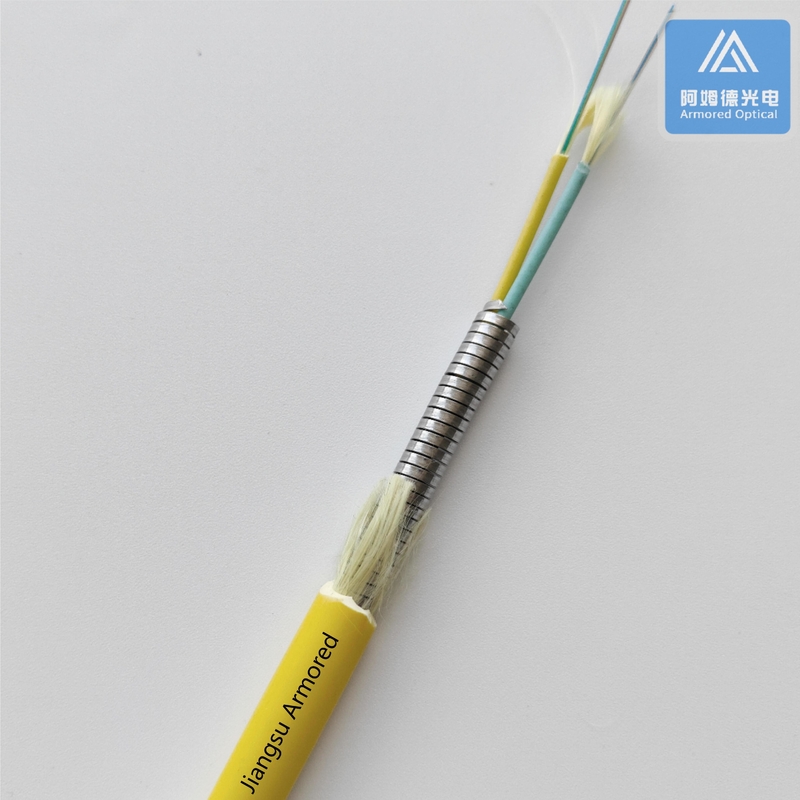

24 Cores SM Spiral Armored Fiber Cable Yellow LSZH  Micro Armored Cable Rodent Resistant FTTH 1





Feature

  • Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • Spiral armored fiber cable has greater durability in resisting pulls, strains and impacts from cabling installation.
  • Different jacket material fit for different environments.
  • UV-resistant
  • It's designed for harsh environments where regular fiber optical cables couldn't work well.



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical
  • Used in communications in data center
  • Used in the open field, connections between optical equipment.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
