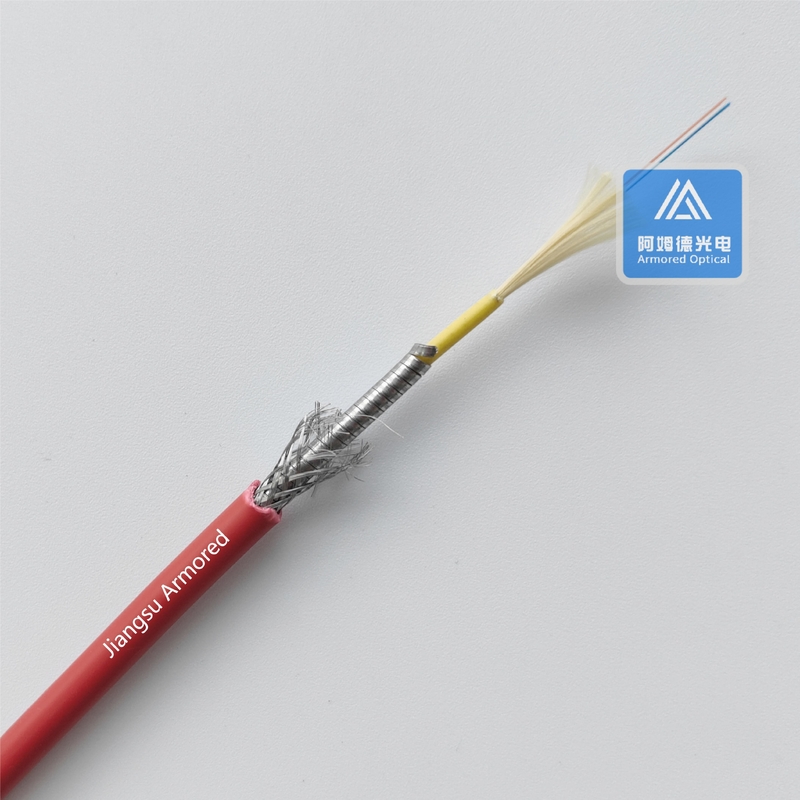

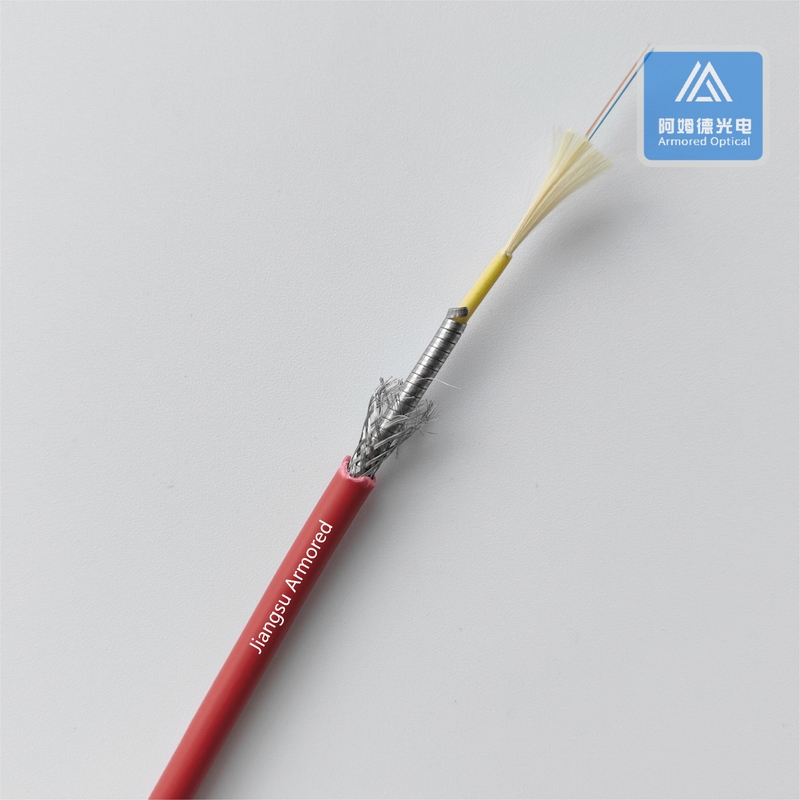

8 Cores Single Mode Spiral Micro Armored Fiber Cable  5.0mm Red LSZH Rodent Resistant

8 Cores Single Mode Spiral Micro Armored Fiber Cable 5.0mm Red LSZH Rodent Resistant

  • Name
    8 Cores Armored Fiber Cable
  • Fiber Mode
    Single Mode
  • Inner Jacket
    Yellow LSZH
  • Outer Jacket
    LSZH
  • Color
    Red
  • Diameter
    5mm
  • Armored Tube Material
    Stainless Steel
  • Feature
    Rodent Resistant
  • Flame Rating
    IEC60332-1-2
  • Application
    FTTH, Datacenter
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    8F-B1.3-LSZH-5.0-Red
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    Plywood Drum and Pallet. By Sea or Air shipment
  • Delivery Time
    2 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    30KM per Day

8 Cores Single Mode Spiral Micro Armored Fiber Cable 5.0mm Red LSZH Rodent Resistant

8F 5.0mm Spiral Micro Armored Fiber Cable, Red LSZH Jacket FTTH Rodent Resistant

Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Armored Fiber Optical Cable

Double Jacket, Double Armored Fiber Cable



Because with metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC), making them adaptable to different networking and communications equipment.



Item

Parameter

Fiber Count

8 cores

Inner jacket Material

 LSZH

Armored Tube

 SUS material

Cable Diameter

5.0±0.2mm

Cable Jacket

Red LSZH

Temperature

-40℃~80℃

Crush (N/10cm)

Long-term 1000, short-term 3000

Bend radius (mm)

Dynamic 20D, Static 10D



8 Cores Single Mode Spiral Micro Armored Fiber Cable  5.0mm Red LSZH Rodent Resistant 0





Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
