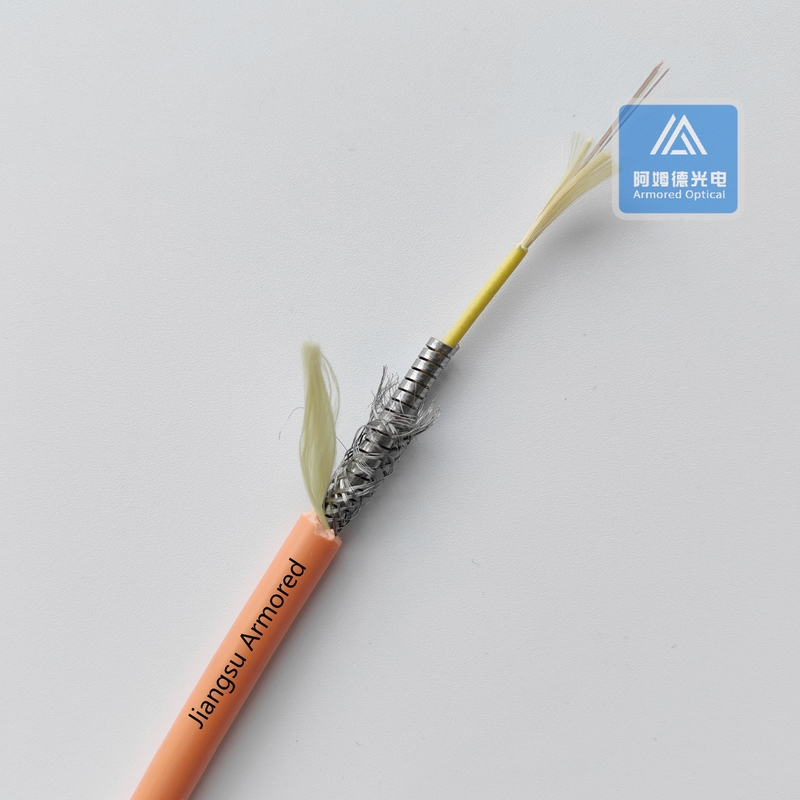

12 Cores MM Spiral Armored Fiber Cable Orange LSZH 6.5mm  Micro Armored Cable FTTH Rodent Resistant

12 Cores MM Spiral Armored Fiber Cable Orange LSZH 6.5mm Micro Armored Cable FTTH Rodent Resistant

  • Name
    12 Cores Armored Fiber Cable
  • Fiber Mode
    OM1
  • Armored Tube Material
    Stainless Steel
  • Diameter
    6.5mm
  • Outer Jacket
    LSZH
  • Color
    Orange
  • Inner Jacket Color
    Yellow LSZH
  • Inner Jacket
    2.0mm
  • Flame Rating
    IEC60332-1-2
  • Feature
    Rodent Resistant
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    12F-OM1-6.5-LSZH
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    1000m Per Drum, With or Without Carton, By Sea or Air
  • Delivery Time
    3 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    300km per Day

12 Cores MM Spiral Armored Fiber Cable Orange LSZH 6.5mm Micro Armored Cable FTTH Rodent Resistant

12 Cores OM1 Spiral Armored Fiber Cable Orange LSZH, Micro Armored Cable FTTH Rodent Resistant​,

Micro Armored Fiber Cable, Ruggedized Fiber Cable, FTTH, FTTX,  Double Jacket Armored Fiber Cable

Double Armored Fiber Cable



With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites.

Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious



Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.



Item

Parameter

Fiber Count

12 Cores

Inner Jacket

Yellow 2.0mm

Armored Tube

OD 2.8 ±0.2mm, Stainless Steel

Cable diameter

6.5 ±0.3mm

Cable jacket

Orange LSZH

Temperature

-40℃~80℃

Crush (N/10cm)

Long-term 1000, short-term 2000

Bend radius (mm)

Dynamic 20D, Static 10D

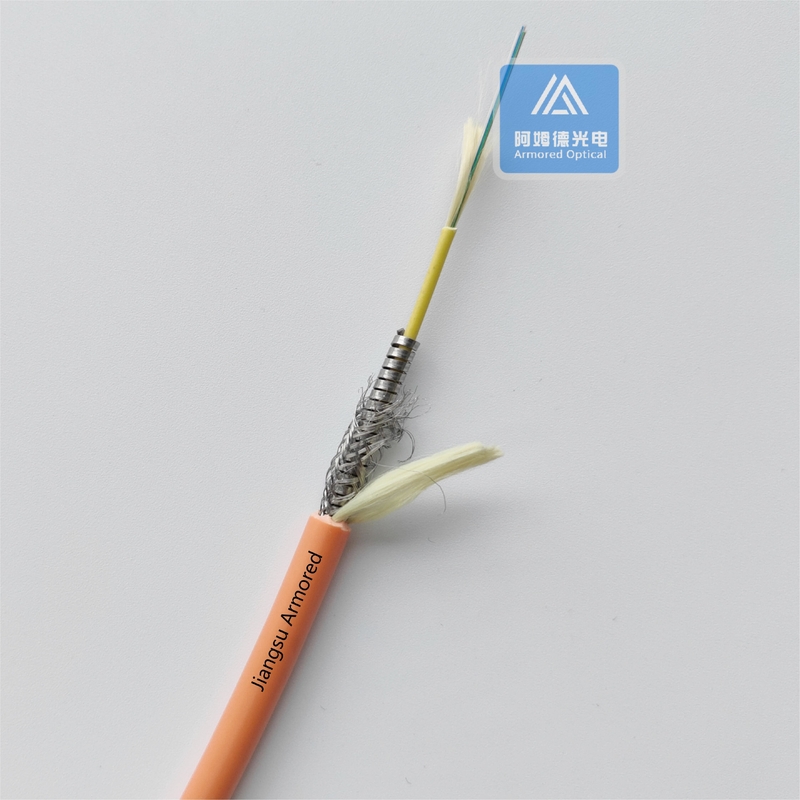

12 Cores MM Spiral Armored Fiber Cable Orange LSZH 6.5mm  Micro Armored Cable FTTH Rodent Resistant 0





Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
