6 Cores Single Mode Spiral Micro Armored Fiber Cable  5.0mm Blue LSZH Rodent Resistant

6 Cores Single Mode Spiral Micro Armored Fiber Cable 5.0mm Blue LSZH Rodent Resistant

  • Name
    6 Cores Armored Fiber Cable
  • Fiber Mode
    Single Mode
  • Armored Tube Material
    Stainless Steel
  • Inner Jacket
    Orange LSZH
  • Color
    Blue
  • Outer Jacket
    LSZH
  • Diameter
    5.0mm
  • Flame Rating
    IEC60332-1-2
  • Application
    FTTH, Datacenter
  • Feature
    Rodent Resistant
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    6F-B6a2-LSZH-5.0-Blue
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    Plywood Drum and Pallet. By Sea or Air shipment
  • Delivery Time
    2 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    30KM per Day

6 Cores Single Mode Spiral Micro Armored Fiber Cable 5.0mm Blue LSZH Rodent Resistant

6F 5.0mm Spiral Micro Armored Fiber Cable, Blue LSZH Jacket FTTH Rodent Resistant

Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Armored Fiber Optical Cable

Double Jacket, Double Armored Fiber Cable



With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC), making them adaptable to different networking and communications equipment.



Item Unit Dimension Remark
Tight Fiber mm 0.25±0.05 6 pcs
Inner Jacket OD mm 2.0 ± 0.1 LSZH

Spiral Armored

Tube OD

mm 2.8 ± 0.1 Stainless Steel
Outer Jacket mm 5.0 ± 0.2 LSZH
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

Temperature -30℃~+80℃
Bend Radius mm Dynamic 20D, Static 10D

Crush N/10cm Static 1000, Dynamic 3000

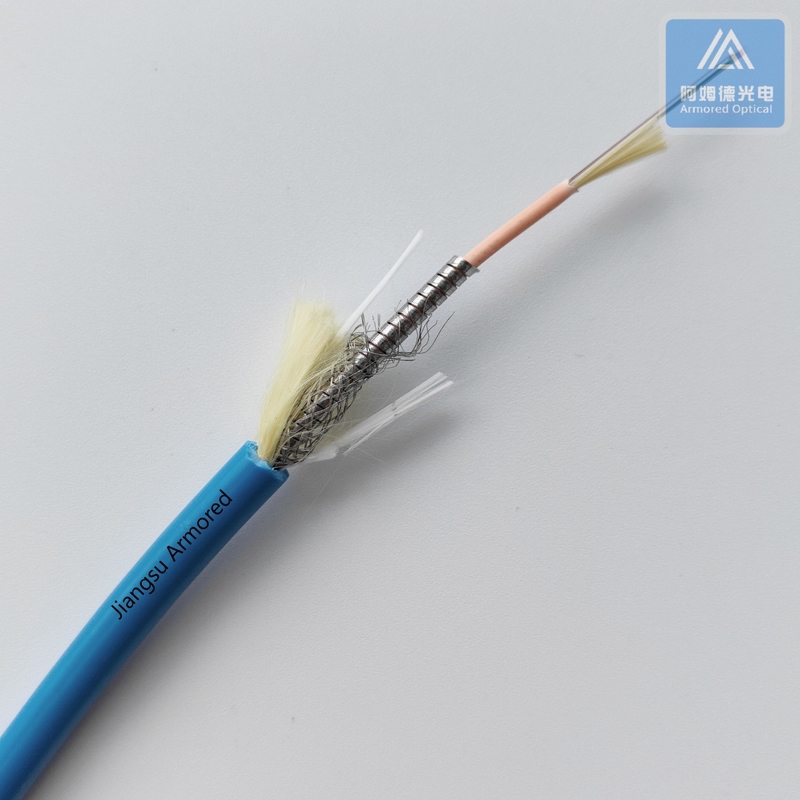

6 Cores Single Mode Spiral Micro Armored Fiber Cable  5.0mm Blue LSZH Rodent Resistant 0

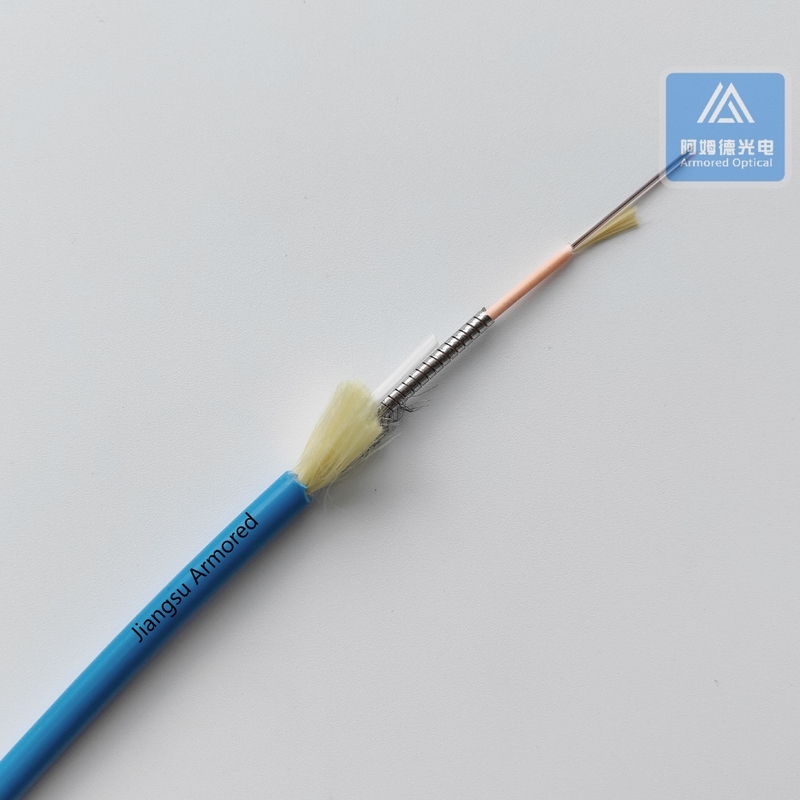

6 Cores Single Mode Spiral Micro Armored Fiber Cable  5.0mm Blue LSZH Rodent Resistant 1





Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
