Duplex Armored Fiber Cable G652D Spiral Armored Tube Yellow LSZH  OD2.0 mm*2 pcs  ODN

Duplex Armored Fiber Cable G652D Spiral Armored Tube Yellow LSZH OD2.0 mm*2 pcs ODN

  • Name
    Duplex Armored Fiber Cable
  • Fiber Mode
    Single Mode
  • Armored Tube Material
    Stainless Steel
  • Outer Jacket
    Yellow LSZH
  • Diameter
    2.0mm *4.0mm
  • Flame Rating
    IEC60332-1-2
  • Application
    FTTH, Datacenter
  • Feature
    Rodent Resistant
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    2F-B1.3-LSZH-2.0x2-Yellow
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    Plywood Drum and Pallet. By Sea or Air shipment
  • Delivery Time
    2 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    30KM per Day

Duplex Armored Fiber Cable G652D Spiral Armored Tube Yellow LSZH OD2.0 mm*2 pcs ODN

Duplex Armored Fiber Cable G652D Spiral Armored Tube Yellow LSZH OD2.0 mm*2 pcs ODN​ FTTH Rodent Resistant

Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Armored Fiber Optical Cable



With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC), making them adaptable to different networking and communications equipment.



Item Unit Dimension Remark
Optical fiber mm 0.6±0.05 2 pc
Spiral armored tube OD mm 1.2±0.1 Stainless Steel
Aramid yarn decitex 1100D //
Outer jacket mm (2.0±0.1)*2pcs Material: black LSZH
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

MM: 3.5dB/km@850nm, 1.5dB/km@1300nm

Temperature -40℃~+80℃
Bend radius mm Dynamic 20D Static 10D
Tensile N Long-term 100 short-term 200
Crush N/10cm Long-term 1000 short-term 2000

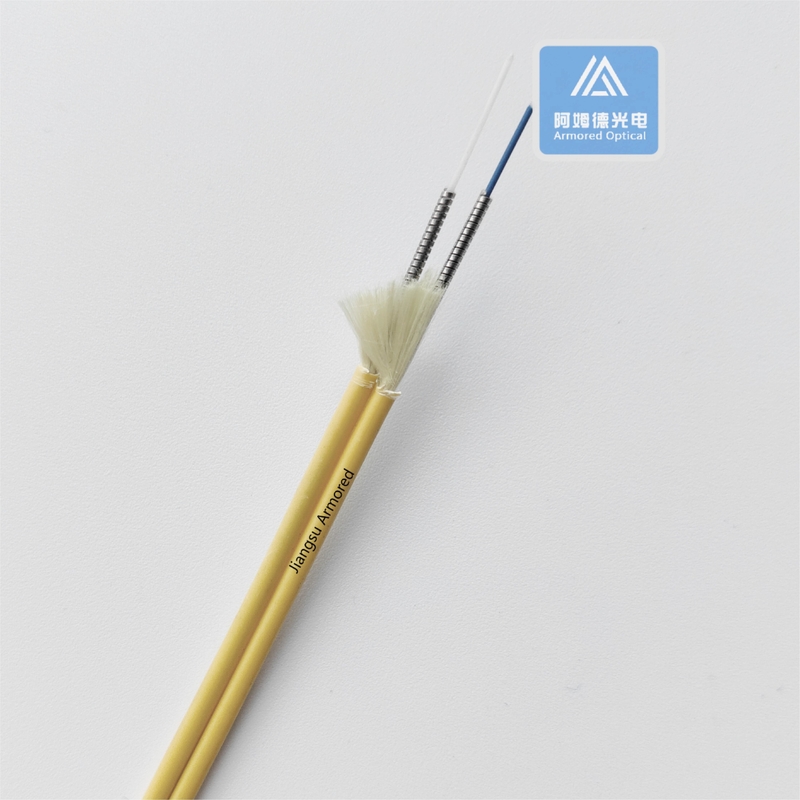

Duplex Armored Fiber Cable G652D Spiral Armored Tube Yellow LSZH  OD2.0 mm*2 pcs  ODN 0

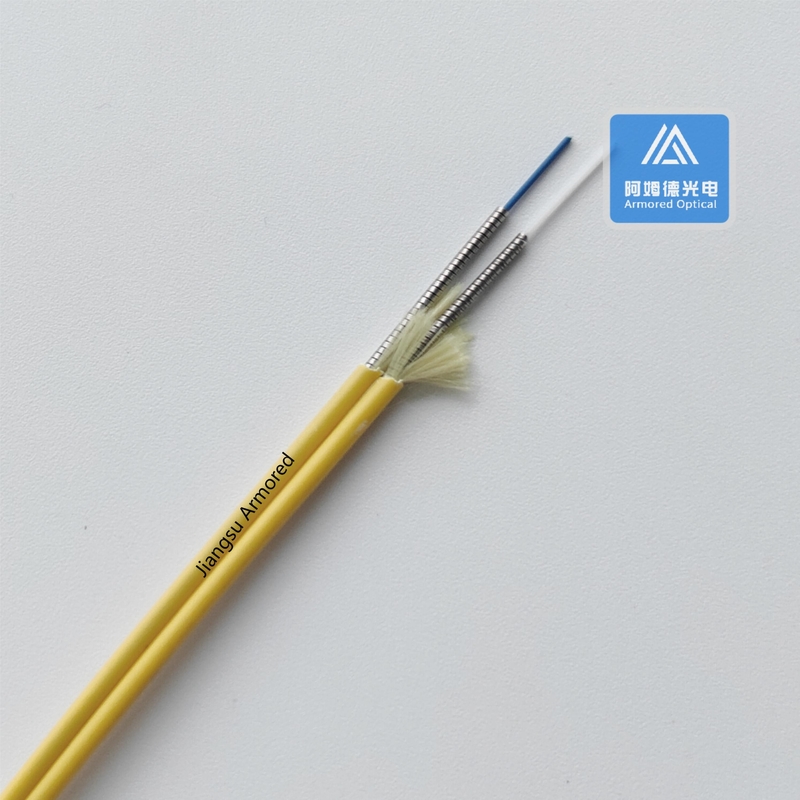

Duplex Armored Fiber Cable G652D Spiral Armored Tube Yellow LSZH  OD2.0 mm*2 pcs  ODN 1

Duplex Armored Fiber Cable G652D Spiral Armored Tube Yellow LSZH  OD2.0 mm*2 pcs  ODN 2





Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
