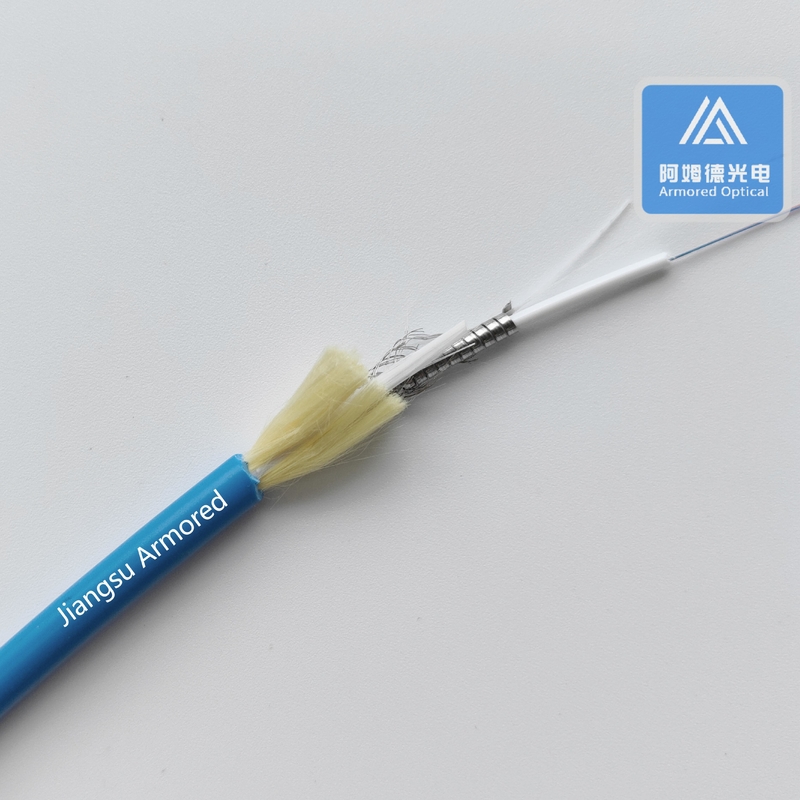

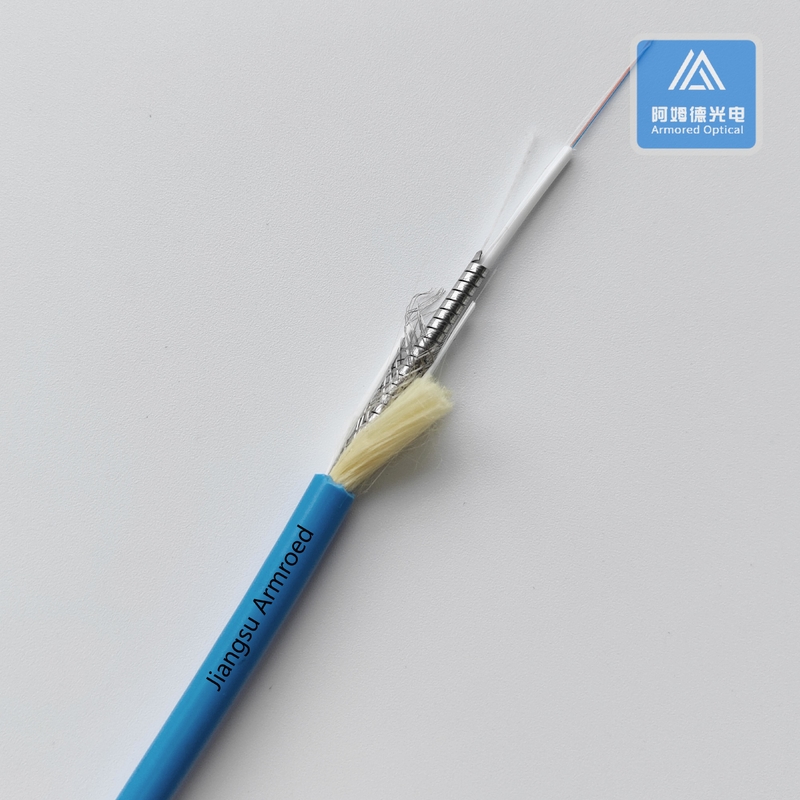

2 Cores SM Spiral Armored Fiber Cable 6.0mm Blue LSZH With PBT Tube Rodent Resistant
Duplex Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Armored Fiber Optical Cable
Double Jacket, Double Armored Fiber Cable, Water Proof Armored Fiber Cable
- Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.
- Micro armored fiber cable using high property aramid yarn, increasing tension property, and fit for long distance application.
- Micro armored fiber cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
- Different jacket material fit for different environments.
Item |
Unit |
Dimension |
Remark |
Tight Fiber |
mm |
0.25±0.05 |
2 pcs |
Inner Jacket OD |
mm |
2.0 ± 0.1 |
PBT Tube |
Spiral Armored
Tube OD
|
mm |
2.8 ± 0.1 |
Stainless Steel |
Outer Jacket |
mm |
6.0 ± 0.2 |
Blue LSZH |
Attenuation (Max.) |
dB/km |
SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm
|
Temperature |
℃ |
-30℃~+80℃ |
Bend Radius |
mm |
Dynamic 20D, Static 10D |
Crush |
N/10cm |
Static 1000, Dynamic 3000 |
Water Penetration
|
|
IEC 60794-1-2 F5
|


Applications
- Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
- Used in communications in data center, during ODF with armored patch cord and pigtail
- Used in the open field, connections between optical equipment.
- Widely used in FTTH access network
- Telecommunication Network
- CCTV Network
- Data communications Network
- Local Area Network
- Optical pig-tails and Patch cord assembly
- Optical devices and equipment
Advantage
- The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
- Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
- The spiral armoured cable with good tension and pressure performance.
- The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
