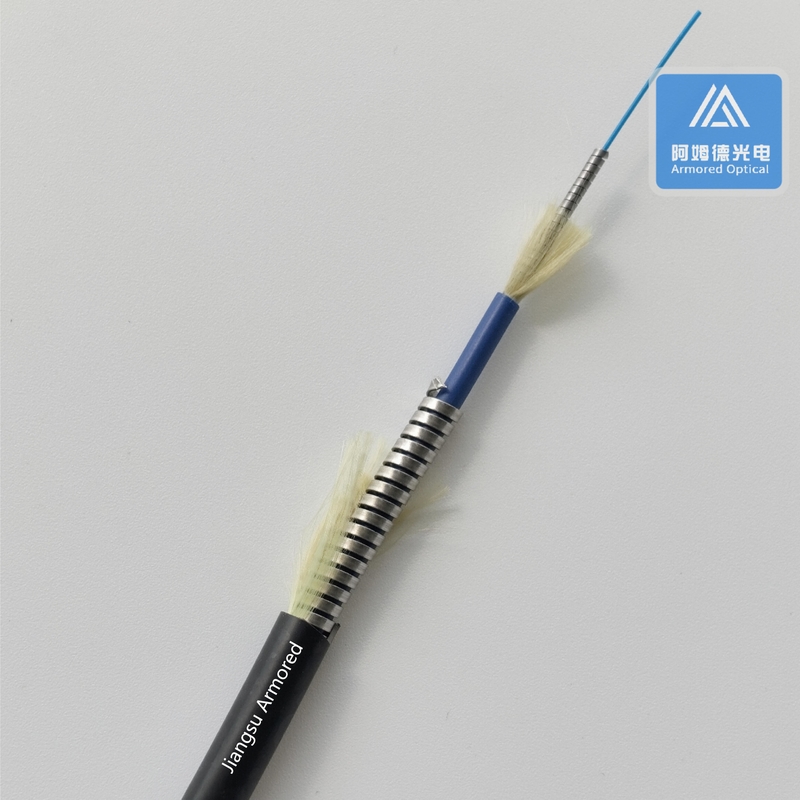

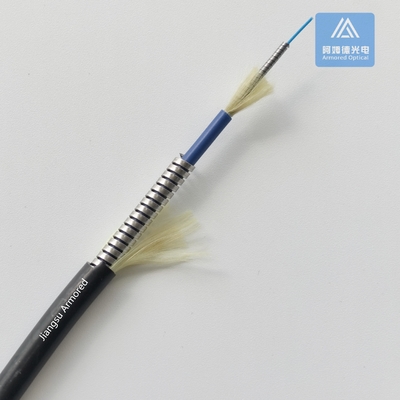

Simplex SM Armored Fiber Cable 7.0mm Black LSZH Double Armored Tube Rodent Resistant

Simplex SM Armored Fiber Cable 7.0mm Black LSZH Double Armored Tube Rodent Resistant

  • Name
    Simplex Armored Fiber Cable
  • Fiber Mode
    Single Mode
  • Armored Tube Material
    Stainless Steel
  • Inner Jacket
    Blue LSZH
  • Outer Diameter
    7.0mm
  • Outer Jacket Color
    Black
  • Outer Jacket
    LSZH
  • Flame Rating
    IEC60332-1-2
  • Application
    FTTH, Datacenter
  • Feature
    Rodent Resistant
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    1F-B6a2-LSZH-7.0-Black
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    Plywood Drum and Pallet. By Sea or Air shipment
  • Delivery Time
    3 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    30KM per Day

Simplex SM Armored Fiber Cable 7.0mm Black LSZH Double Armored Tube Rodent Resistant

Simplex SM Spiral Armored Fiber Cable 7.0mm Black LSZH  Rodent Resistant

Spiral Armored Fiber Cable, Micro Armored Fiber Optical Cable, Double Jacket, Double Armored Fiber Cable,



  • Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.
  • Micro armored fiber cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Micro armored fiber cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • Different jacket material fit for different environments.



Item Unit Dimension Remark
Tight Fiber mm 0.6±0.05 1 pcs
Inner Jacket OD mm 3.0 ± 0.1 Blue LSZH

Spiral Armored

Tube OD

mm 4.7 ± 0.1 Stainless Steel
Outer Jacket mm 7.0 ± 0.2 Black LSZH
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

Temperature -30℃~+80℃
Bend Radius mm Dynamic 20D, Static 10D
Crush N/10cm Static 1000, Dynamic 3000

Tensile

  Max.500N

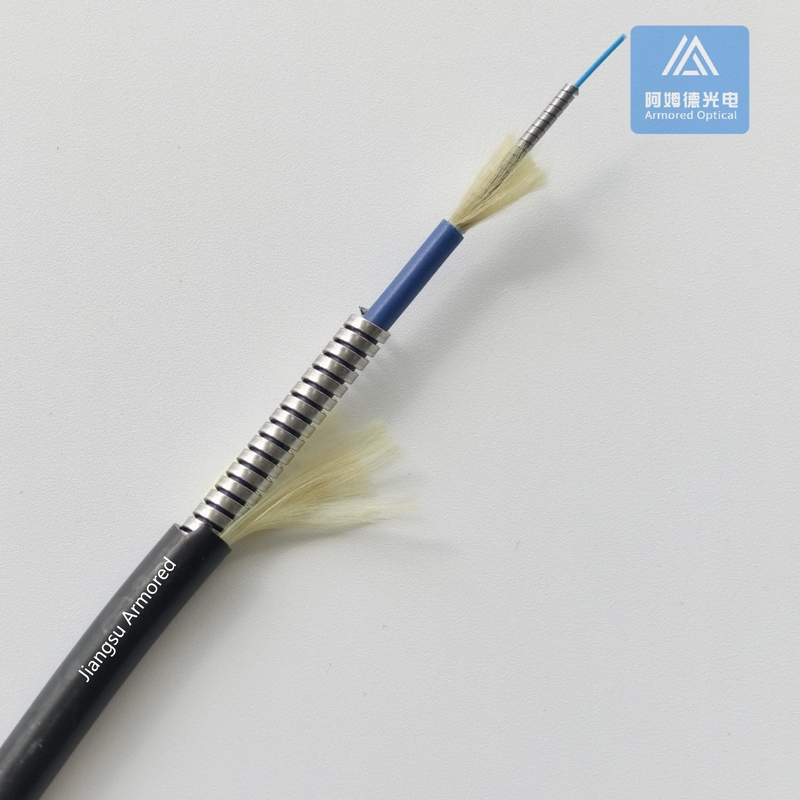

Simplex SM Armored Fiber Cable 7.0mm Black LSZH Double Armored Tube Rodent Resistant 0









Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
