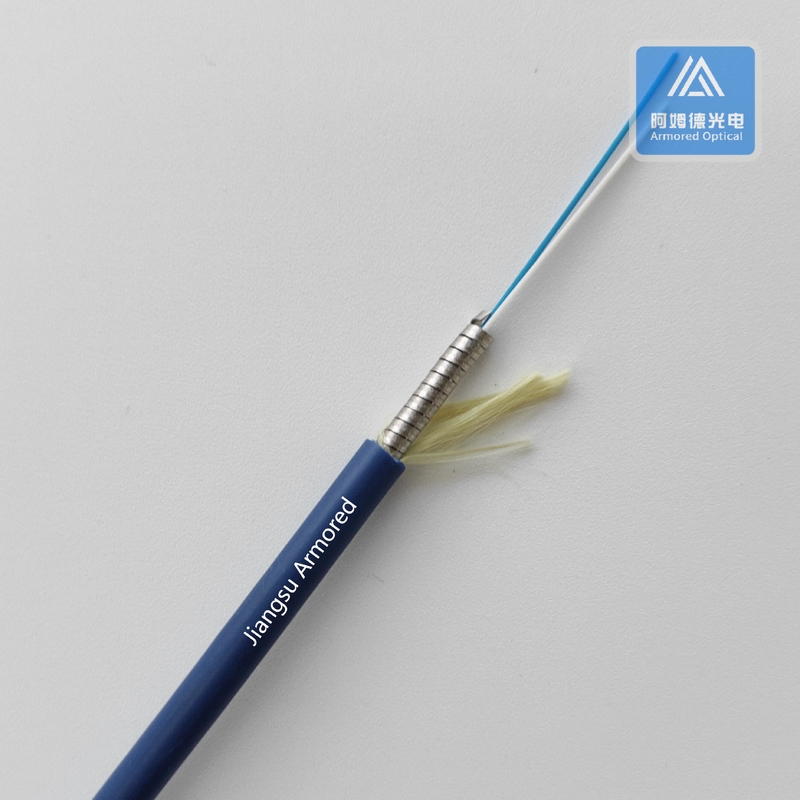

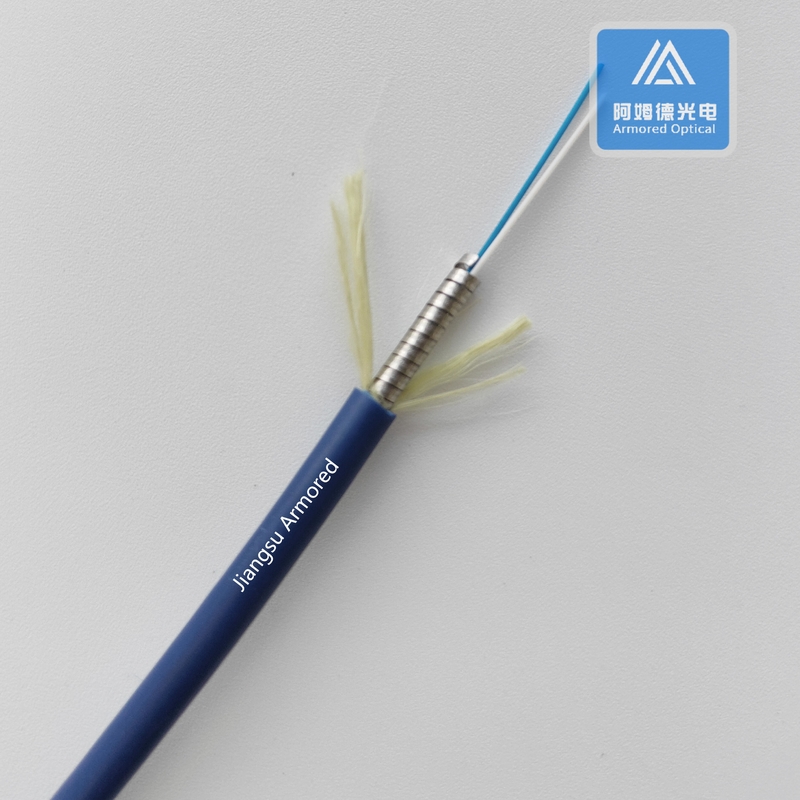

Duplex SM Armored Fiber Cable 3.0mm Blue PVC Rodent Resistant Flexbile Armored Fiber Cable FTTH
Spiral Armored Fiber Cable, Micro Armored Fiber Optical Cable, Flexbile Armored Fiber Cable,
- Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.
- Micro armored fiber cable using high property aramid yarn, increasing tension property, and fit for long distance application.
- Micro armored fiber cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
- Different jacket material fit for different environments.
Item |
Unit |
Size |
Remark |
Tight buffer Fiber |
mm |
0.6 ±0.05 |
2pcs, PVC buffer |
Spiral Armored Tube |
mm |
OD: 1.8±0.1
|
Stainless Steel |
Aramid Yarn |
Dtex |
1100D |
|
Outer Jacket Diameter |
mm |
3.0±0.1 |
PVC |
Attenuation (Max.) |
dB/km |
SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm
MM: 3.5dB/km@850nm, 1.5dB/km@1300nm
|
Temperature |
℃ |
-20 ~ +70℃ |
Tensile (Max.) |
N |
200 |
Crush (Max.) |
N/10cm |
Long-term 1000, short-term 2000 |
Rating |
|
OFCR, OFCP |


Applications
- Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
- Used in communications in data center, during ODF with armored patch cord and pigtail
- Used in the open field, connections between optical equipment.
- Widely used in FTTH access network
- Telecommunication Network
- CCTV Network
- Data communications Network
- Local Area Network
- Optical pig-tails and Patch cord assembly
- Optical devices and equipment
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
Advantage
- The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
- Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
- The spiral armoured cable with good tension and pressure performance.
- The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
