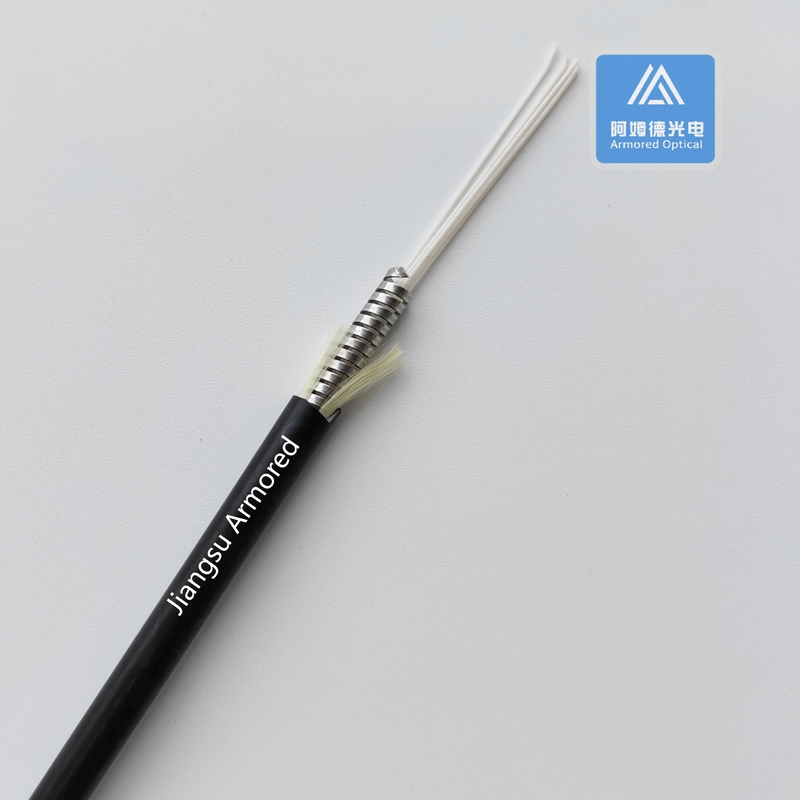

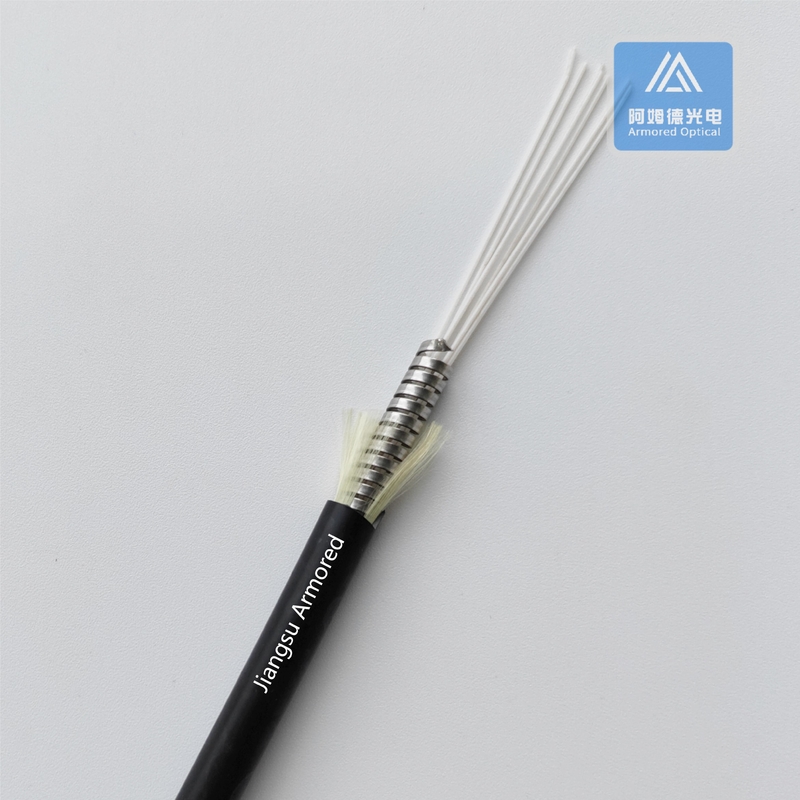

6 Cores Armored Fiber Cable 6.5mm Black PVC  Rodent Resistant  Flexbile Armored Fiber Cable FTTH

6 Cores Armored Fiber Cable 6.5mm Black PVC Rodent Resistant Flexbile Armored Fiber Cable FTTH

  • Name
    Armored Fiber Cable
  • Fiber Counts
    6 Cores
  • Fiber Mode
    Single Mode And Multi Mode
  • Armored Tube Material
    Stainless Steel
  • Outer Diameter
    6.5mm
  • Outer Jacket Color
    Black
  • Outer Jacket
    PVC
  • Flame Rating
    IEC60332-1-2, OFCR, Or OFCP
  • Application
    FTTH, Datacenter
  • Feature
    Rodent Resistant
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    6F-B1.3-PVC-6.5-Black
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    Plywood Drum and Pallet. By Sea or Air shipment
  • Delivery Time
    TBA
  • Payment Terms
    T/T
  • Supply Ability
    300KM per Month

6 Cores Armored Fiber Cable 6.5mm Black PVC Rodent Resistant Flexbile Armored Fiber Cable FTTH

6 Cores Armored Fiber Cable 6.5mm Black PVC Rodent Resistant Flexbile Armored Fiber Cable FTTH

Spiral Armored Fiber Cable, Micro Armored Fiber Optical Cable, Flexbile Armored Fiber Cable,



  • Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.
  • Micro armored fiber cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Micro armored fiber cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • Different jacket material fit for different environments.
Item Unit Size Remark
Tight buffer Fiber mm 0.6 ±0.05 6pcs, PVC buffer
Spiral Armored Tube mm

OD: 4.7 ±0.1

Stainless Steel
Aramid Yarn Dtex 1100D
Outer Jacket Diameter mm 6.5 ±0.2 PVC
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

MM: 3.5dB/km@850nm, 1.5dB/km@1300nm

Temperature -20 ~ +70℃
Tensile (Max.) N 200
Crush (Max.) N/10cm Long-term 1000, short-term 2000
Rating   OFCR, OFCP


6 Cores Armored Fiber Cable 6.5mm Black PVC  Rodent Resistant  Flexbile Armored Fiber Cable FTTH 0







Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
