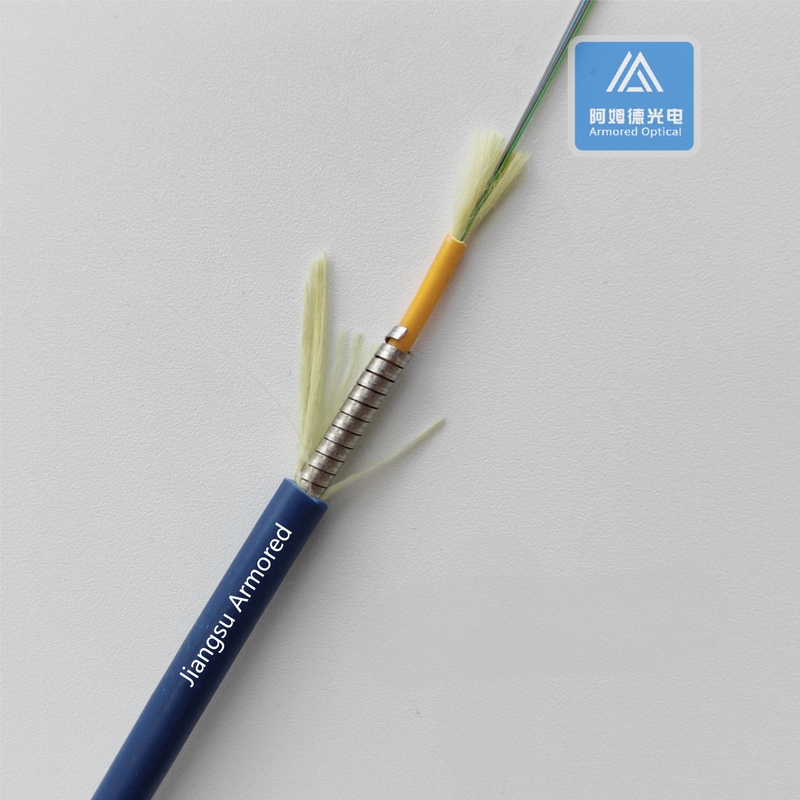

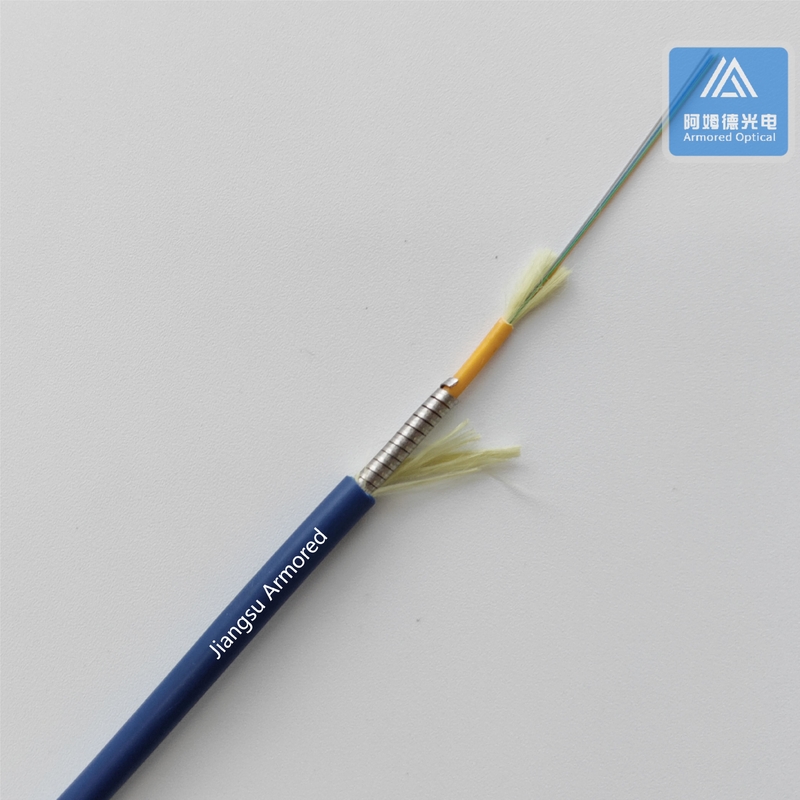

12 Cores 4.5mm Spiral Micro Armored Fiber Cable, Blue PVC Jacket FTTH Rodent Resistant
Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Armored Fiber Optical Cable, Double Jacket
With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.
Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.
| Item |
Unit |
Dimension |
Remark |
| Tight Fiber |
mm |
0.25±0.05 |
12 pcs |
| Inner Jacket OD |
mm |
2.0 ± 0.1 |
LSZH |
|
Spiral Armored
Tube OD
|
mm |
2.8 ± 0.1 |
Stainless Steel |
| Outer Jacket |
mm |
4.5 ± 0.2 |
Blue PVC |
| Attenuation (Max.) |
dB/km |
0.4dB/km@1310nm, 0.3dB/km@1550nm
|
| Temperature |
℃ |
-20℃~+70℃ |
| Bend Radius |
mm |
Dynamic 20D, Static 10D |
| Tensile (Max.) |
|
400N |
| Crush |
N/10cm |
Static 1000, Dynamic 3000 |
Applications
- Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
- Used in communications in data center, during ODF with armored patch cord and pigtail
- Used in the open field, connections between optical equipment.
- Widely used in FTTH access network
- Telecommunication Network
- CCTV Network
- Data communications Network
- Local Area Network
- Optical pig-tails and Patch cord assembly
- Optical devices and equipment
Advantage
- The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
- Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
- The spiral armoured cable with good tension and pressure performance.
- The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
