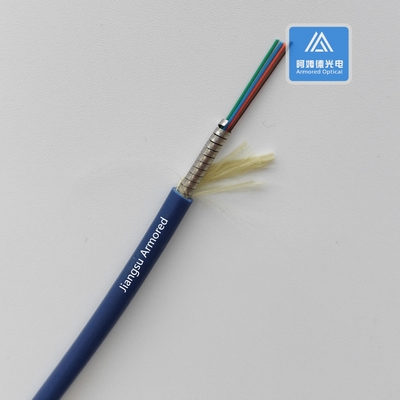

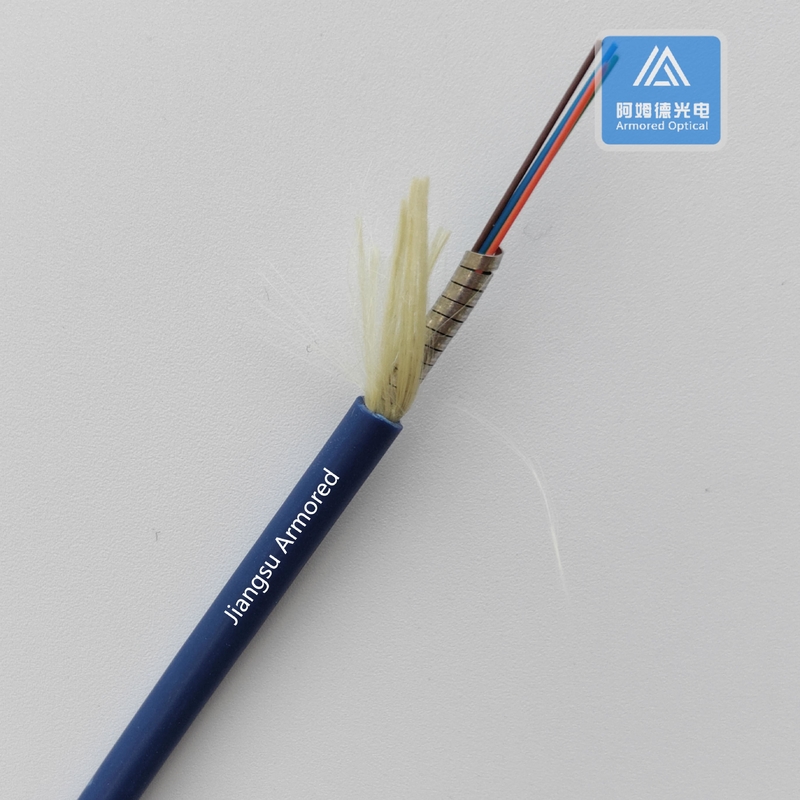

4F 4.8mm Spiral Micro Armored Fiber Cable, Blue LSZH Jacket FTTH Rodent Resistant
Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Double Jacke Armored Fiber Cable, Comply with ROHS
With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.
With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites. Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious.
Item | Unit | Dimention | Remark |
Optical fiber | mm | 0.6±0.05 | 4pc |
Spiral armored tube OD | mm | 2.5 ± 0.1 | Stainless Steel |
Aramid yarn | decitex | 1000D | |
Outer jacket | mm | 4.8 ±0.2 | Blue PVC |
Attenuation (Max.) | dB/km |
SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm MM: 3.5dB/km@850nm, 1.5dB/km@1300nm |
|
Temperature | ℃ | -20℃~+70℃ | |
Bend radius | mm | Dynamic 20D, Static 10D | |
Tensile | N | Max. 400 | |
Crush | N/10cm | Long-term 1000, short-term 3000 |
