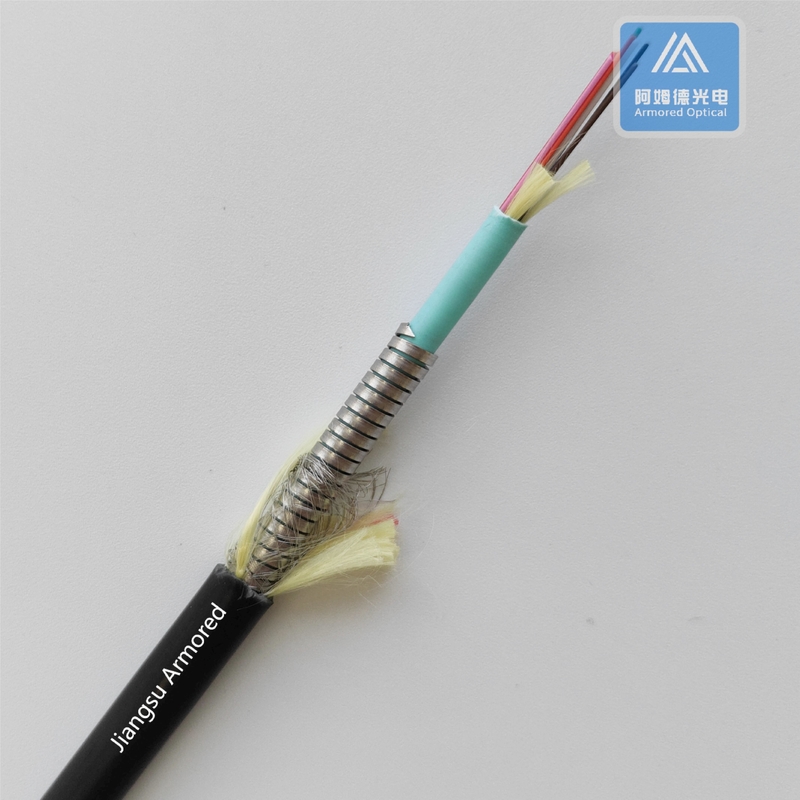

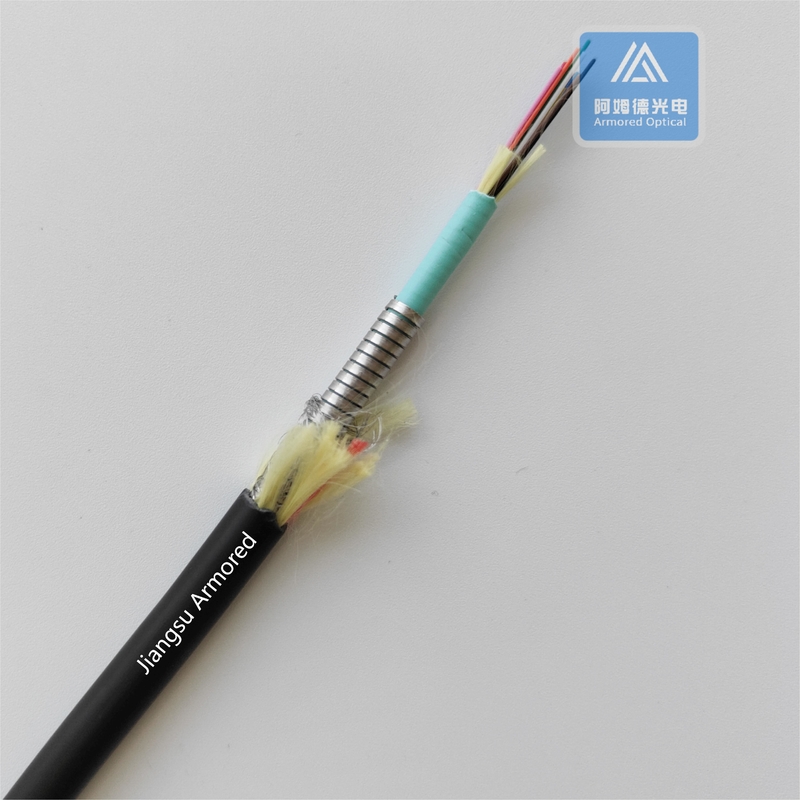

12 Cores Multi Mode Spiral Armored Fiber Cable 7.5mm Black TPU Rodent Resistant FTTH Micro Armored Cable

12 Cores Multi Mode Spiral Armored Fiber Cable 7.5mm Black TPU Rodent Resistant FTTH Micro Armored Cable

  • Name
    12 Cores Armored Fiber Cable
  • Fiber Mode
    OM3
  • Fiber OD
    0.6mm Tight Buffer
  • Tight Buffer Material
    LSZH
  • Fiber Color
    Blue, Orange, Green, Brown, Grey, White,etc.
  • Inner Jacket Color
    Aque
  • Inner Jacket Material
    LSZH
  • Spiral Armored Tube Material
    Stainless Steel
  • Outer Jacket
    Black TPU
  • Outer Diameter
    7.5 Mm
  • Feature
    Rodent Resistant
  • Flame Rating
    IEC60332-1-2, OFCR, Or OFCP
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    12F-OM3-U-7.5-Black
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    Plywood Drum and Pallet. By Sea or Air shipment
  • Delivery Time
    2 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    50km per Day

12 Cores Multi Mode Spiral Armored Fiber Cable 7.5mm Black TPU Rodent Resistant FTTH Micro Armored Cable

12 Cores Multi Mode Spiral Armored Fiber Cable 7.5mm Black TPU​ FTTH Rodent Resistant

Double Armored Micro Armored Fiber Cable, Spiral Armored Fiber Cable,

Double Jacket Armored Fiber Cable, Comply with ROHS



With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.





With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites. Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious.





Item Unit Dimension Remark
Tight fiber mm 0.6±0.05 12 pcs
Aramid yarn decitex 1100 3 pc
Inner jacket OD mm

4.2 ± 0.2

Material: LSZH
Spiral armored tube OD mm

5.3  ± 0.1

Stainless Steel
Metal braiding mm // Stainless Steel
Aramid yarn decitex 1100
Rip cord decitex 3*1100
Outer jacket mm 7.5 ± 0.3 TPU
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

MM: 3.5dB/km@850nm, 1.5dB/km@1300nm

Temperature

-45℃~+90℃

Bend radius mm Dynamic 20D Static 10D
Tensile N Max. 800
Crush N/10cm Long-term 1000 short-term 3000


12 Cores Multi Mode Spiral Armored Fiber Cable 7.5mm Black TPU Rodent Resistant FTTH Micro Armored Cable 0





Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, IEC60332, etc.
