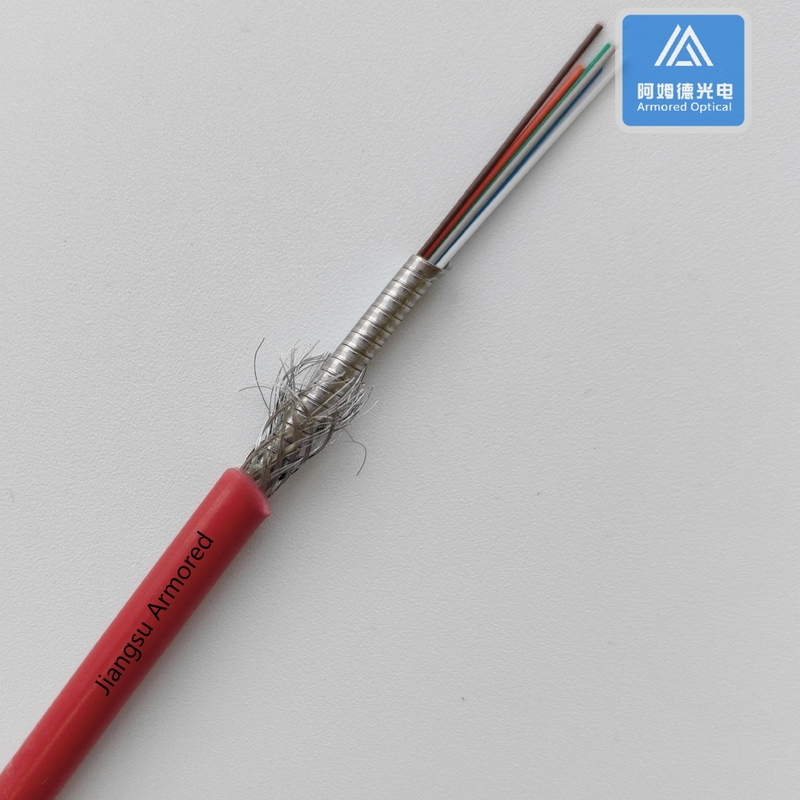

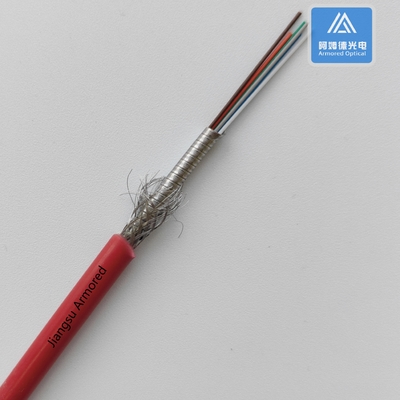

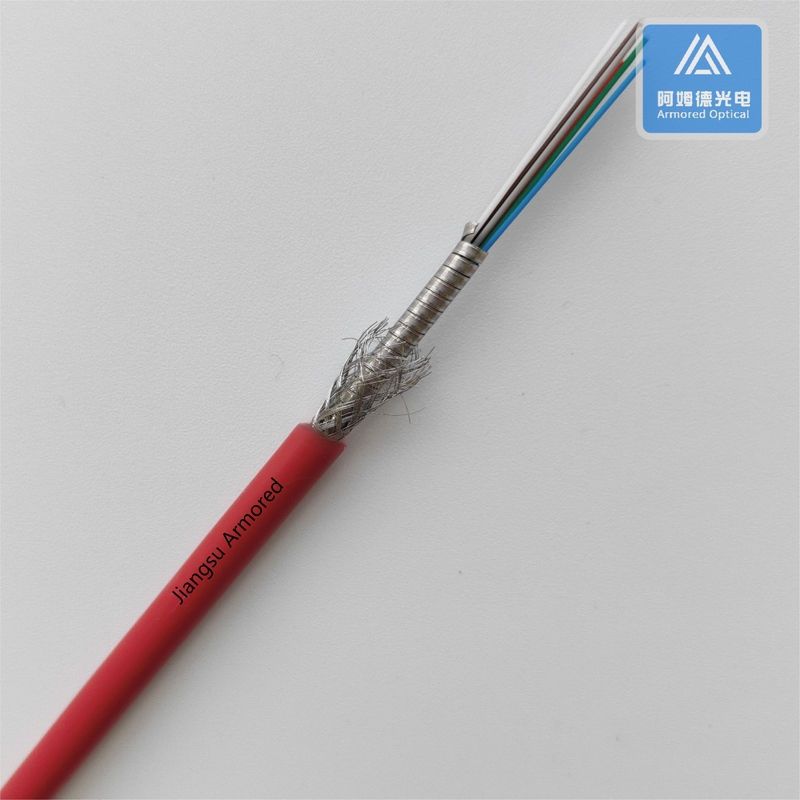

6 Cores Single Mode Spiral Armored Fiber Cable 5.0mm Red LSZH Rodent Resistant FTTH With Braiding Mesh
Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Double Armored Armored Fiber Cable, Comply with ROHS
With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.
With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites. Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious.
| Item |
Unit |
Dimension |
Remark |
| Optical fiber |
mm |
0.6±0.05 |
6 pc |
| Spiral Armored Tube OD |
mm |
2.8 ±0.1 |
Stainless Steel |
| Braiding Mesh |
// |
// |
Stainless Steel |
| Outer Jacket |
mm |
5.0 ±0.2 |
LSZH |
| Attenuation (Max.) |
dB/km |
SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm
MM: 3.5dB/km@850nm, 1.5dB/km@1300nm
|
| Temperature |
℃ |
-40℃~+80℃ |
| Bend radius |
mm |
Dynamic 20D, Static 10D |
| Tensile |
N |
Max. 500 |
| Crush |
N/10cm |
Long-term 1000, short-term 3000 |
Feature
- Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
- Spiral armored fiber cable has greater durability in resisting pulls, strains and impacts from cabling installation.
- Different jacket material fit for different environments.
- UV-resistant
Applications
- Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
- Used in communications in data center, during ODF with armored patch cord and pigtail
- Used in the open field, connections between optical equipment.
- Widely used in FTTH access network
- Telecommunication Network
- CCTV Network
- Data communications Network
- Local Area Network
- Optical pig-tails and Patch cord assembly
- Optical devices and equipment
Advantage
- The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
- Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
- The spiral armoured cable with good tension and pressure performance.
- The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, OFCR, IEC60332, etc.
