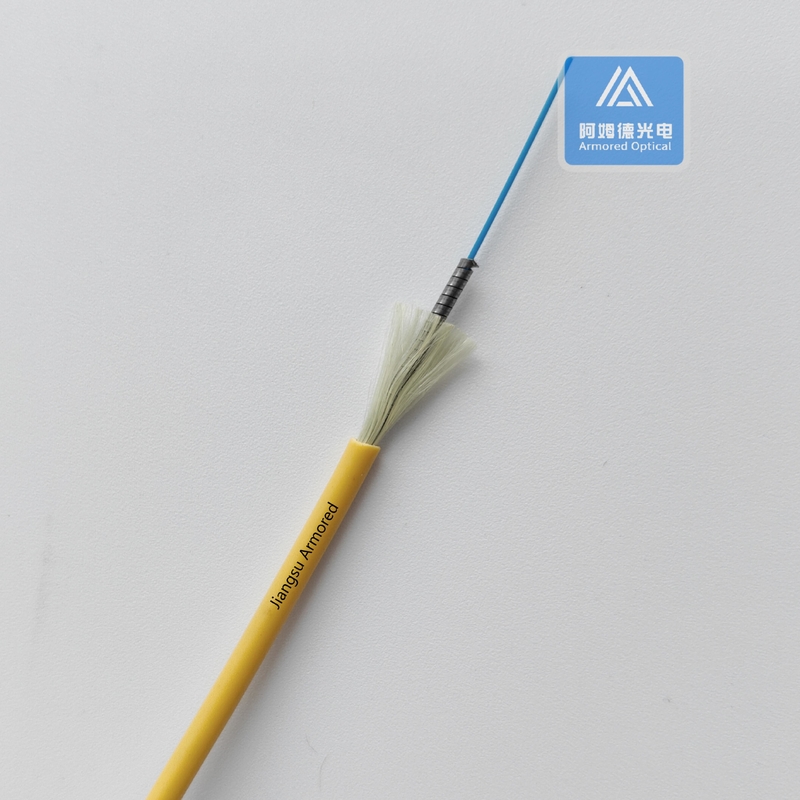

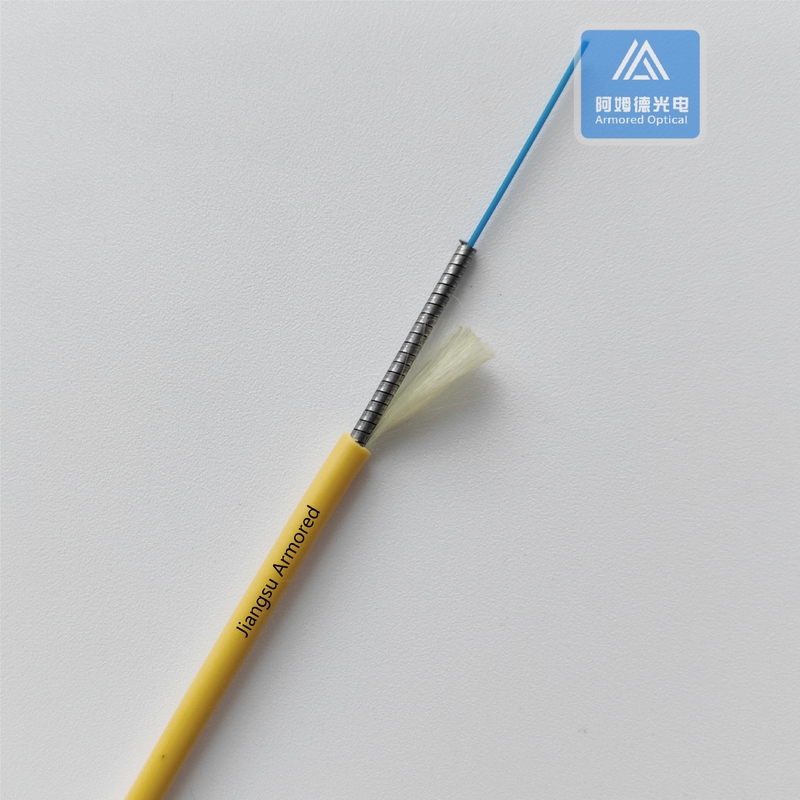

Simplex Single Mode Spiral Micro Armored Fiber Cable, Yellow LSZH Jacket FTTH Rodent Resistant
Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Flexible Armored Fiber Cable, Comply with ROHS
With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords.
Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.
Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC),
making them adaptable to different networking and communications equipment.
Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.
Item | Unit | Dimention | Remark |
Optical fiber od | mm | 0.6 or 0.9 ±0.05 | |
Spiral armored tube OD | mm | 1.7 ± 0.1 | Stainless Steel |
Aramid yarn | decitex | 1000D | |
Outer jacket | mm | 3.0 ±0.1 | LSZH |
Attenuation (Max.) | dB/km |
SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm MM: 3.5dB/km@850nm, 1.5dB/km@1300nm |
|
Temperature | ℃ | -30℃~+80℃ | |
Bend radius | mm | Dynamic 20D, Static 10D | |
Tensile | N | Max. 200 | |
Crush | N/10cm | Long-term 1000, short-term 2000 |
Armored Patch Cord or Pigtail Assembly
Many Colors can be provided as following,
