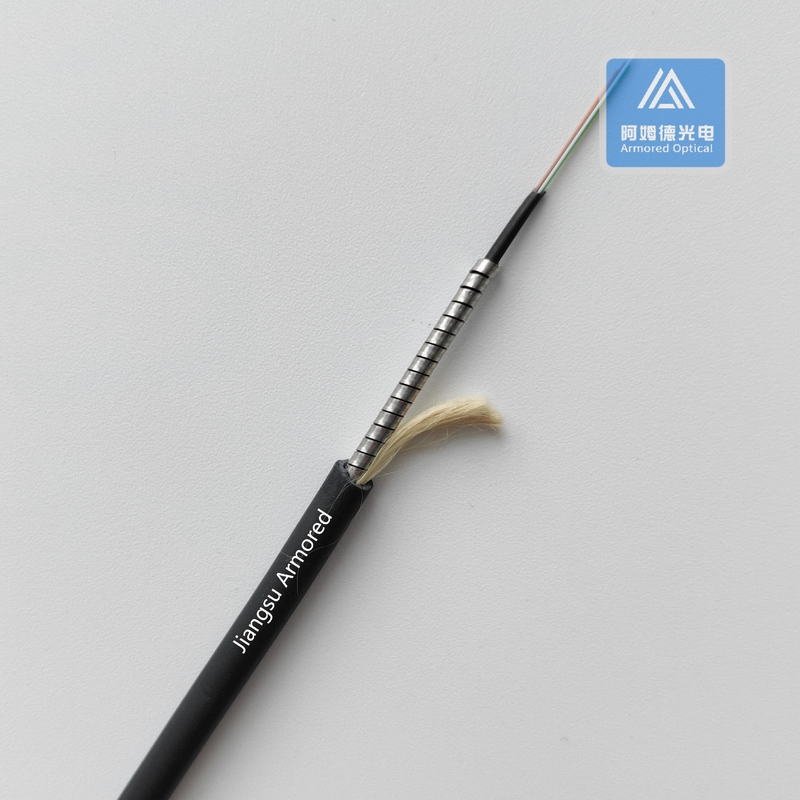

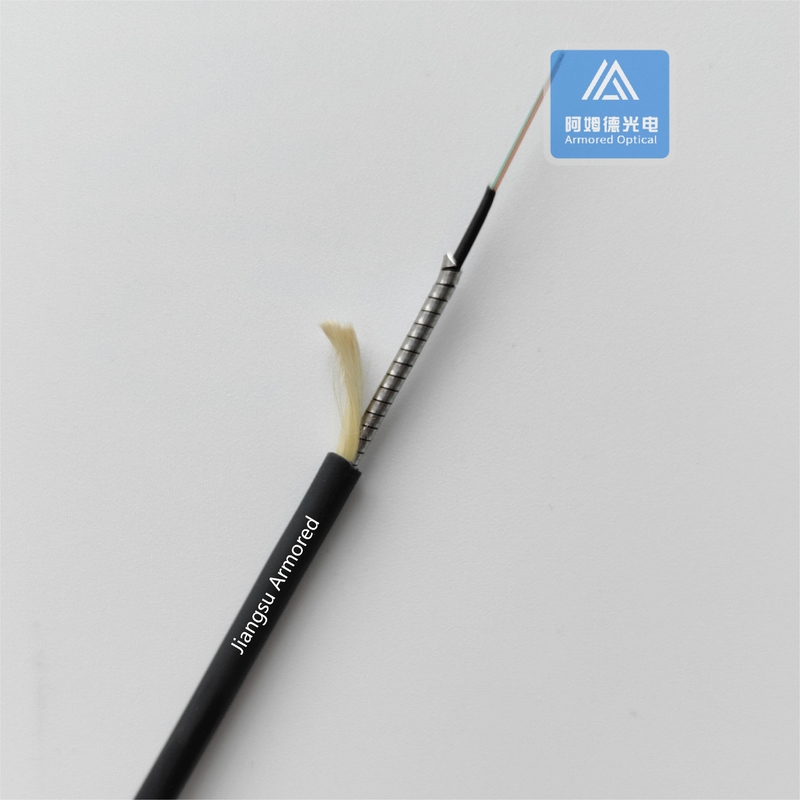

6 Cores SM Spiral Armored Fiber Cable 3.3mm Black TPU Rodent Resistant FTTH
4 Cores MM Spiral Armored Fiber Cable 6.5mm Black LSZH Rodent Resistant FTTH Braiding Mesh
Micro Double Jacket Armored Fiber Cable, Spiral Armored Fiber Cable,
Flexible Double Armored Armored Fiber Cable, Double Jacket Armored Fiber Cable,
With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords.
Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.
Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC),
making them adaptable to different networking and communications equipment.
Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.
Item | Unit | Dimention | Remark |
Optical fiber od | mm | 0.25 | 6 pcs |
Spiral armored tube OD | mm | 2.1 ± 0.1 | Stainless Steel |
Aramid yarn | decitex | 1000D | |
Outer jacket | mm | 3.3±0.1 | Black TPU |
Attenuation (Max.) | dB/km |
SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm MM: 3.5dB/km@850nm, 1.5dB/km@1300nm |
|
Temperature | ℃ | -40℃~+90℃ | |
Bend radius | mm | Dynamic 20D, Static 10D | |
Tensile | N | Max. 200 | |
Crush | N/10cm | Long-term 600, short-term 1200 |
