Armoured Fiber Optic Patch Cable OD 0.6mm 6 Core Ofc Cable

Armoured Fiber Optic Patch Cable OD 0.6mm 6 Core Ofc Cable

  • Highlight

    OD 0.6mm 6 core ofc cable

    ,

    armoured fiber optic patch cable

    ,

    fiber optic patch cable OD 0.6mm

  • Name
    6 Cores Armored Fiber Cable
  • Fiber Mode
    Multi Mode
  • Fiber OD
    0.6mm
  • Spiral Armored Tube Material
    Stainless Steel
  • Outer Jacket Color
    Grey
  • Outer Jacket
    PVC
  • Outer Diameter
    5.0mm
  • Feature
    Rodent Resistant
  • Flame Rating
    IEC60332-1-2, OFCR, Or OFCP
  • Application
    FTTH
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    6F-OM1-V-5.0- Grey
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    Plywood Drum and Pallet. By Sea or Air shipment
  • Delivery Time
    2 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    50km per Day

Armoured Fiber Optic Patch Cable OD 0.6mm 6 Core Ofc Cable

6 Cores MM Spiral Armored Fiber Cable 5.0mm Grey PVC Rodent Resistant FTTH Braiding Mesh

6 Cores MM Spiral Armored Fiber Cable 5.0mm Grey PVC Rodent Resistant

Micro Double Jacket Armored Fiber Cable, Spiral Armored Fiber Cable,

Flexible Double Armored Armored Fiber Cable,  FTTH Braiding Mesh



With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords.

Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC),

making them adaptable to different networking and communications equipment.



Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.





Item Unit Dimention Remark
Optical fiber od mm 0.6  6 pcs
Spiral armored tube OD mm 2.8± 0.1 Stainless Steel
Aramid yarn decitex 1000D
Outer jacket mm 5.0±0.2 PVC
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

MM: 3.5dB/km@850nm, 1.5dB/km@1300nm

Temperature -20℃~+70℃
Bend radius mm Dynamic 20D, Static 10D
Tensile N Max.  400
Crush N/10cm Long-term 1000, short-term 2000

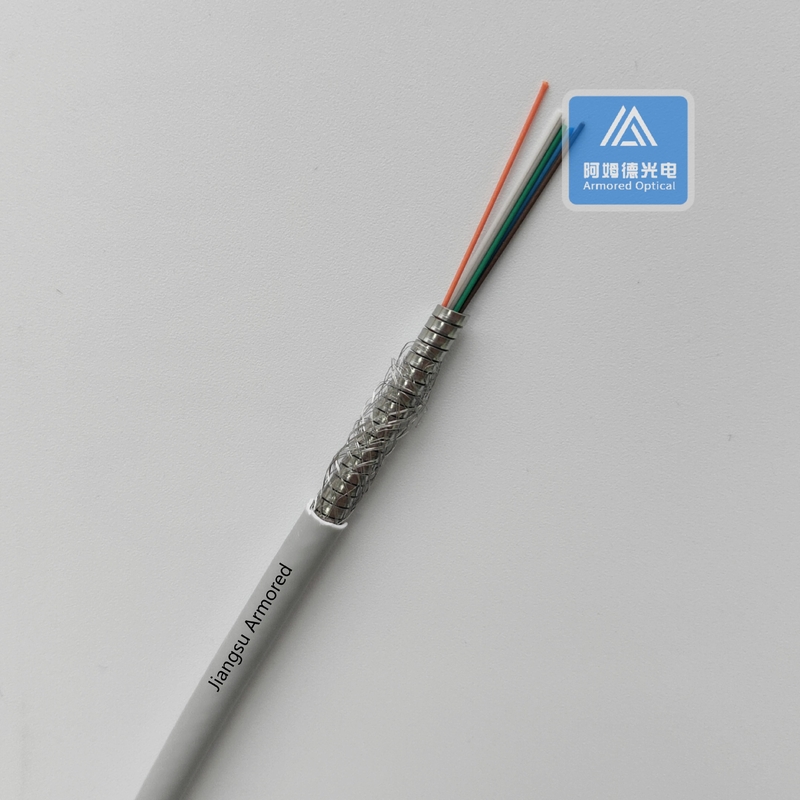

Armoured Fiber Optic Patch Cable OD 0.6mm 6 Core Ofc Cable 0



Armored Patch Cord Assembly

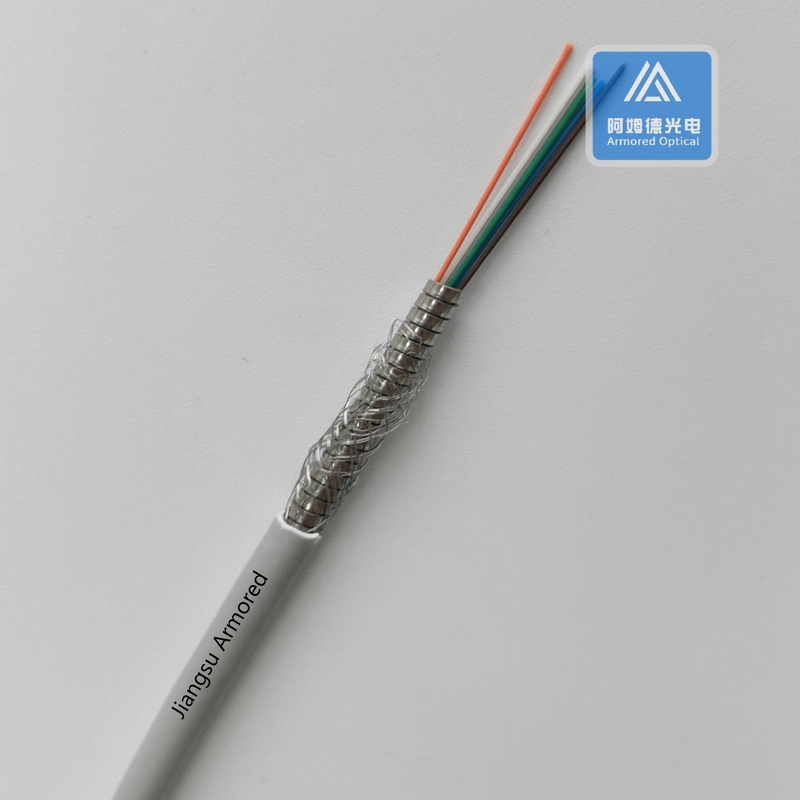

Armoured Fiber Optic Patch Cable OD 0.6mm 6 Core Ofc Cable 1

Armoured Fiber Optic Patch Cable OD 0.6mm 6 Core Ofc Cable 2





Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
