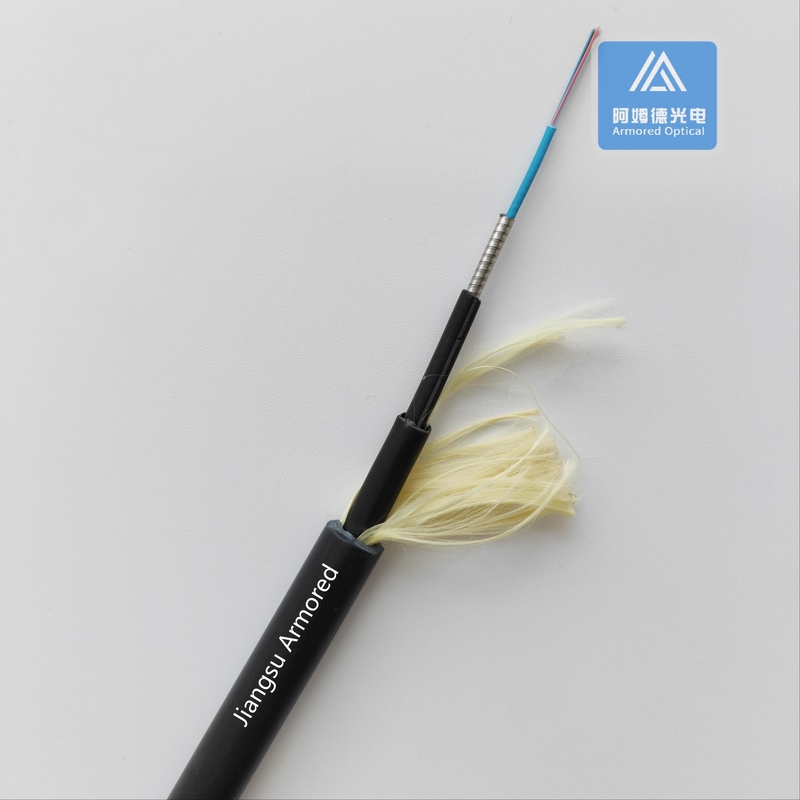

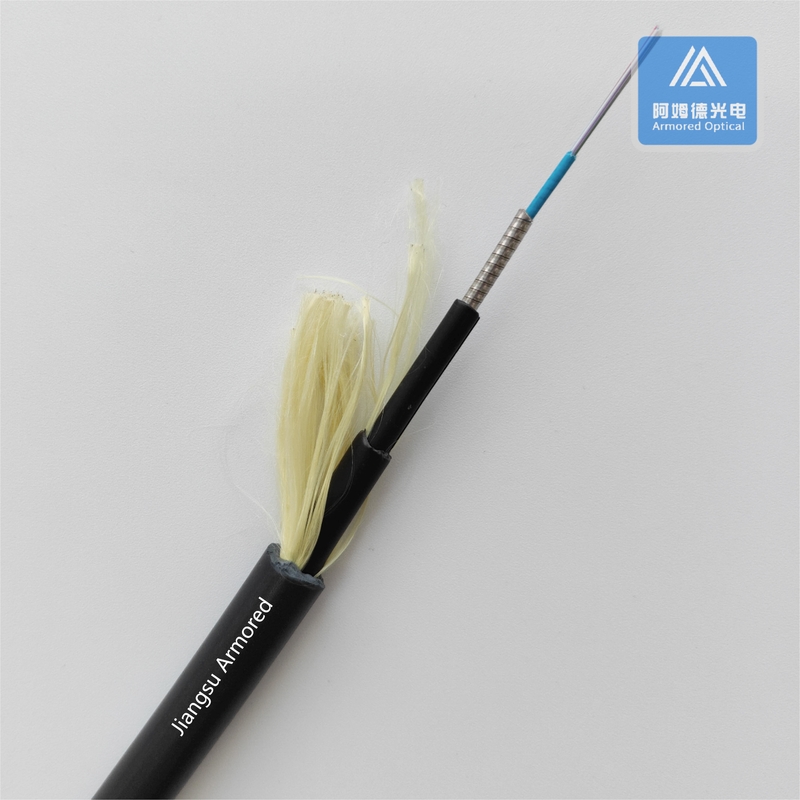

12 Cores SM Spiral Armored Fiber Cable 10.5mm Black TPU Rodent Resistant FTTH
12 Cores 10.5mm Spiral Micro Armored Fiber Cable, Black TPU Jacket, FTTH, Rodent Resistant
Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Armored Fiber Optical Cable, 4 layers Jacket
With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.
Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.
Item | Unit | Dimension | Remark |
Tight Fiber | mm | 0.25±0.05 | 12 pcs |
Inner Jacket OD | mm | 1.3 ± 0.1 | LSZH |
Spiral Armored Tube OD |
mm | 2.5 ± 0.1 | Stainless Steel |
Outer Jacket | mm | 10.5 ± 0.5 | Black TPU |
Attenuation (Max.) | dB/km |
0.4dB/km@1310nm, 0.3dB/km@1550nm |
|
Temperature | ℃ | -40℃~+90℃ | |
Bend Radius | mm | Dynamic 20D, Static 10D | |
Tensile (Max.) | 400N | ||
Crush | N/10cm | Static 1000, Dynamic 3000 |
