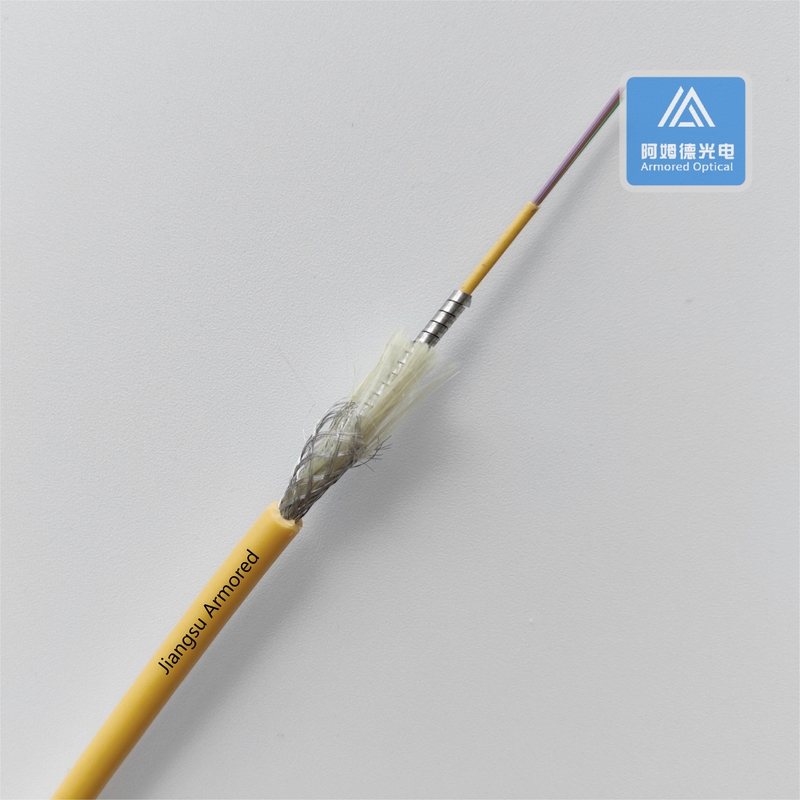

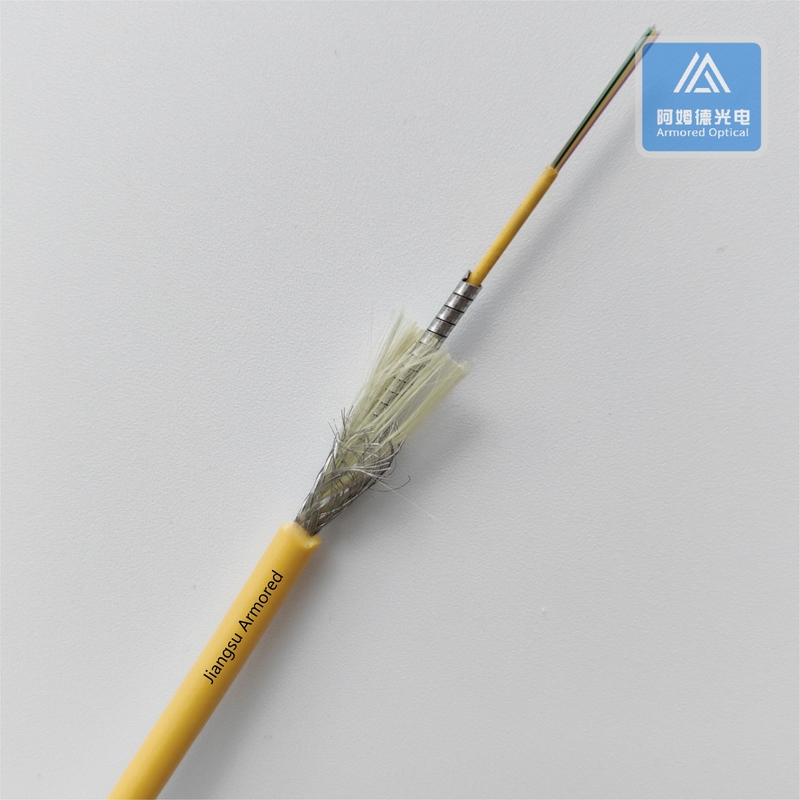

12 Cores SM Spiral Armored Fiber Cable 3.3mm Orange PVC Rodent Resistant FTTH Micro Armored Fiber Cable
12 Cores SM Spiral Armored Fiber Cable 3.3mm Orange PVC Rodent Resistant FTTH Micro Armored Fiber Cable
Spiral Armored Fiber Cable, Ruggedized Fiber Optical Cable, Double Jacket Fiber Cable
With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.
Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.
Item | Unit | Dimension | Remark |
Tight Fiber | mm | 0.25±0.05 | 12 pcs |
Inner Jacket OD | mm | 1.3 ± 0.1 | PVC |
Spiral Armored Tube OD |
mm | 2.1 ± 0.1 | Stainless Steel |
Outer Jacket | mm | 3.3 ± 0.2 | Orange PVC |
Attenuation (Max.) | dB/km |
0.4dB/km@1310nm, 0.3dB/km@1550nm |
|
Temperature | ℃ | -20℃~+70℃ | |
Bend Radius | mm | Dynamic 20D, Static 10D | |
Tensile (Max.) | 400N | ||
Crush | N/10cm | Static 1000, Dynamic 3000 |
