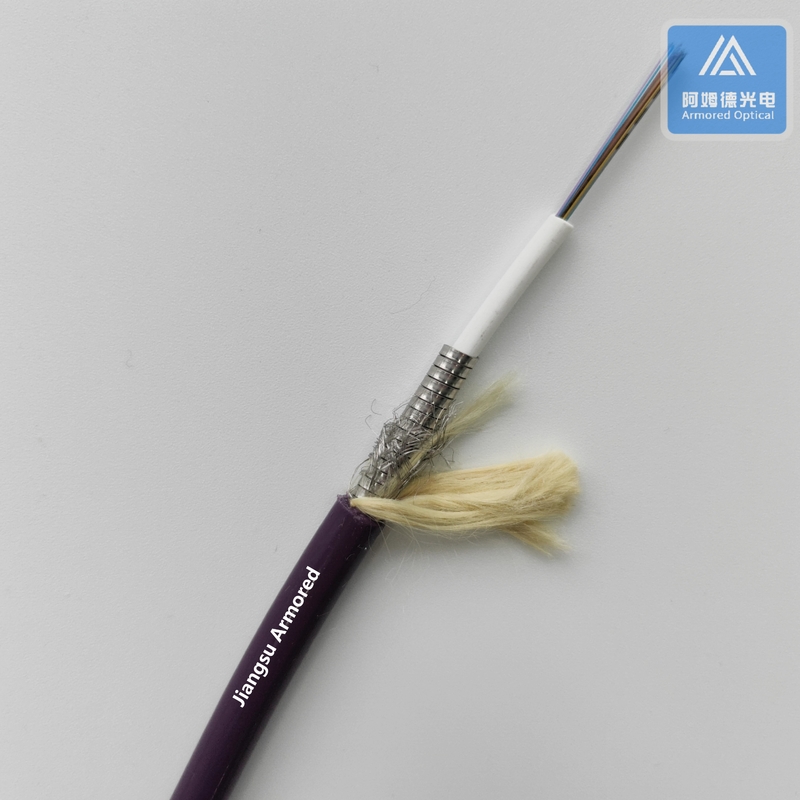

24 Core Armored Multimode Fiber Optic Cable Violet ETFE 7.0mm Rodent Resistant FTTH

24 Core Armored Multimode Fiber Optic Cable Violet ETFE 7.0mm Rodent Resistant FTTH

  • Highlight

    Violet armored multimode fiber optic cable

    ,

    7.0mm armored multimode fiber optic cable

    ,

    FTTH multimode armored fiber optic cable

  • Name
    24 Cores Armored Fiber Cable
  • Fiber Mode
    OM1
  • Fiber OD
    0.25mm Bare Buffer
  • Fiber Color
    Blue, Orange, Green, Brown, Etc.
  • Inner Jacket Material
    LSZH
  • Inner Jacket Color
    White
  • Spiral Armored Tube Material
    Stainless Steel
  • Outer Jacket
    Violet ETFE
  • Outer Diameter
    7.0 Mm
  • Feature
    Rodent Resistant
  • Flame Rating
    IEC60332-1-2
  • Spiral Armored Tube OD
    OD4.7mm
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    24F-OM1-ETFE-7.0-Violet
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    Plywood Drum and Pallet. By Sea or Air shipment
  • Delivery Time
    2 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    10km per Day

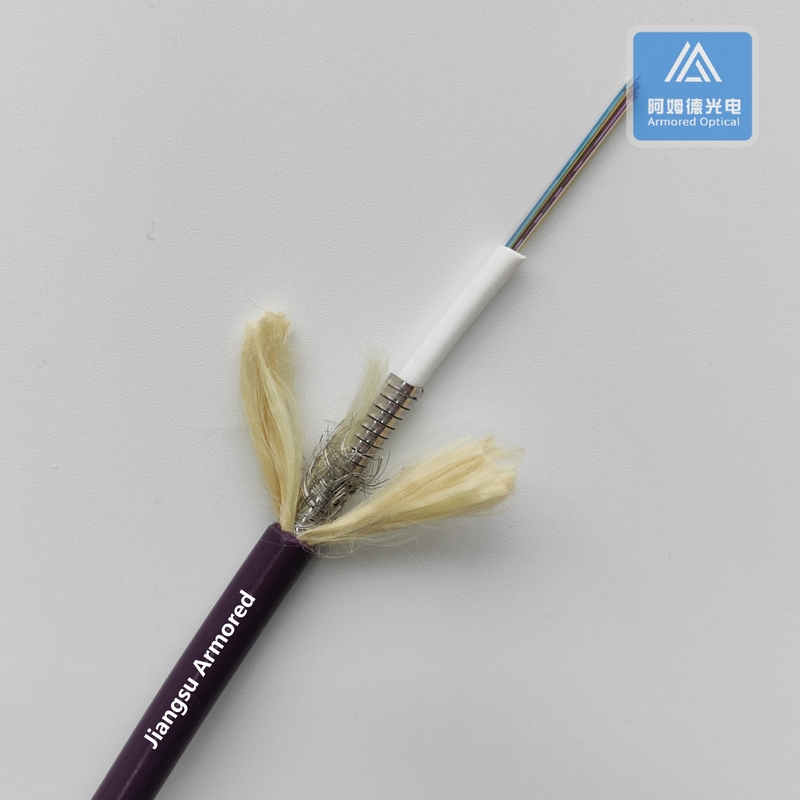

24 Core Armored Multimode Fiber Optic Cable Violet ETFE 7.0mm Rodent Resistant FTTH

24 Cores Multi Mode Spiral Armored Fiber Cable 7.0mm Violet ETFE Rodent Resistant FTTH

Micro Armored Fiber Cable, Spiral Armored Fiber Cable, Double Jacket Armored Fiber Cable,

Double Armored Optical Fiber Cable



With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites. Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious.



Item Unit Dimension Remark
Optical fiber mm 0.25±0.05 24 pcs
Spiral Armored Tube OD mm 4.7 ±0.1 Stainless Steel
Aramid Yarn Detx. 1000D //
Outer Jacket mm 7.0 ±0.3 ETFE
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

MM: 3.5dB/km@850nm, 1.5dB/km@1300nm

Temperature -40℃~+150℃
Bend radius mm Dynamic 20D, Static 10D
Tensile N Max. 500
Crush N/10cm Long-term 1000, short-term 3000


24 Core Armored Multimode Fiber Optic Cable Violet ETFE 7.0mm Rodent Resistant FTTH 0





Feature

  • Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
  • Spiral armored fiber cable has greater durability in resisting pulls, strains and impacts from cabling installation.
  • Different jacket material fit for different environments.
  • UV-resistant



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, IEC60332, etc.
